Home >> Chrysler >> 2003 >> Sebring Convertible L4-2.4L VIN X >> Repair and Diagnosis >> Diagrams >> Connector Views >> Daytime Running Lamp Control Unit

Daytime Running Lamp Control Unit

8w-12-2:




8w-12-3:

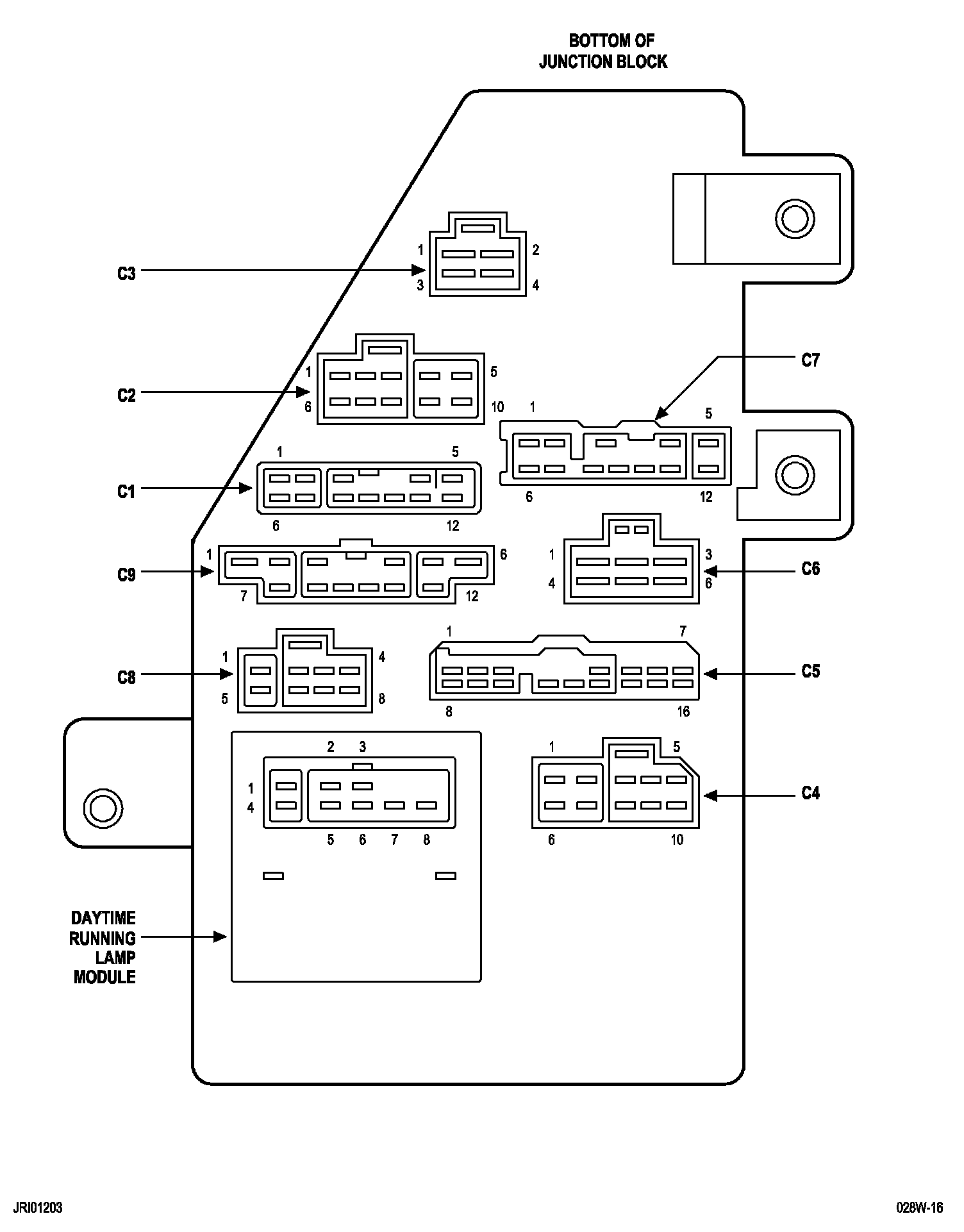

Daytime Running Lamp Module:
