Ignition Switch: Locations

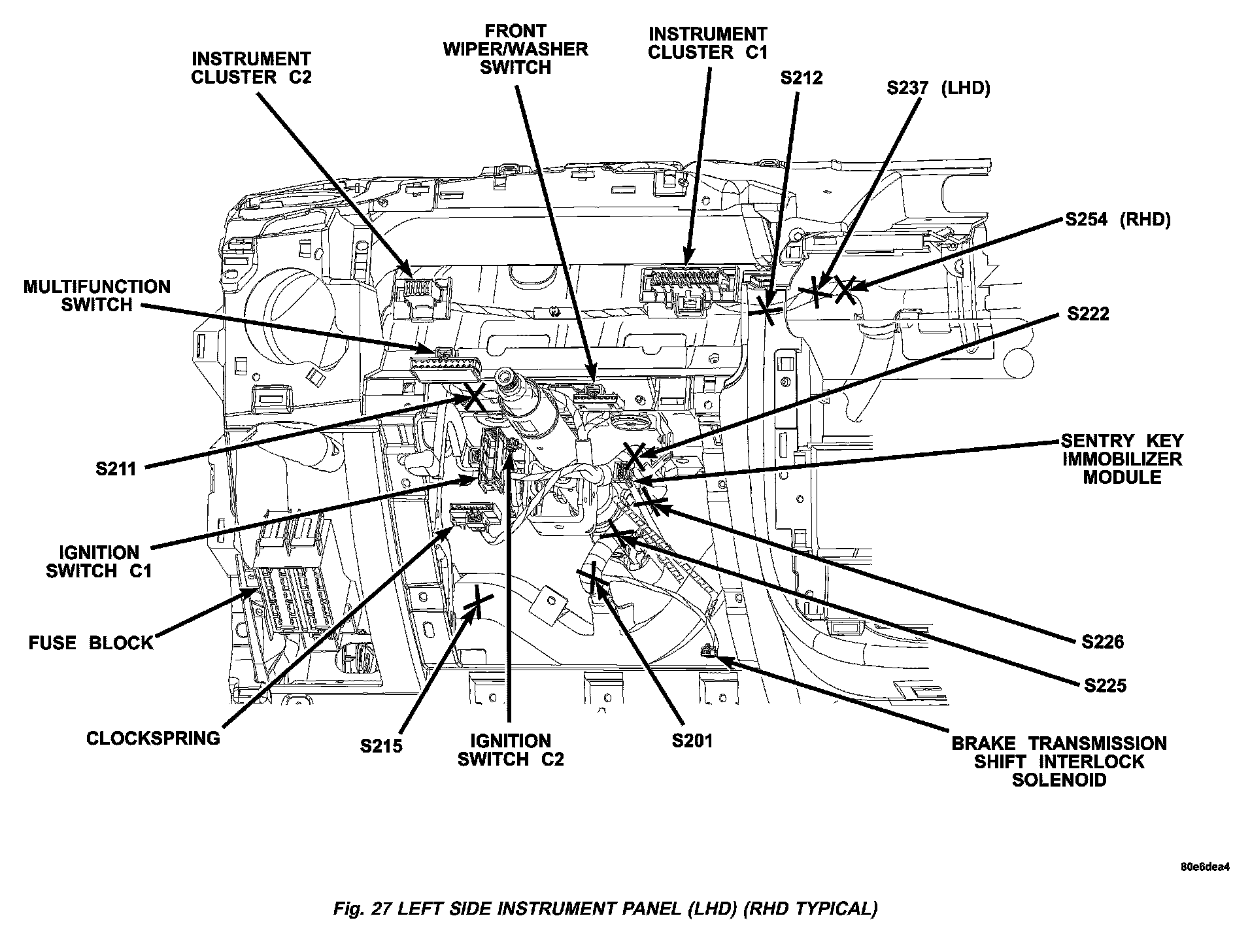

Fig. 27 Left Side Instrument Panel (LHD) (RHD Typical):

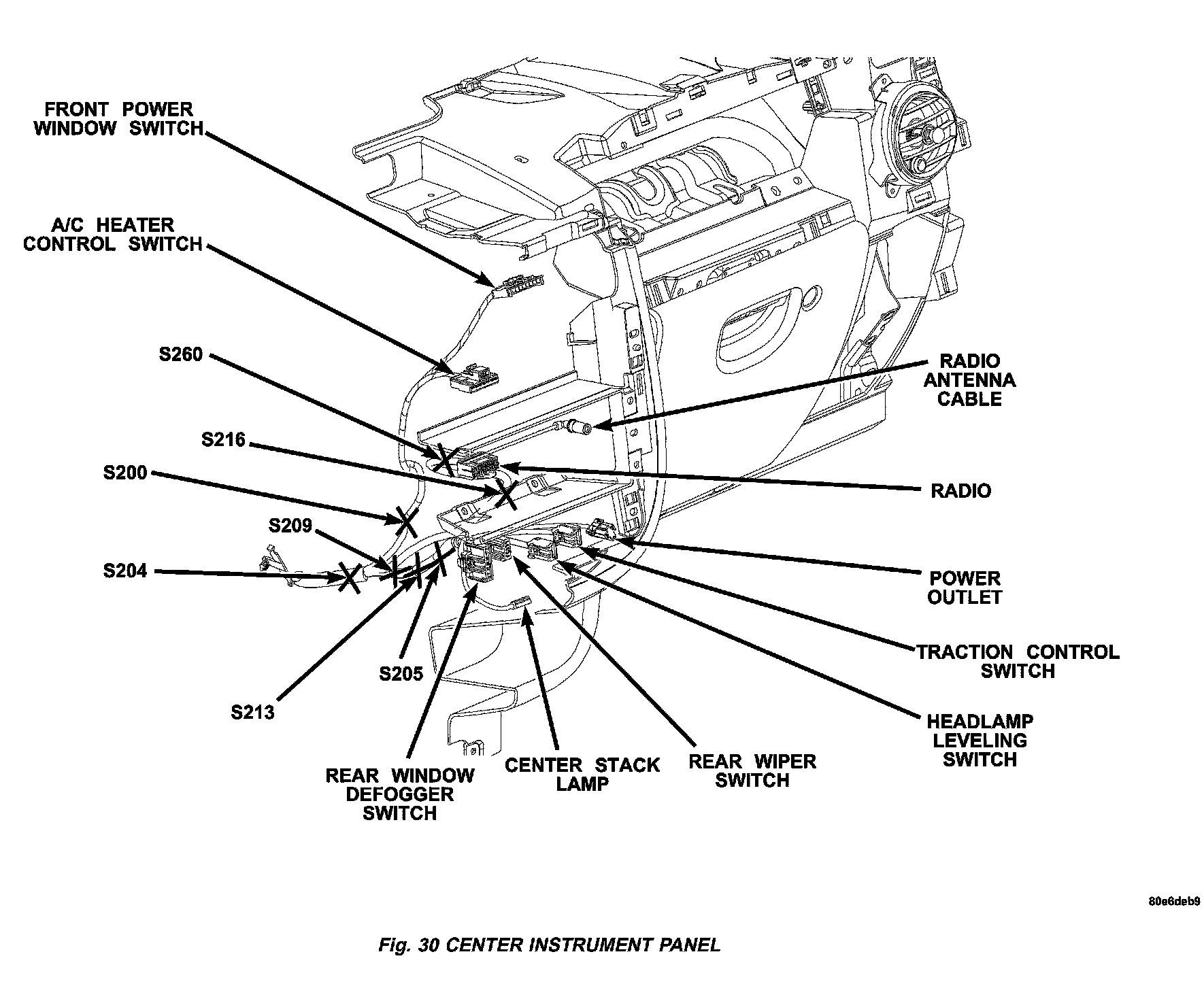

Center Instrument Panel:
