Any PCI Bus Indicator Inoperative

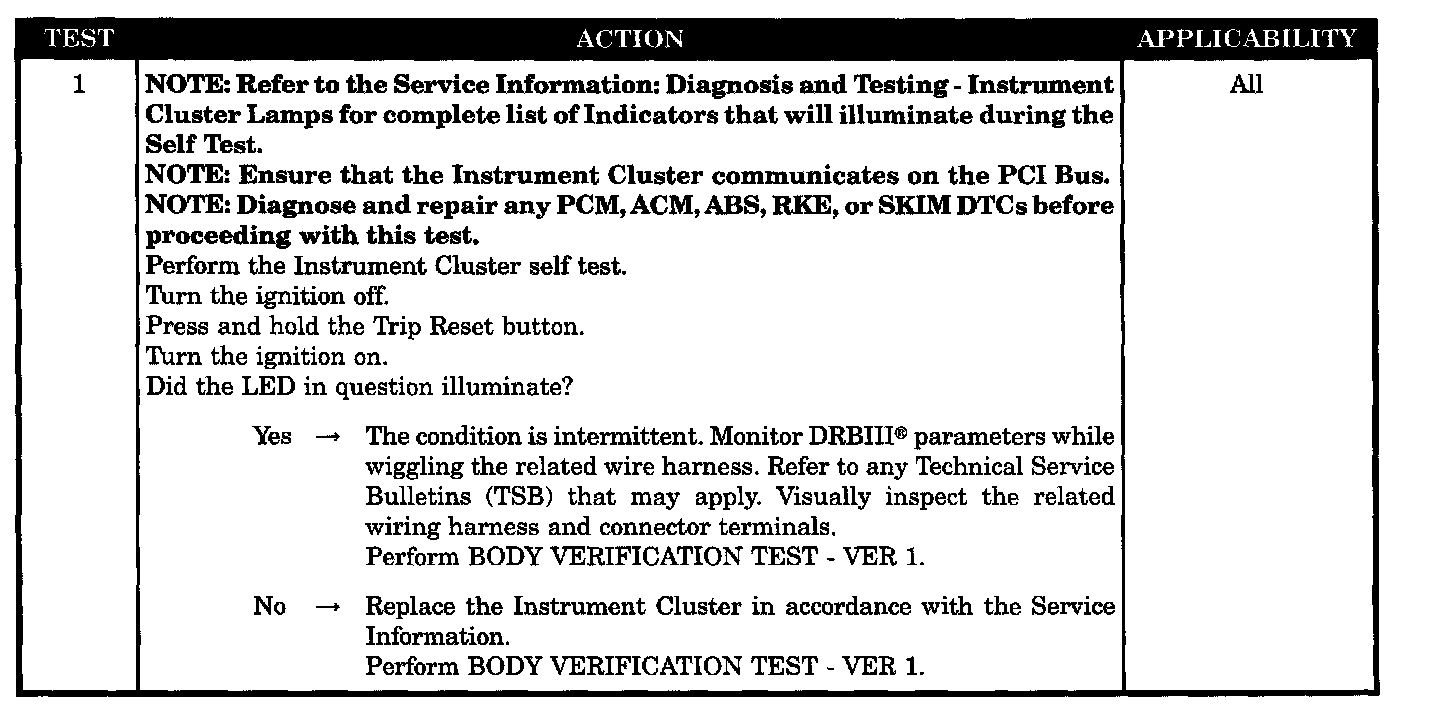

Test 1:
SYMPTOM
ANY PCI BUS INDICATOR INOPERATIVE
POSSIBLE CAUSES
-
Intermittent condition
-
Instrument cluster
