PT Cruiser L4-2.4L VIN B
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>

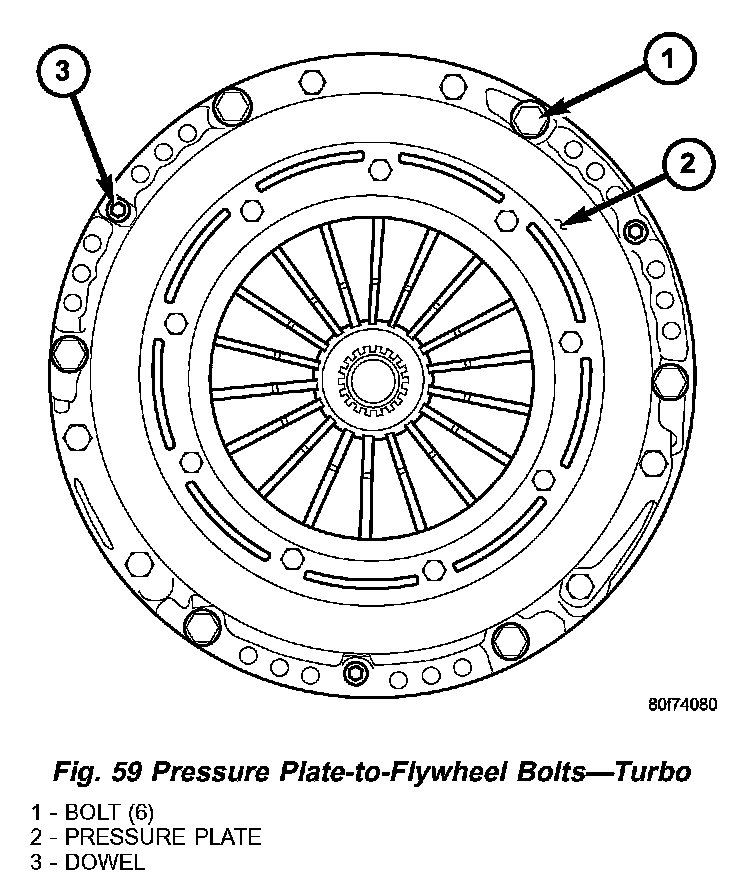

Pressure Plate
Pressure Plate

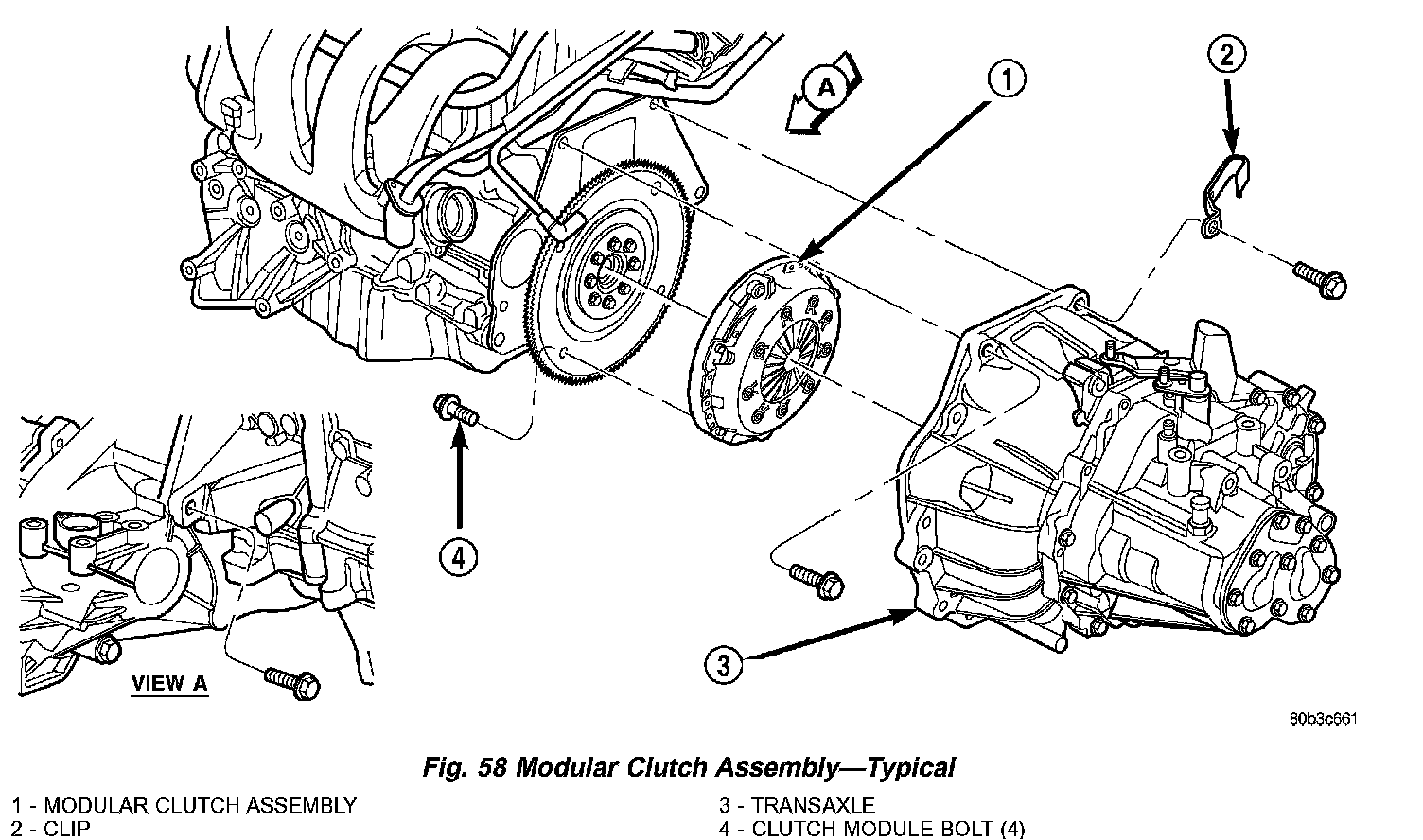

Modular Clutch Assembly:
