Manual A/C Control Head Switch Inoperative
Manual A/C Control Head Switch Inoperative

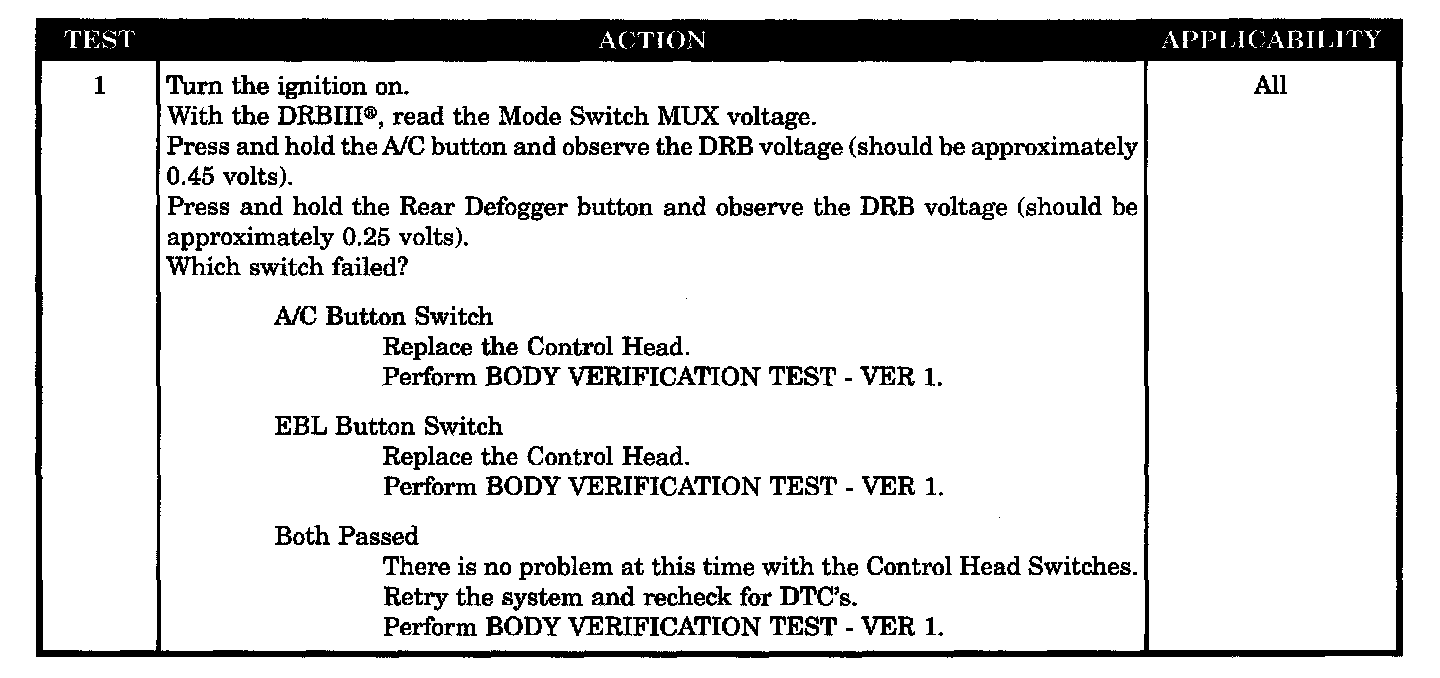

Test 1:
SYMPTOM
MANUAL A/C CONTROL HEAD SWITCH INOPERATIVE
POSSIBLE CAUSES
-
Control head - open switch
-
Control head switches okay
