Home >> Chrysler >> 2002 >> Voyager L4-2.4L VIN B >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Locations >> Integrated Power Module Rear

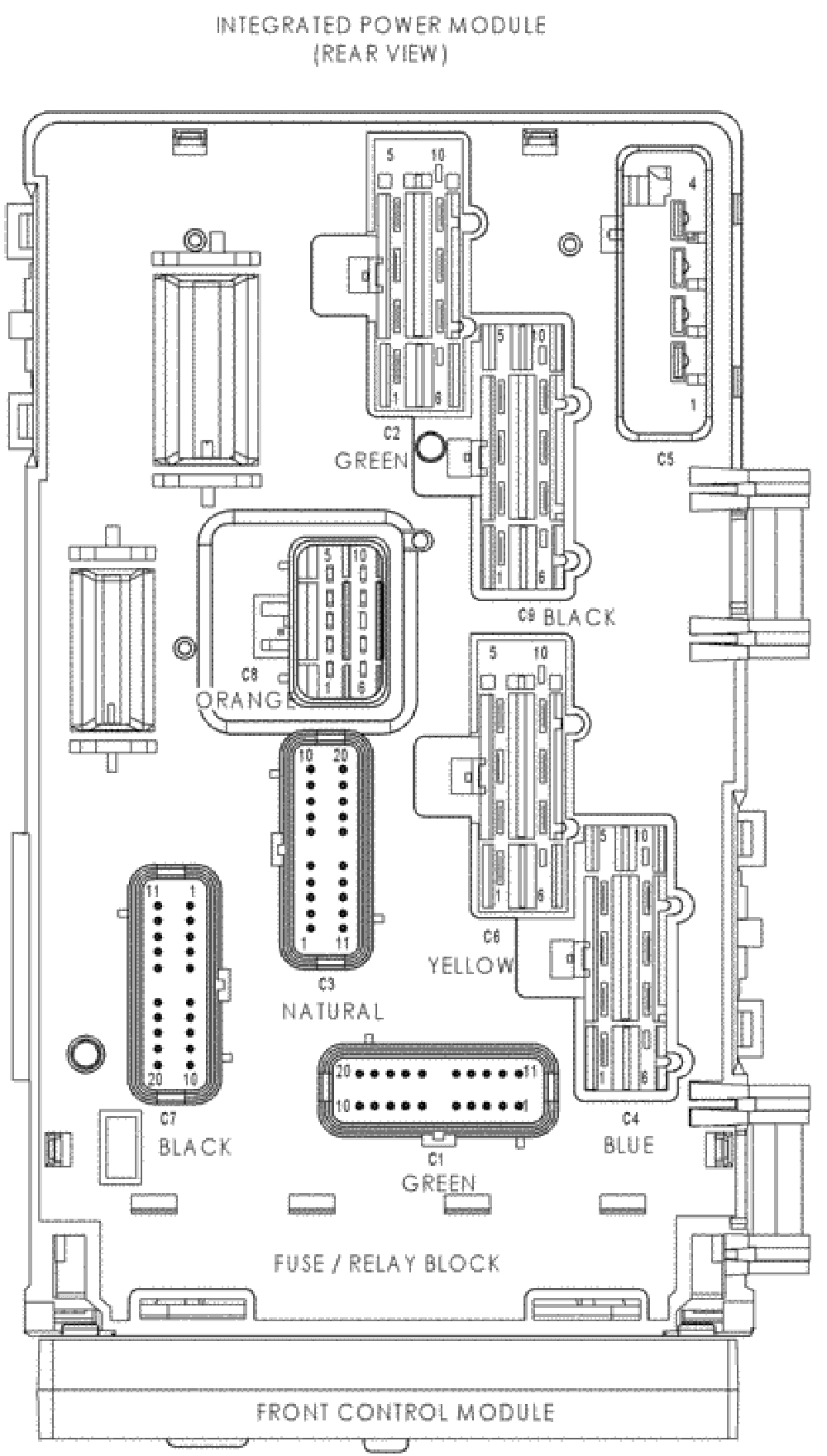

Integrated Power Module Rear
