Power Window Switch

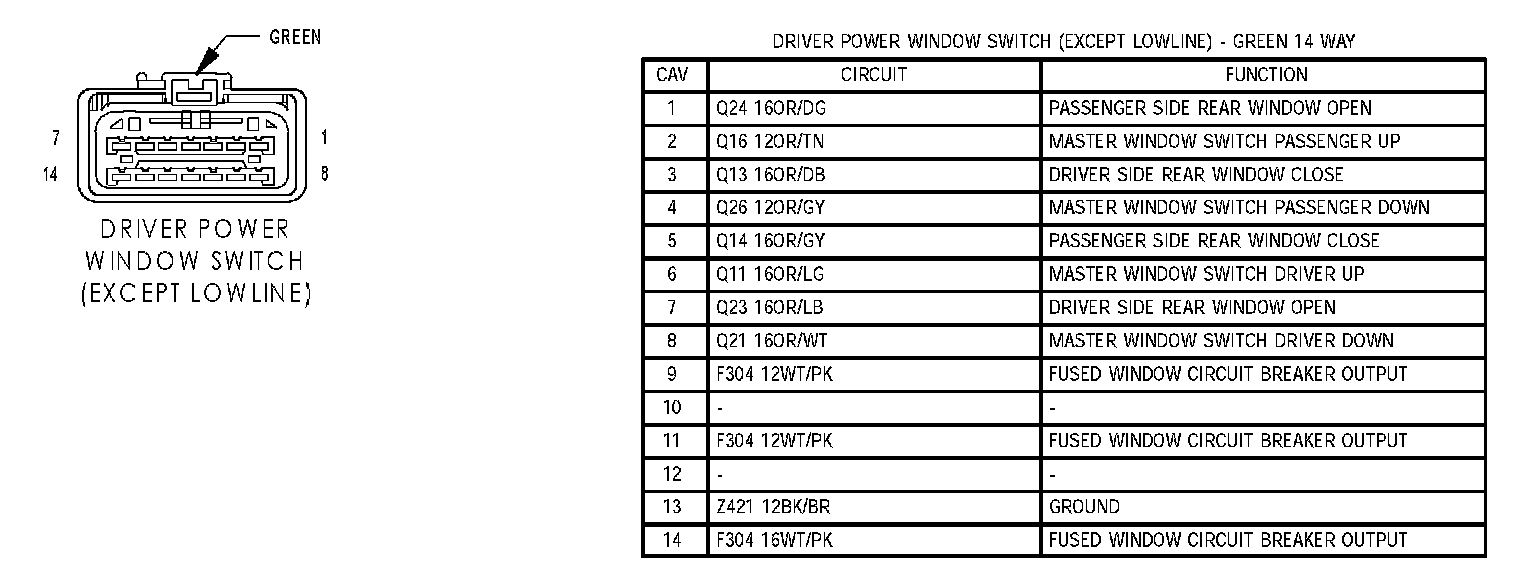

Driver Power Window Switch (Except Lowline):

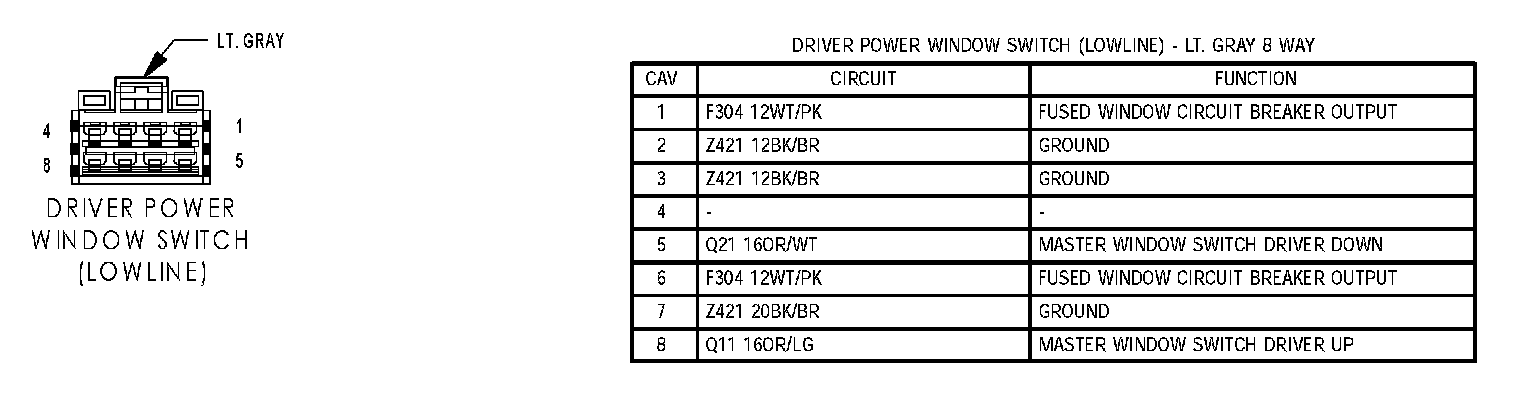

Driver Power Window Switch (Lowline):

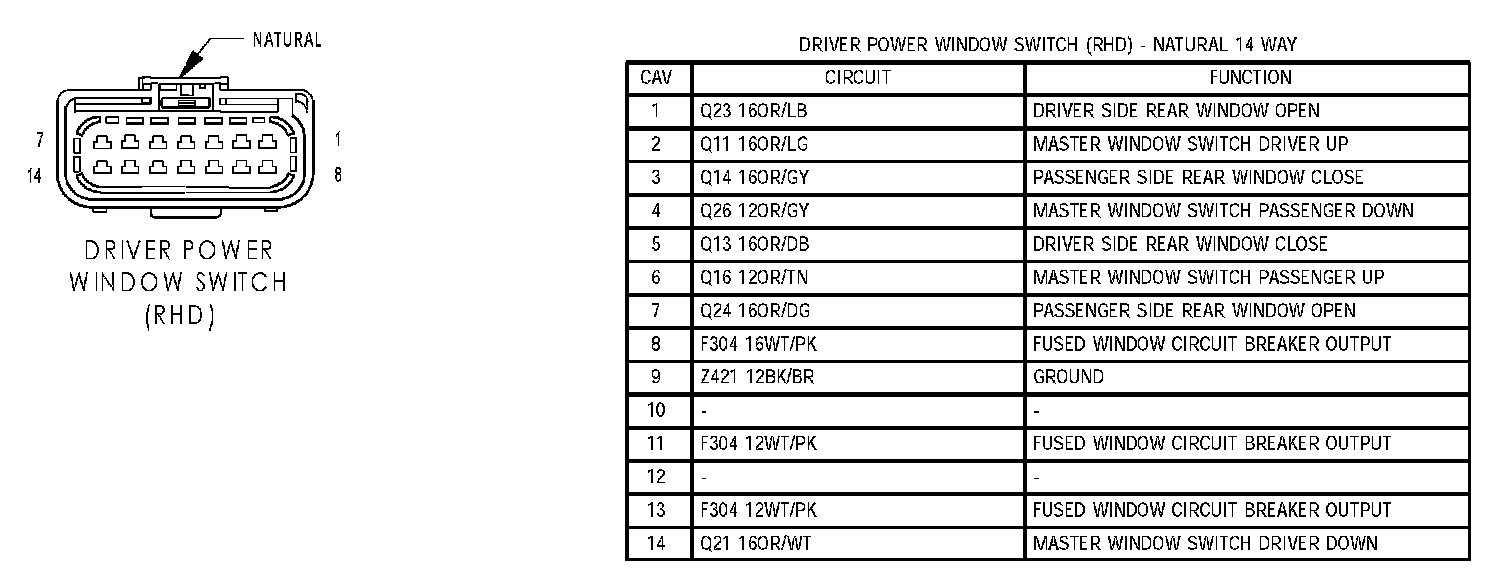

Driver Power Window Switch (RHD):

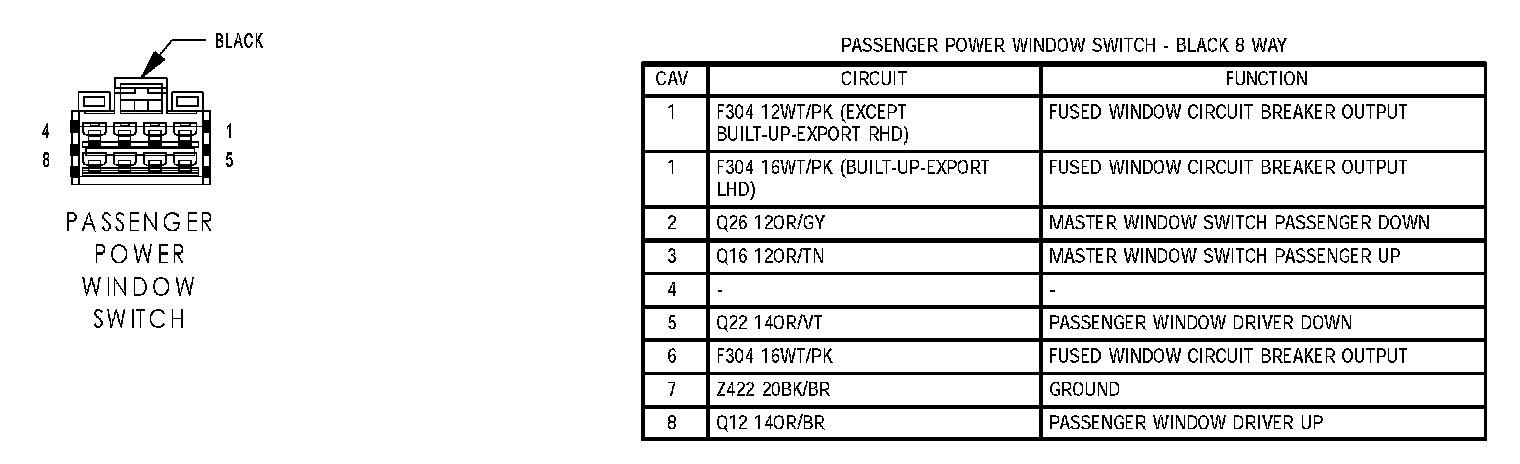

Passenger Power Window Switch:

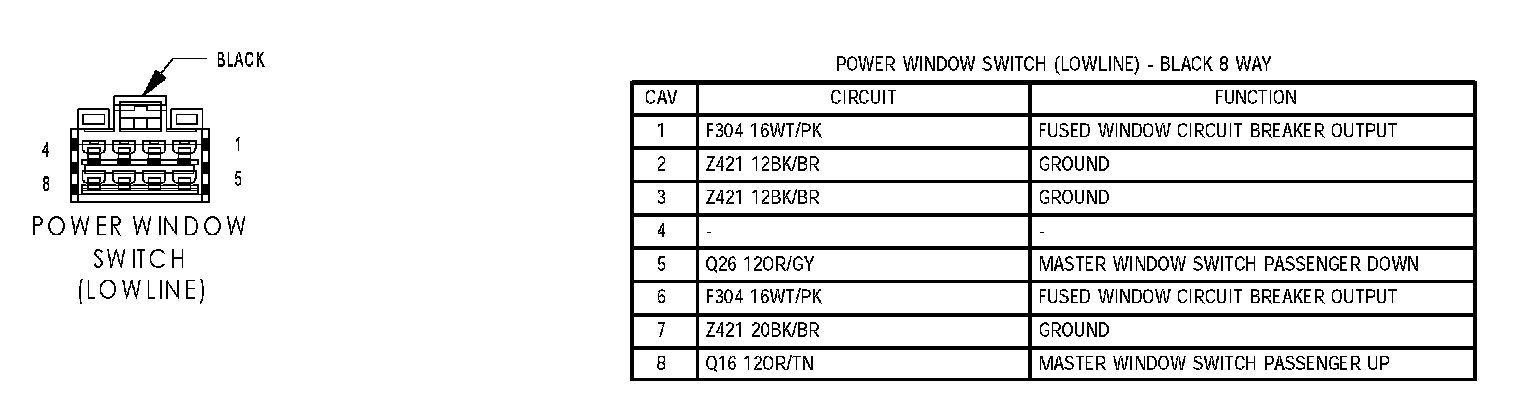

Power Window Switch (Lowline):
