System Specifications

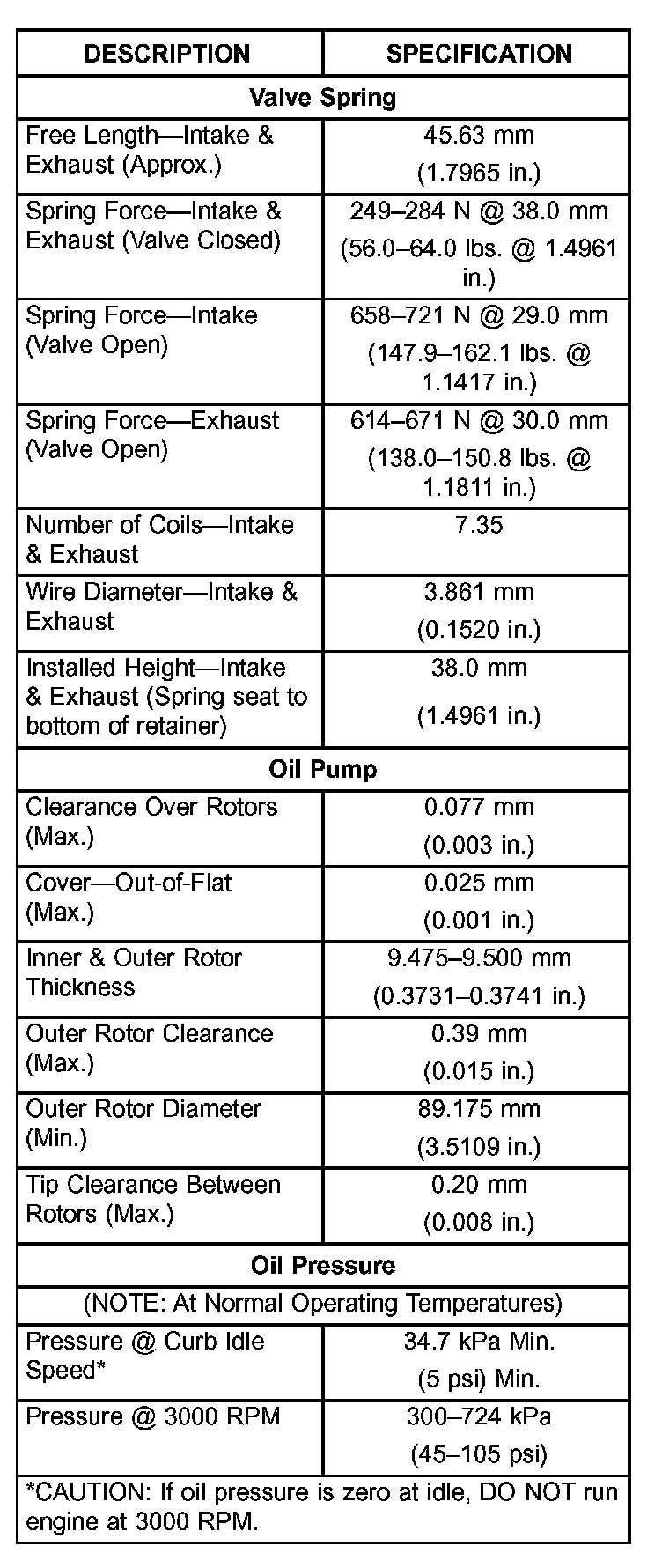

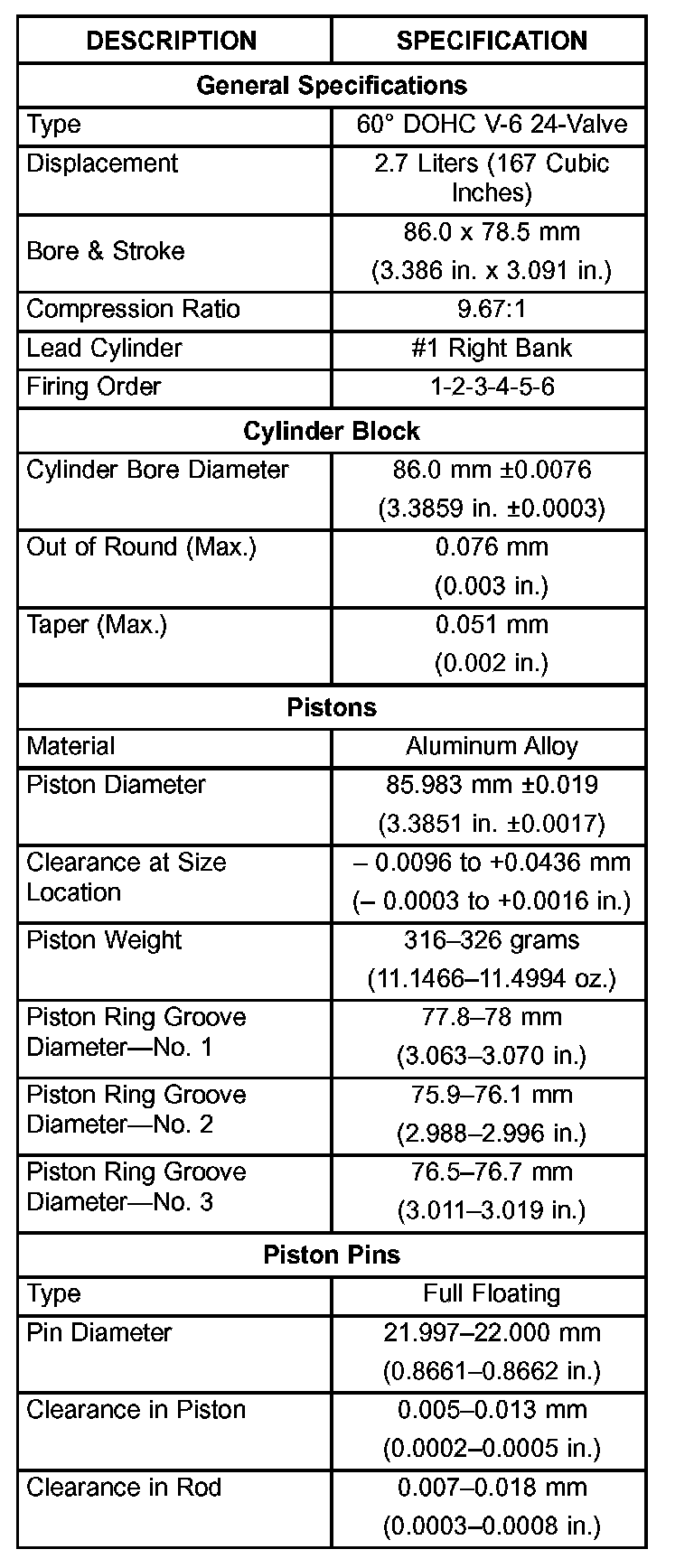

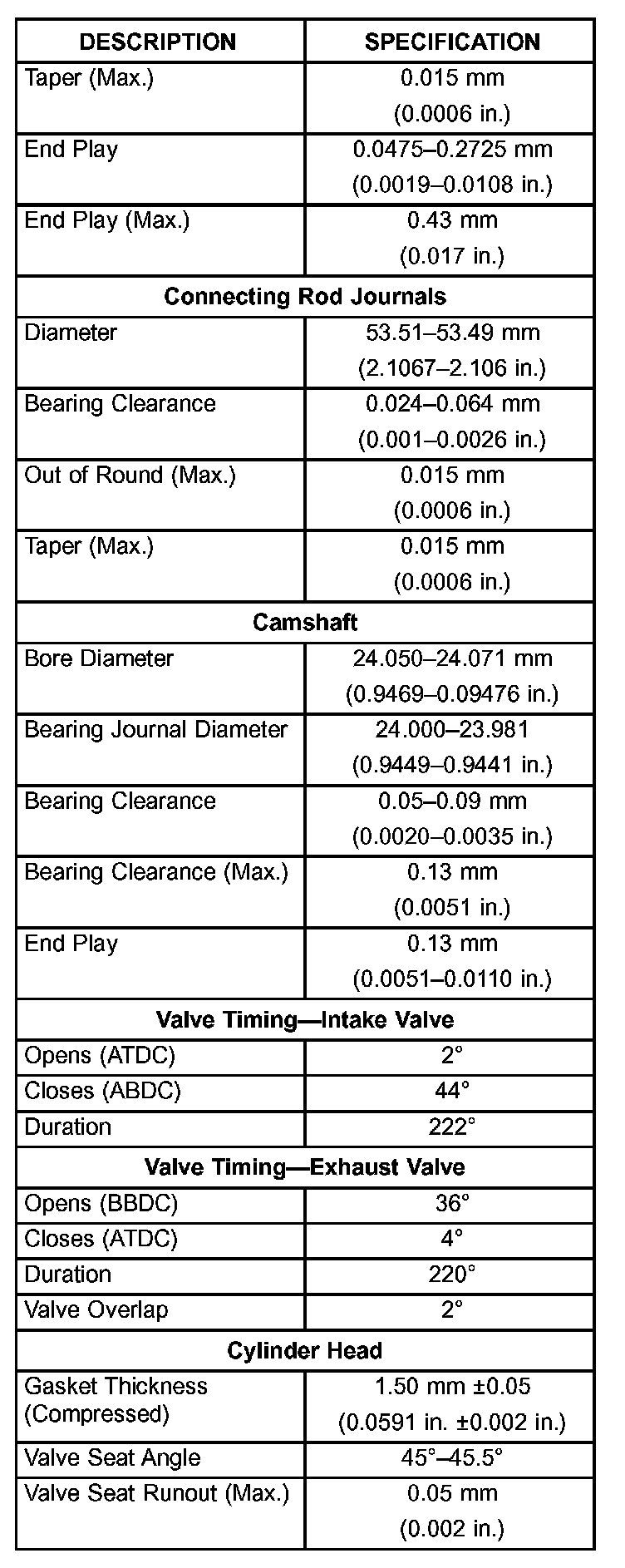

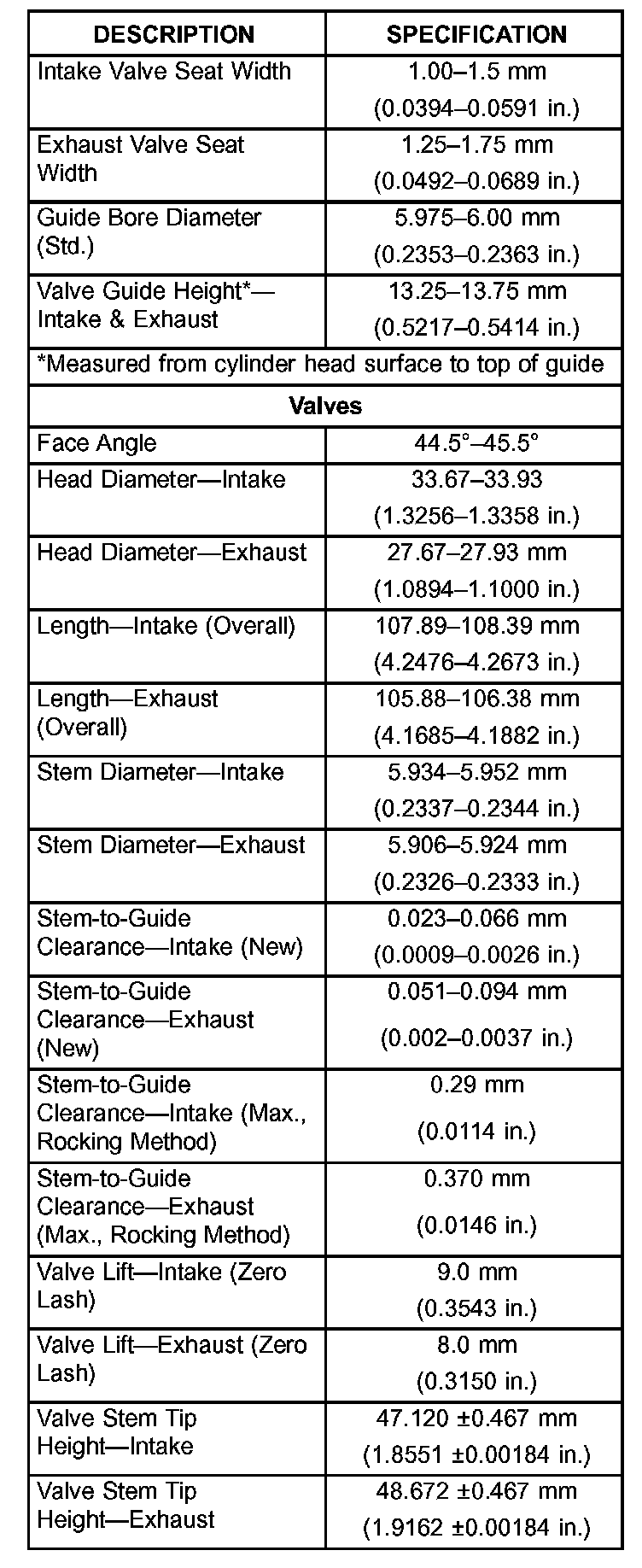

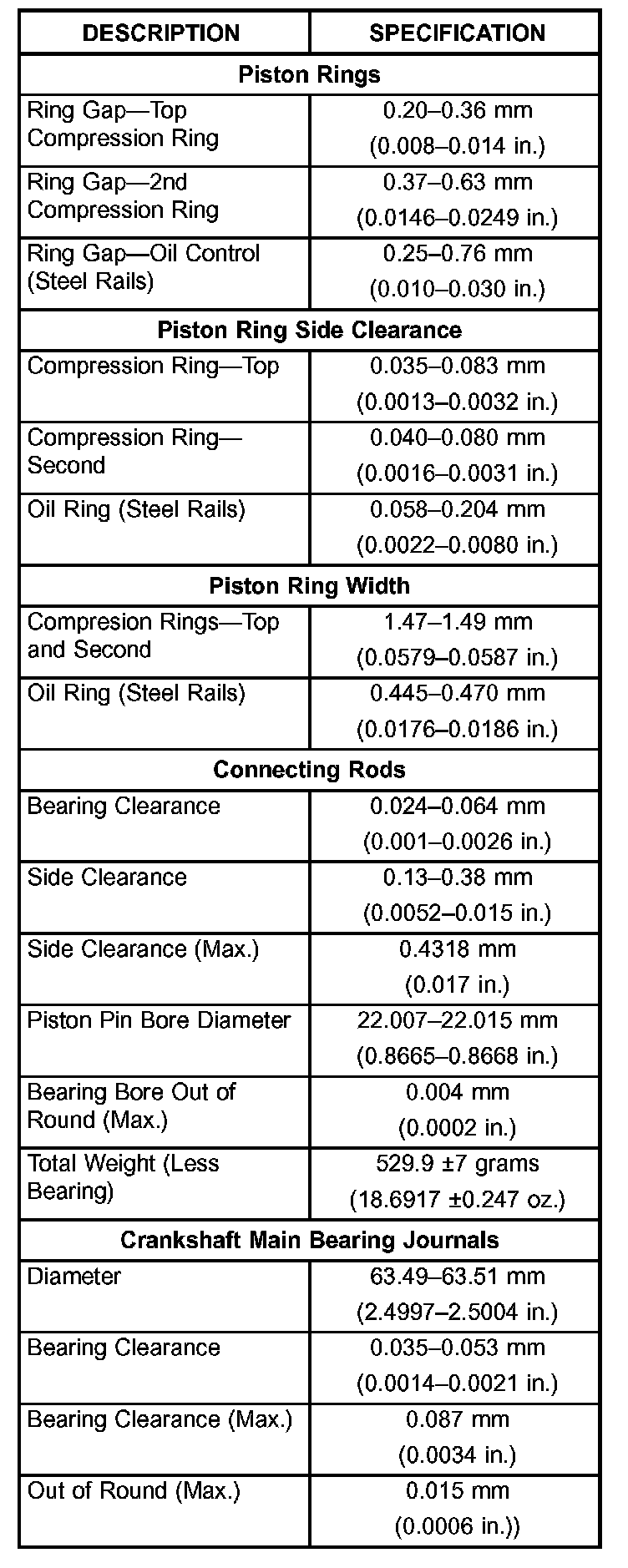

Engine Specifications





Part 1 of 5





Part 2 of 5





Part 3 of 5





Part 4 of 5





Part 5 of 5

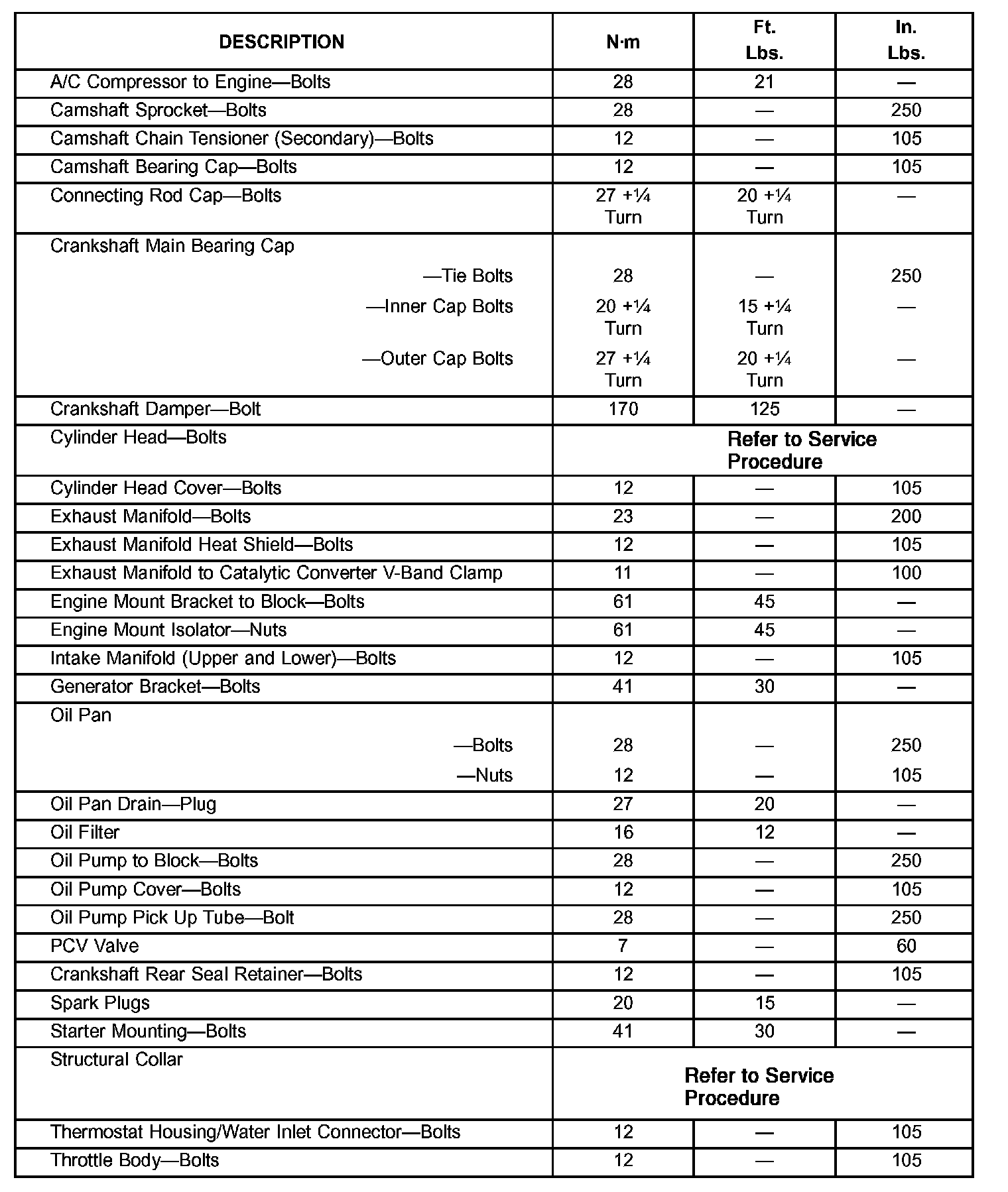

Torque Specifications





Part 1 of 2





Part 2 of 2
