Sebring LX Convertible L4-2.4L VIN X
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Control Module
Air Bag Control Module

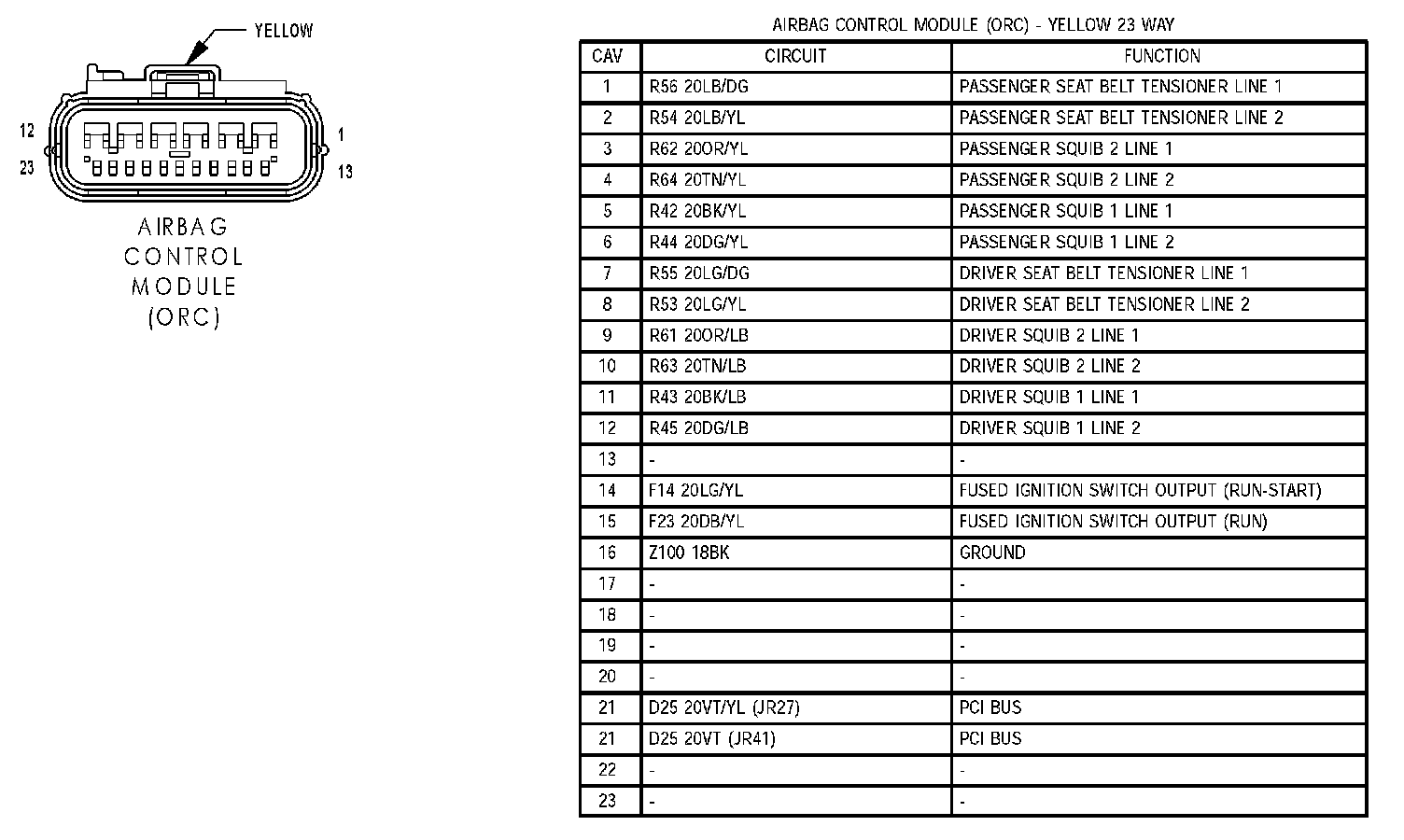

Airbag Control Module (ORC):
Left Side Impact Airbag Control Module (JR41):
Right Side Impact Airbag Control Module (JR41):
