Fuel Pump Module - Black 4 Way

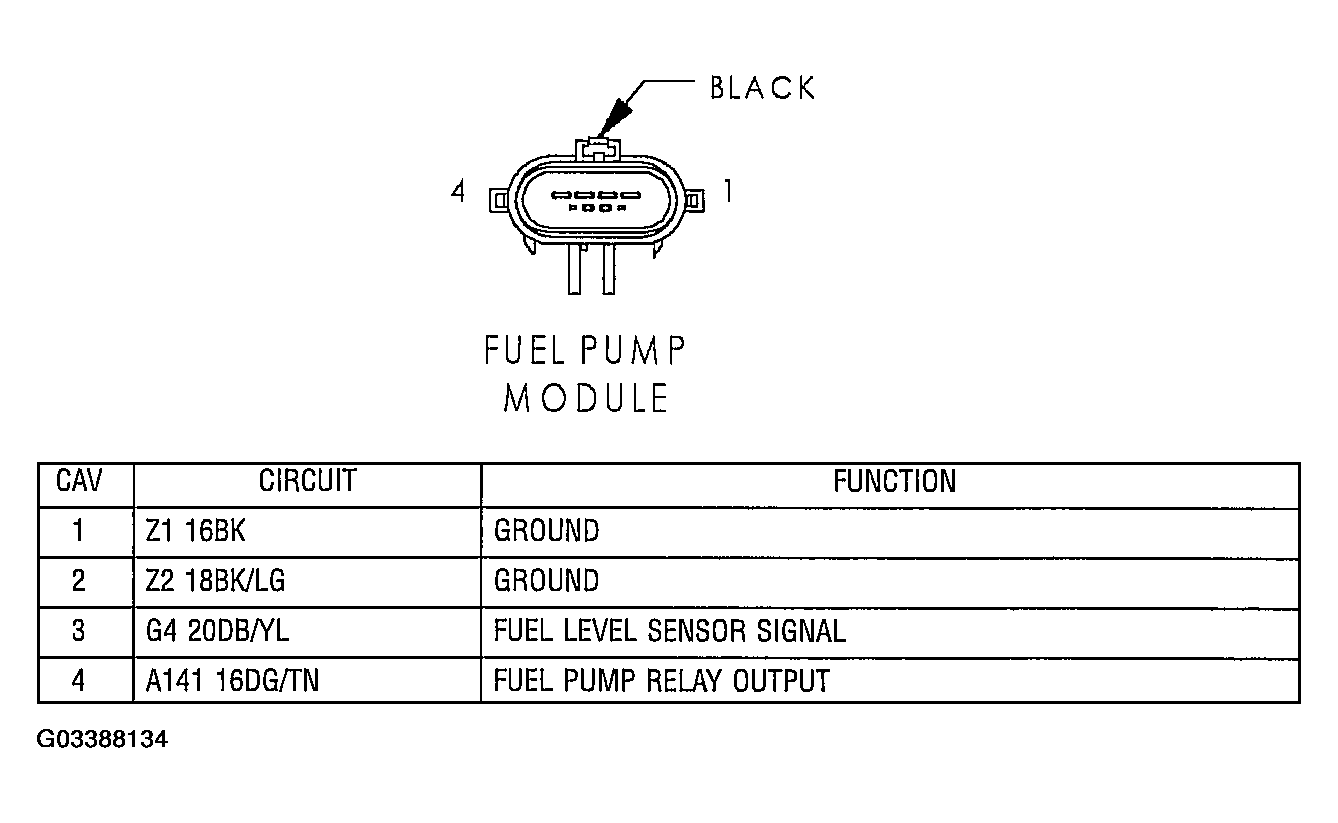

Fig 1: Identifying Fuel Pump Module Connector

G03388134

Courtesy of DAIMLERCHRYSLER CORP.
