Driver Power Window/Door Lock Switch Connector End View Terminals

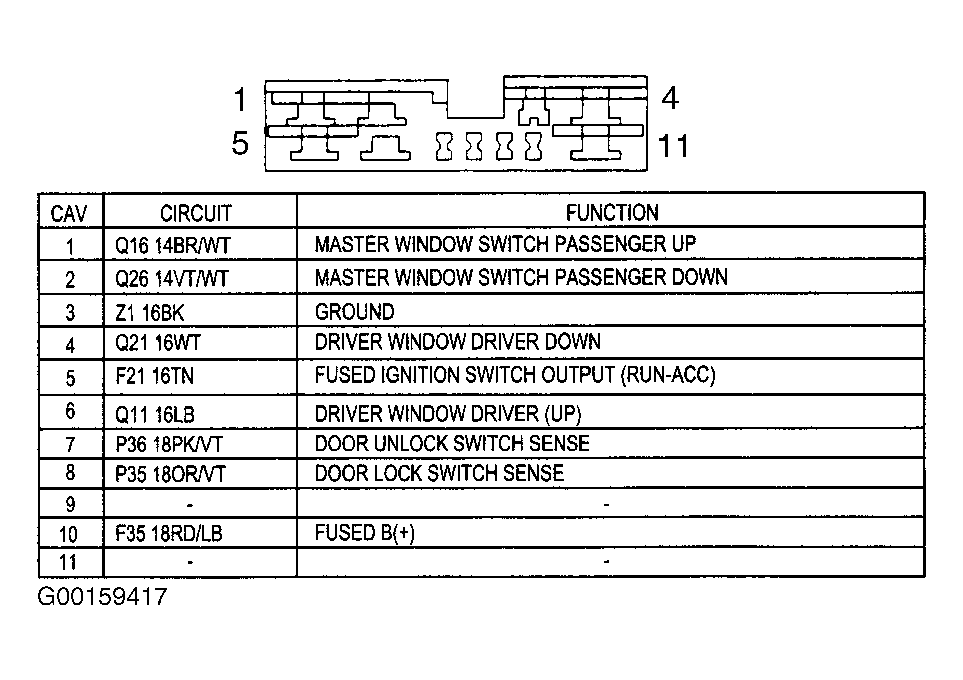

Fig 1: Driver Power Window/Door Lock Switch Connector End View Terminals

G00159417

Courtesy of CHRYSLER GROUP, LLC
