Autostick Switch Connector End View Terminals

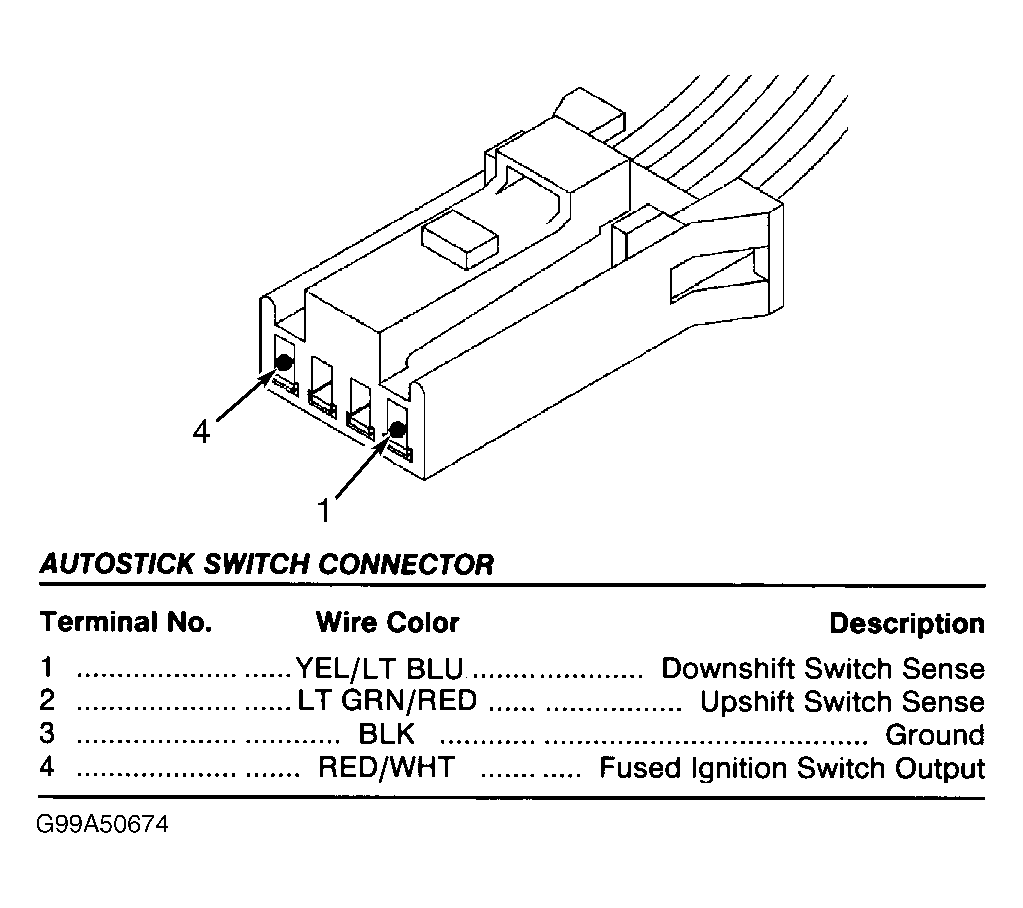

Fig 1: Autostick Switch Connector End View Terminals

G99A50674

Courtesy of CHRYSLER GROUP, LLC
