Air Bag Control Module Connector End View C1

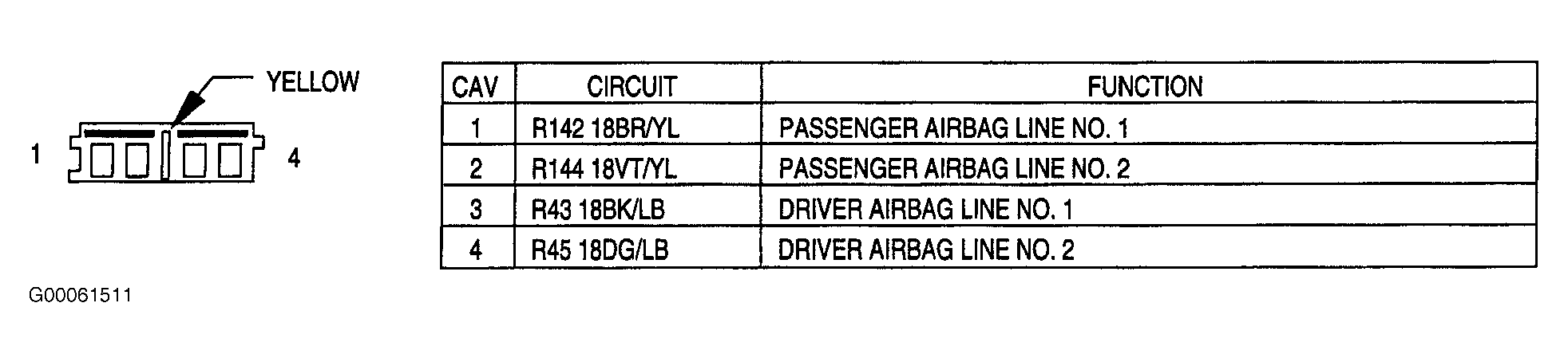

Fig 1: Air Bag Control Module Connector End View C1 Pin-Out 1997 & 1999

G00061511

Courtesy of CHRYSLER GROUP, LLC
