Camshaft Position Sensor: Locations

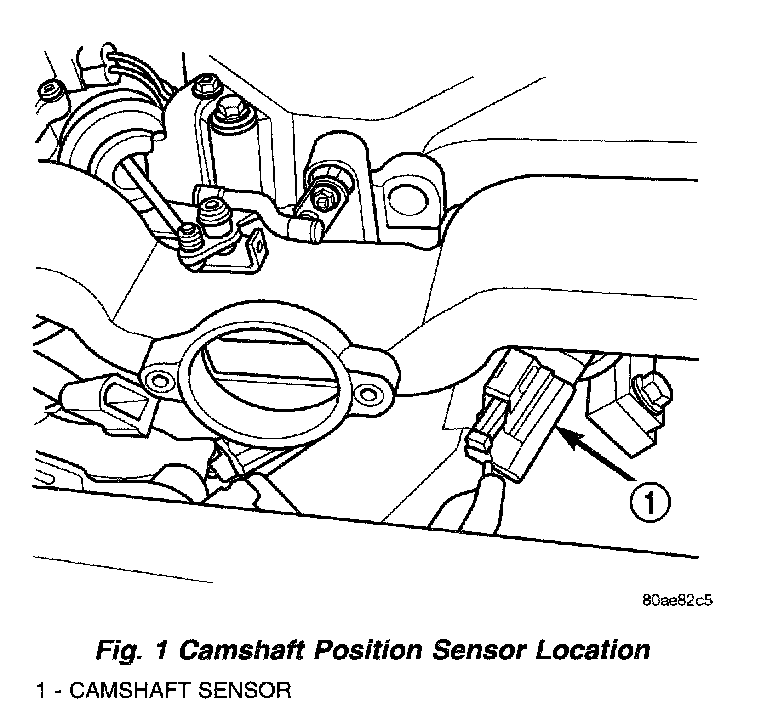

Fig.1 Camshaft Position Sensor Location:

The camshaft position sensor is mounted in the front of the timing case cover .
