Transmission Control System Relay, A/T

Power Distribution Center:

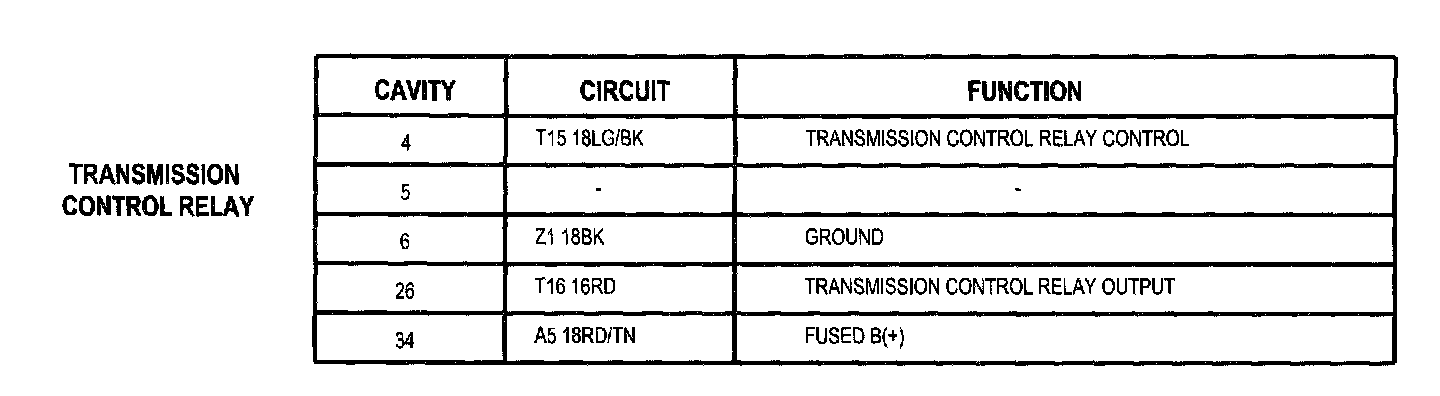

Transmission Control Relay:

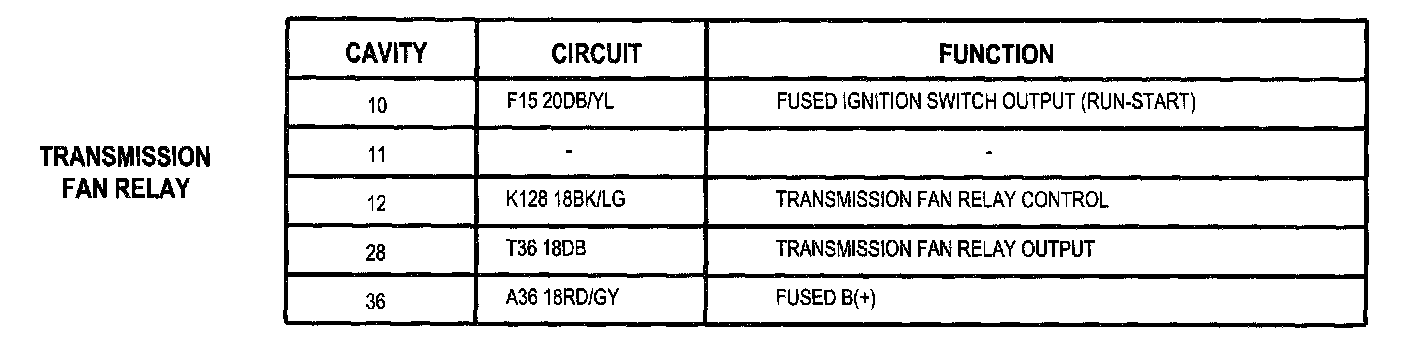

Transmission Fan Relay:
