Prowler V6-3.5L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Impact Sensor
Impact Sensor

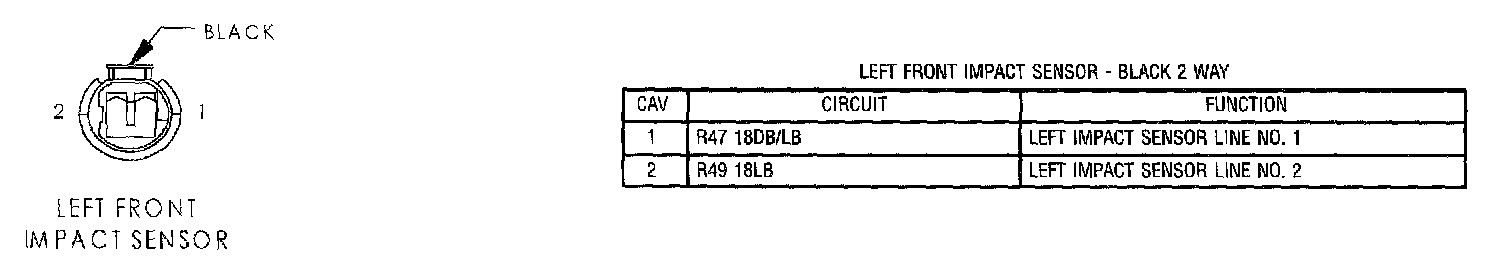

Left Front Impact Sensor:

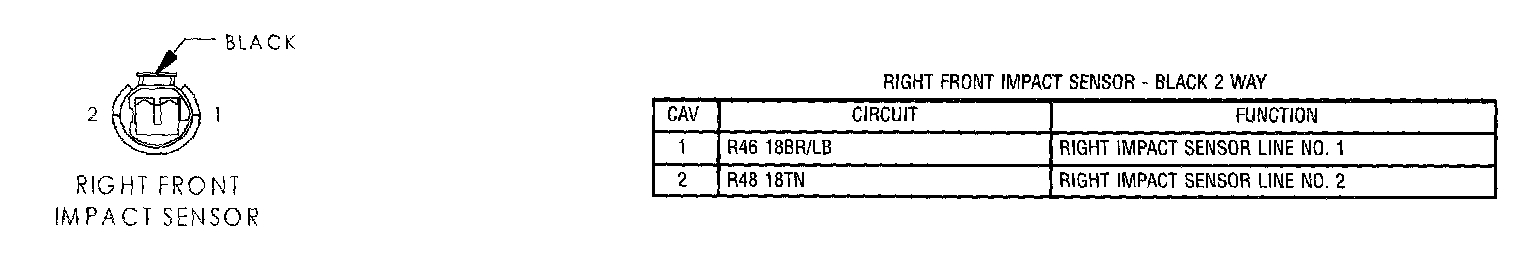

Right Front Impact Sensor:
