Prowler V6-3.5L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse
>>
Fuse Block
Fuse Block

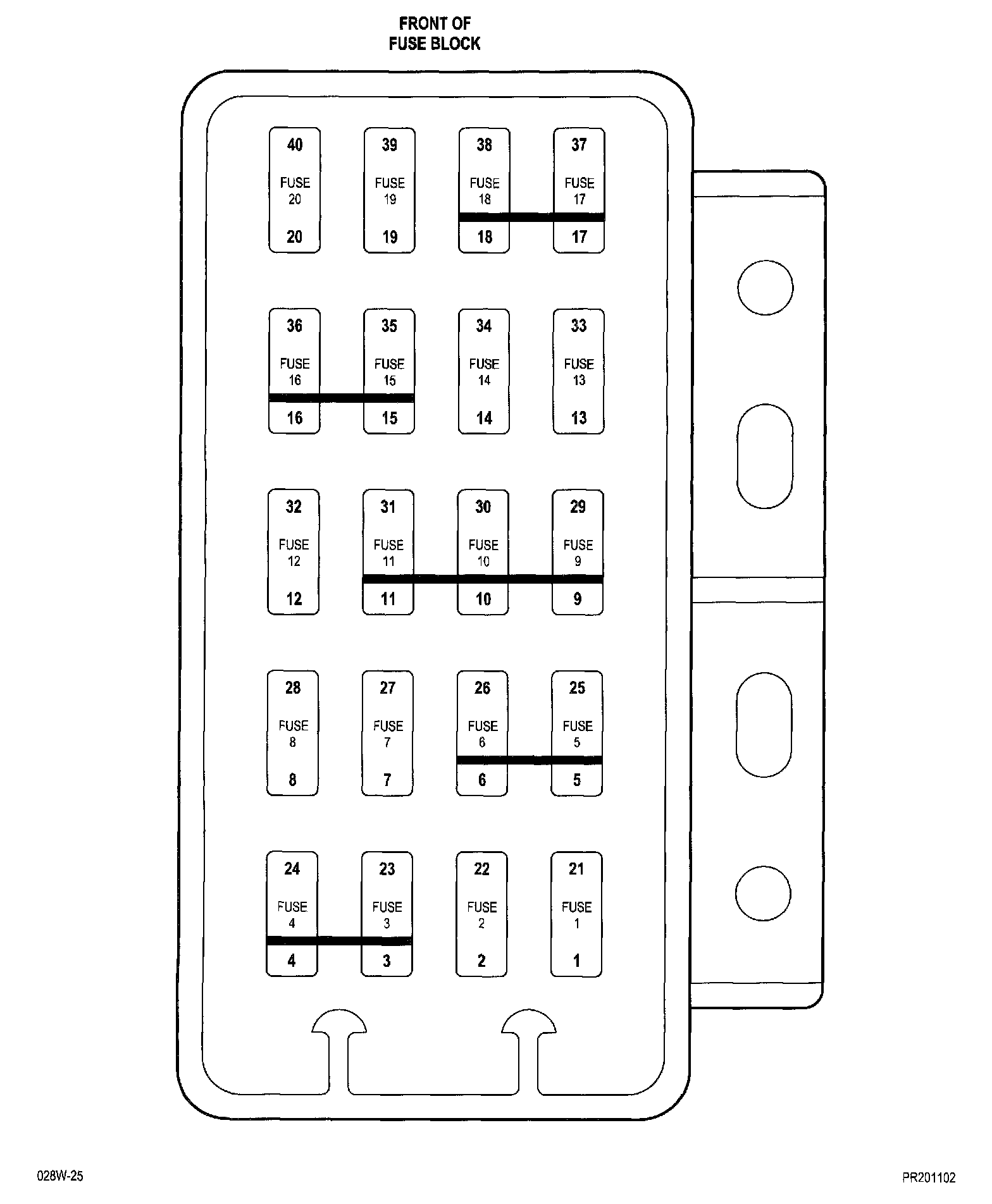

Fuse Block:

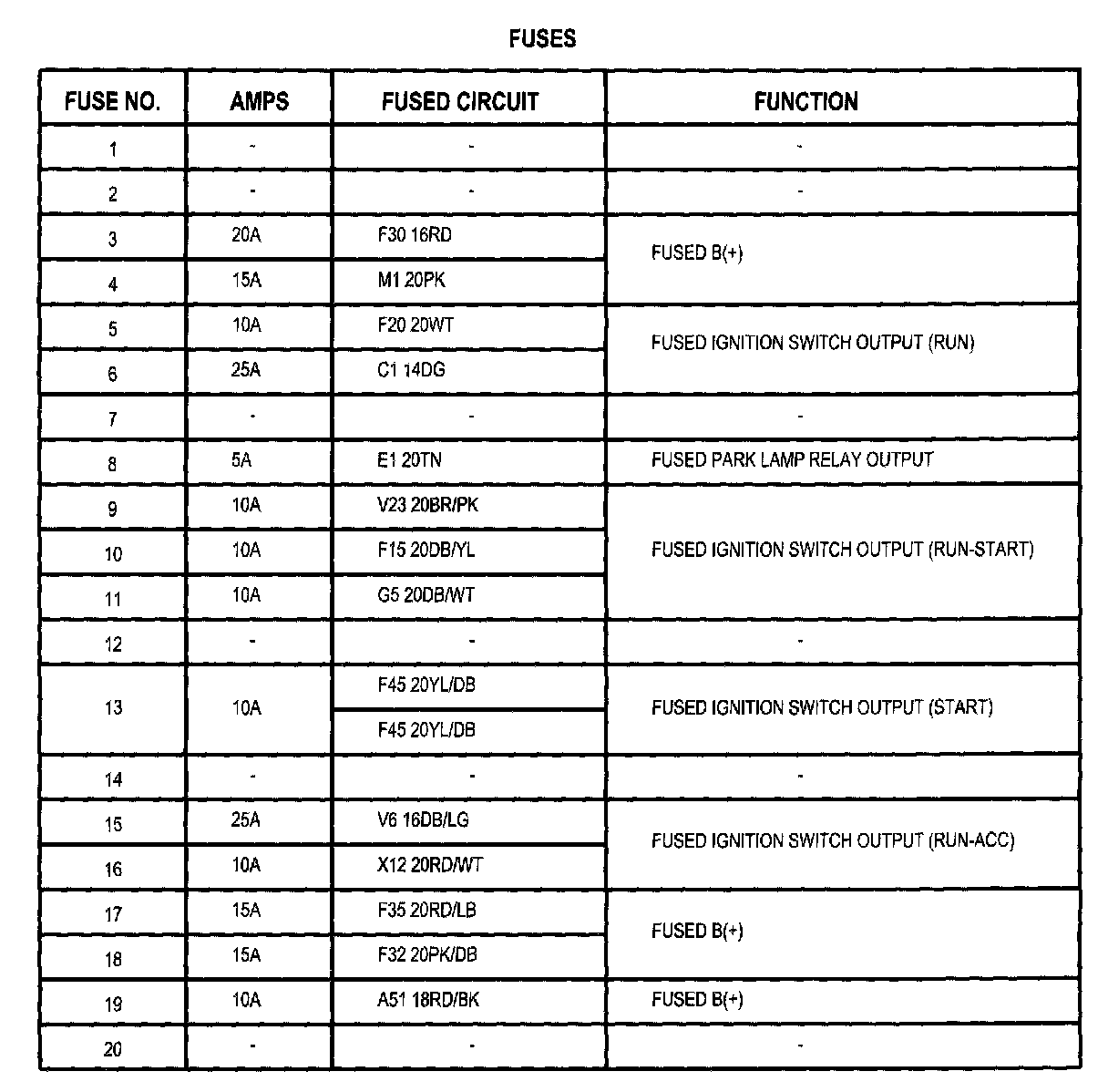

Fuses (FB):
