Air Bag Control Module
Air Bag Control Module

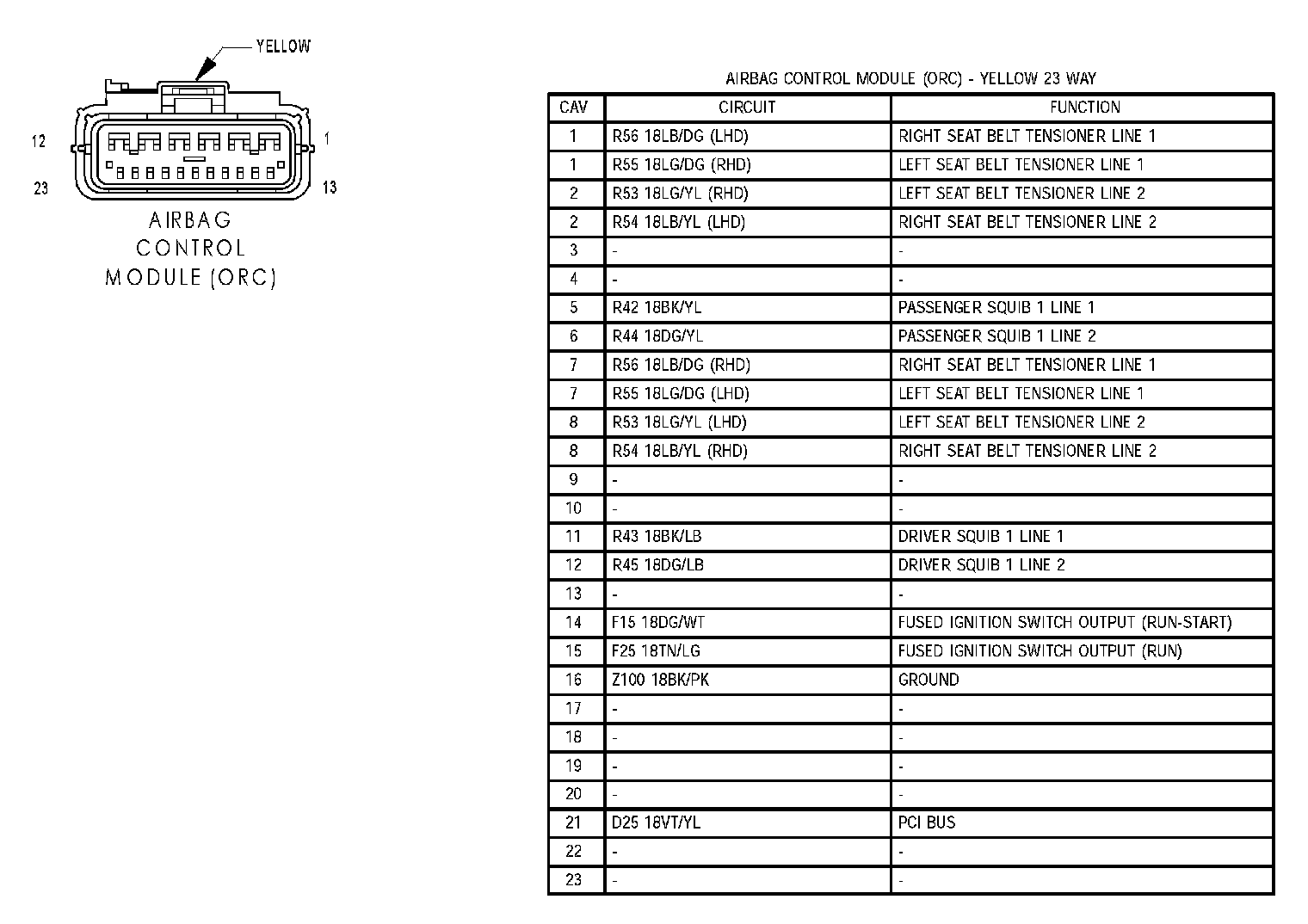

Airbag Control Module (ORC):
Left Side Impact Airbag Control Module (Full Options):
Right Side Impact Airbag Control Module (Full Options):
