Powertrain Control Module C4 Connector End View (Green 38-Way)

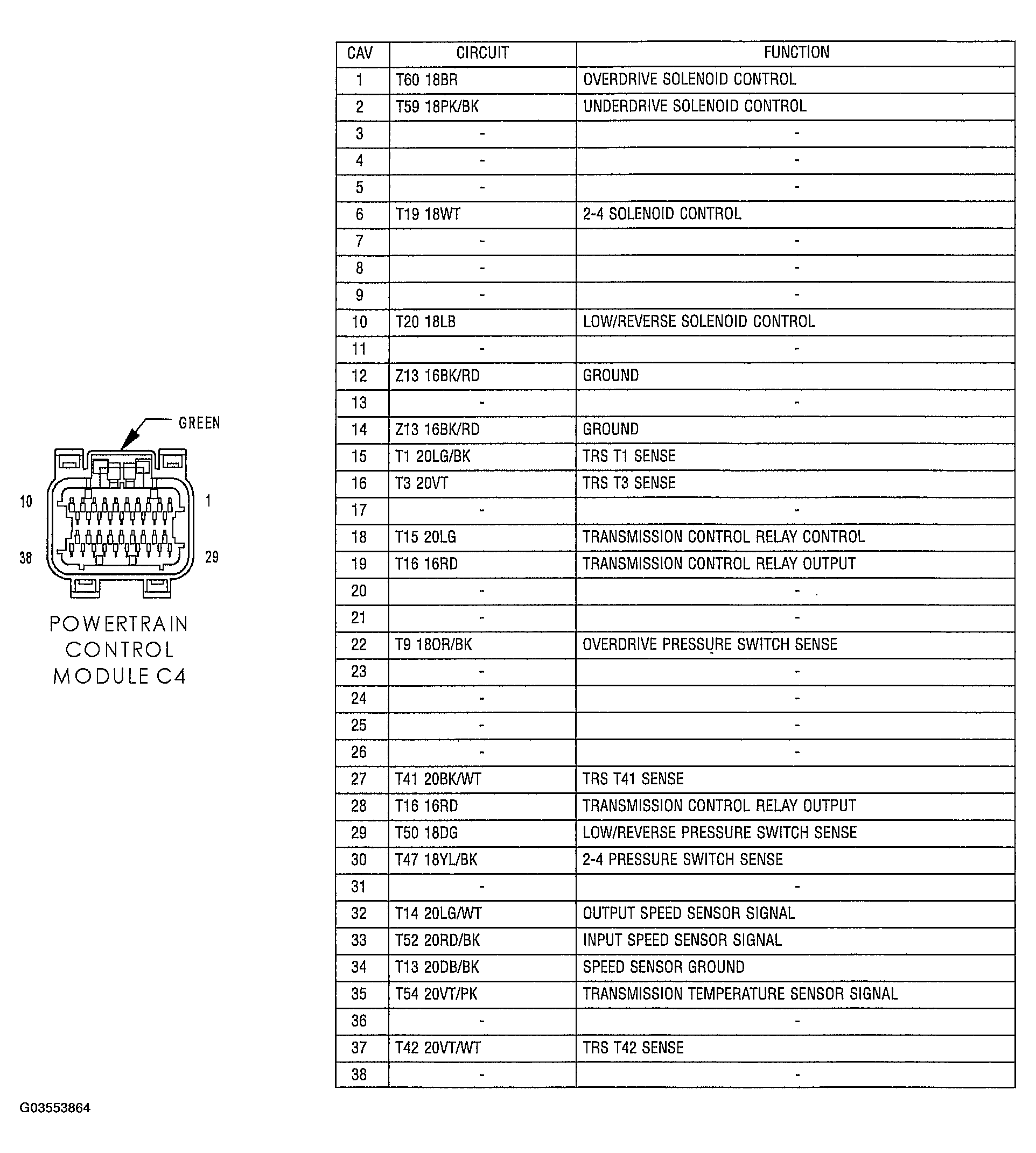

Fig 1: Powertrain Control Module C4 Connector End View (Green 38-Way)

G03553864

Courtesy of CHRYSLER GROUP, LLC
