Home >> Chrysler >> 2002 >> Neon LE, Automatic >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector End Views >> Powertrain Control Module C3 (2.0L NGC) Connector End View

Powertrain Control Module C3 (2.0L NGC) Connector End View

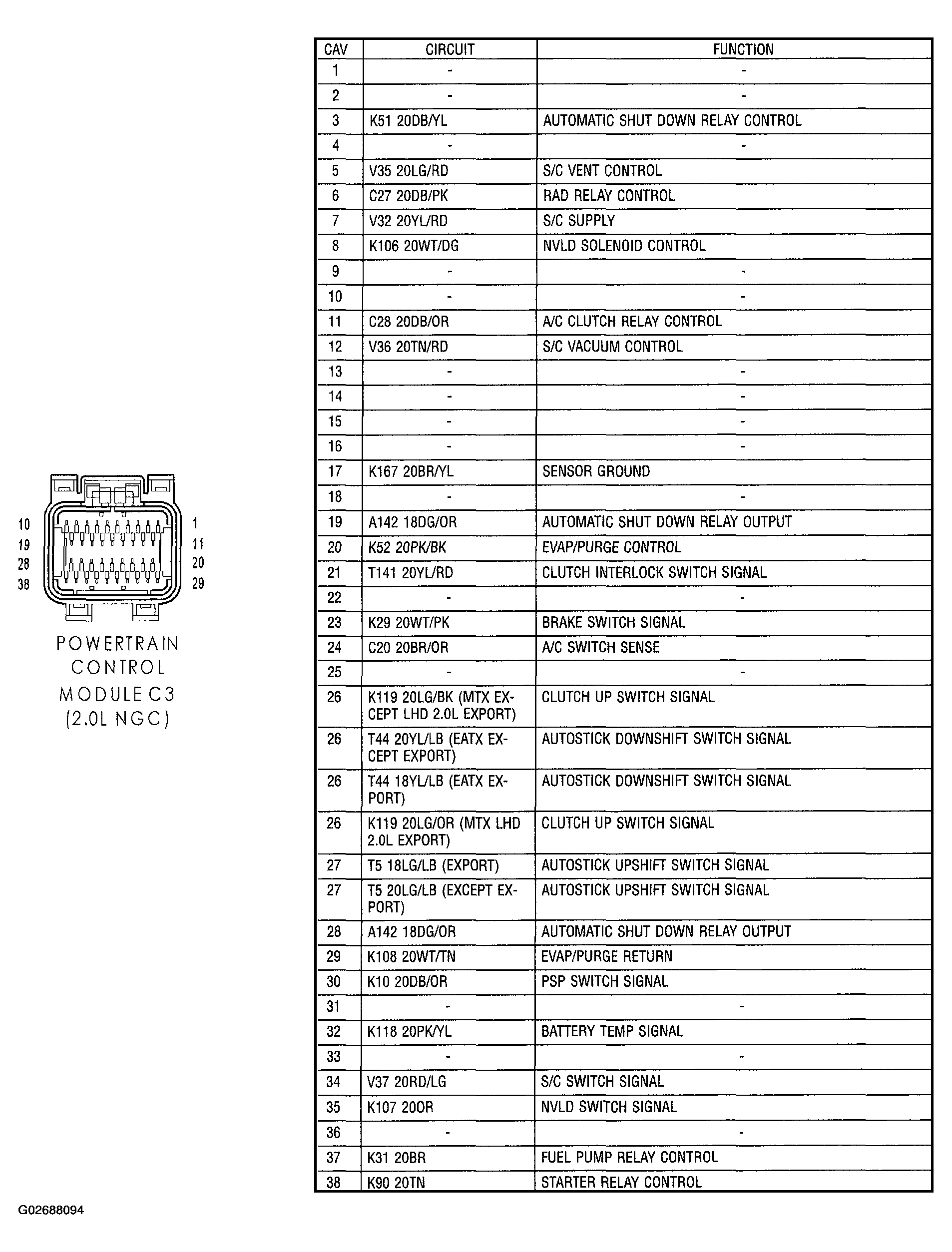

Fig 1: Powertrain Control Module C3 (2.0L NGC) Connector End View

G02688094

Courtesy of CHRYSLER GROUP, LLC
