Chrysler
>>
2002
>>
Neon (CANADA) L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse
>>
Power Distribution Center
Power Distribution Center

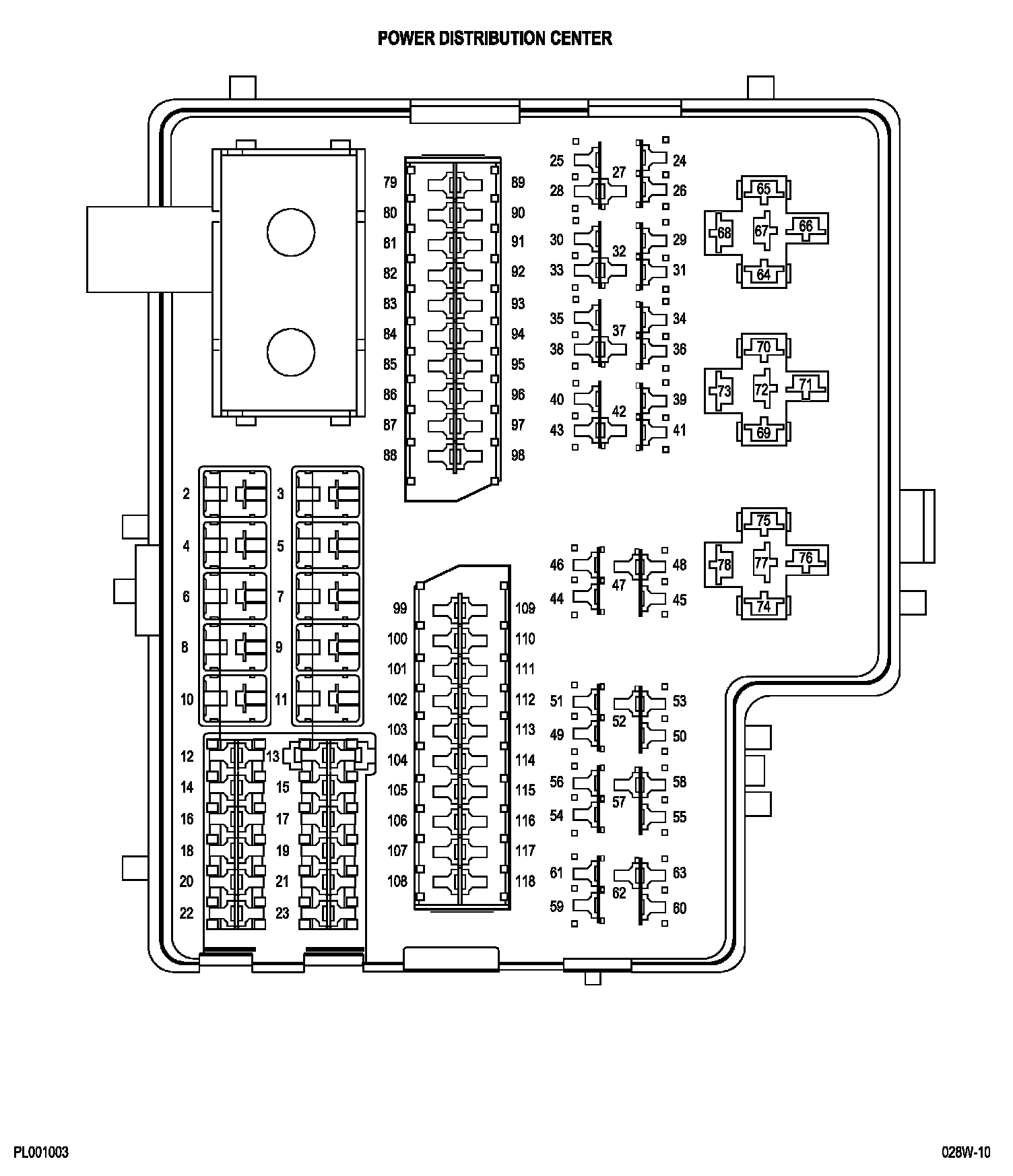

Power Distribution Center:
Power Distribution Center (Bottom):

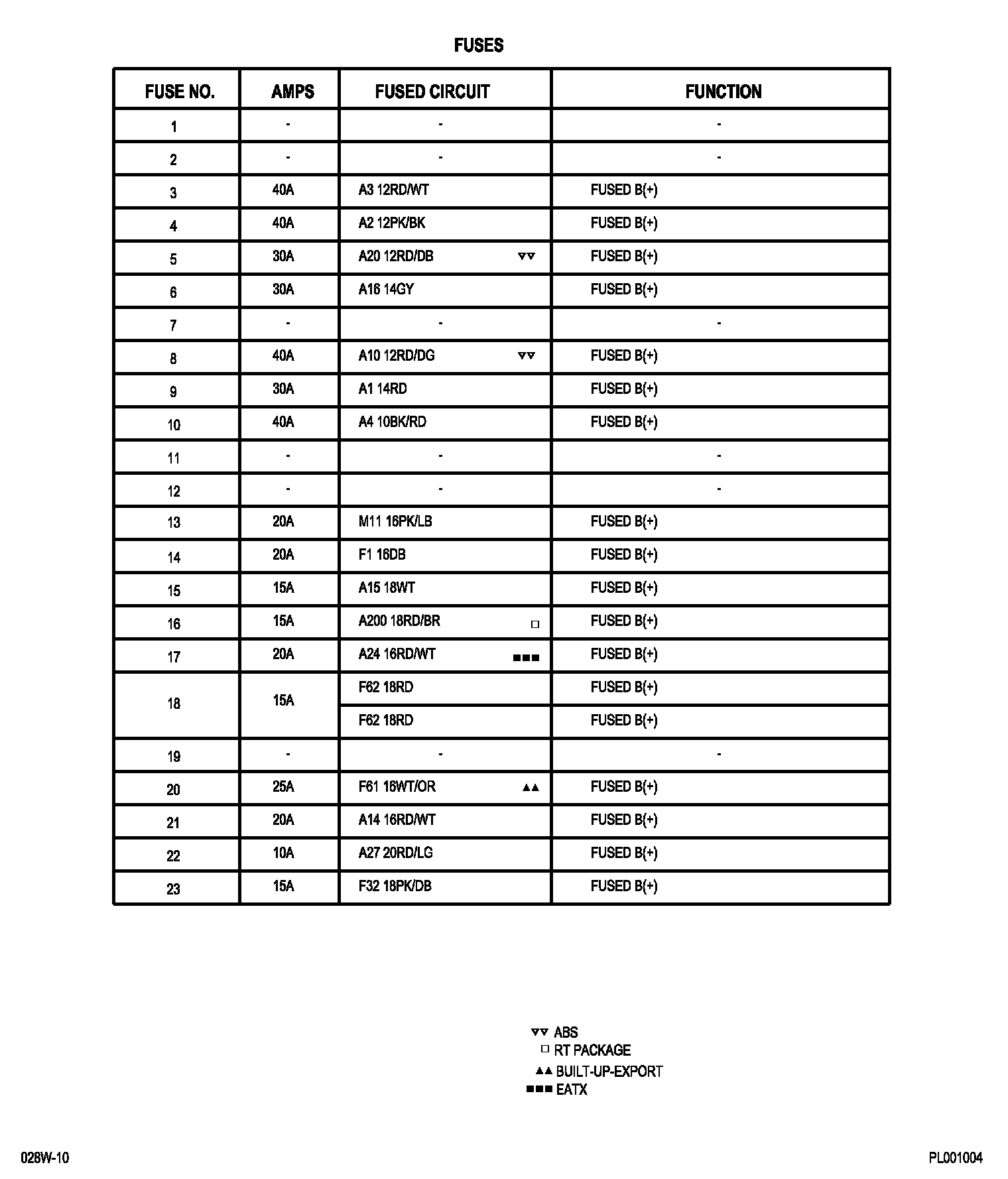

Fuses (PDC):
