Home >> Chrysler >> 2002 >> Intrepid (CANADA) V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seats >> Seat Temperature Switch

Seat Temperature Switch

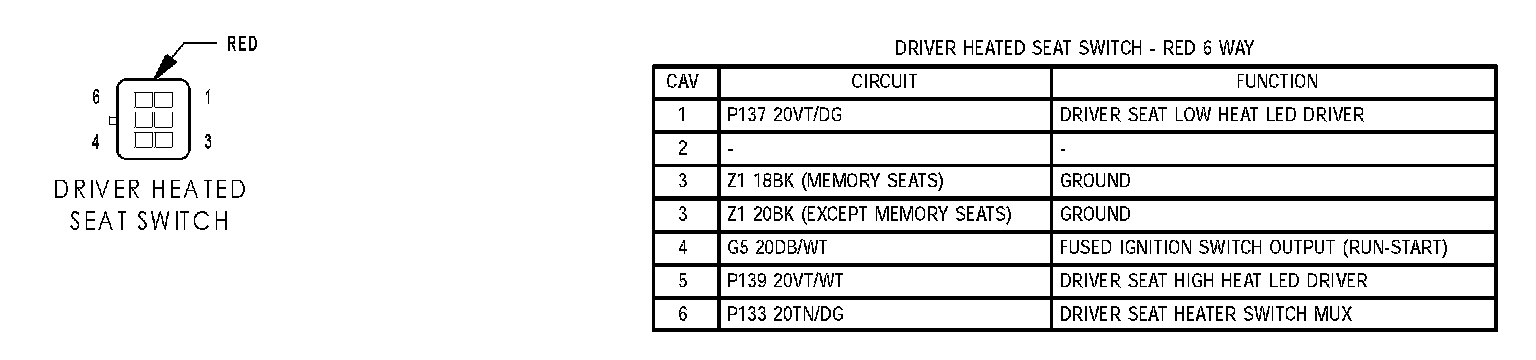

Driver Heated Seat Switch:

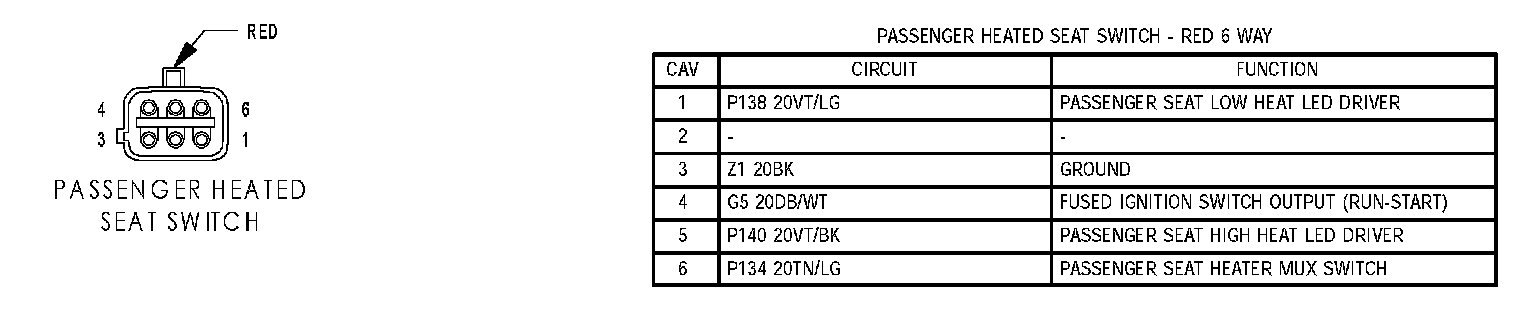

Passenger Heated Seat Switch:
