Home >> Chrysler >> 2002 >> Intrepid (CANADA) V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seats >> Power Seat Switch

Power Seat Switch

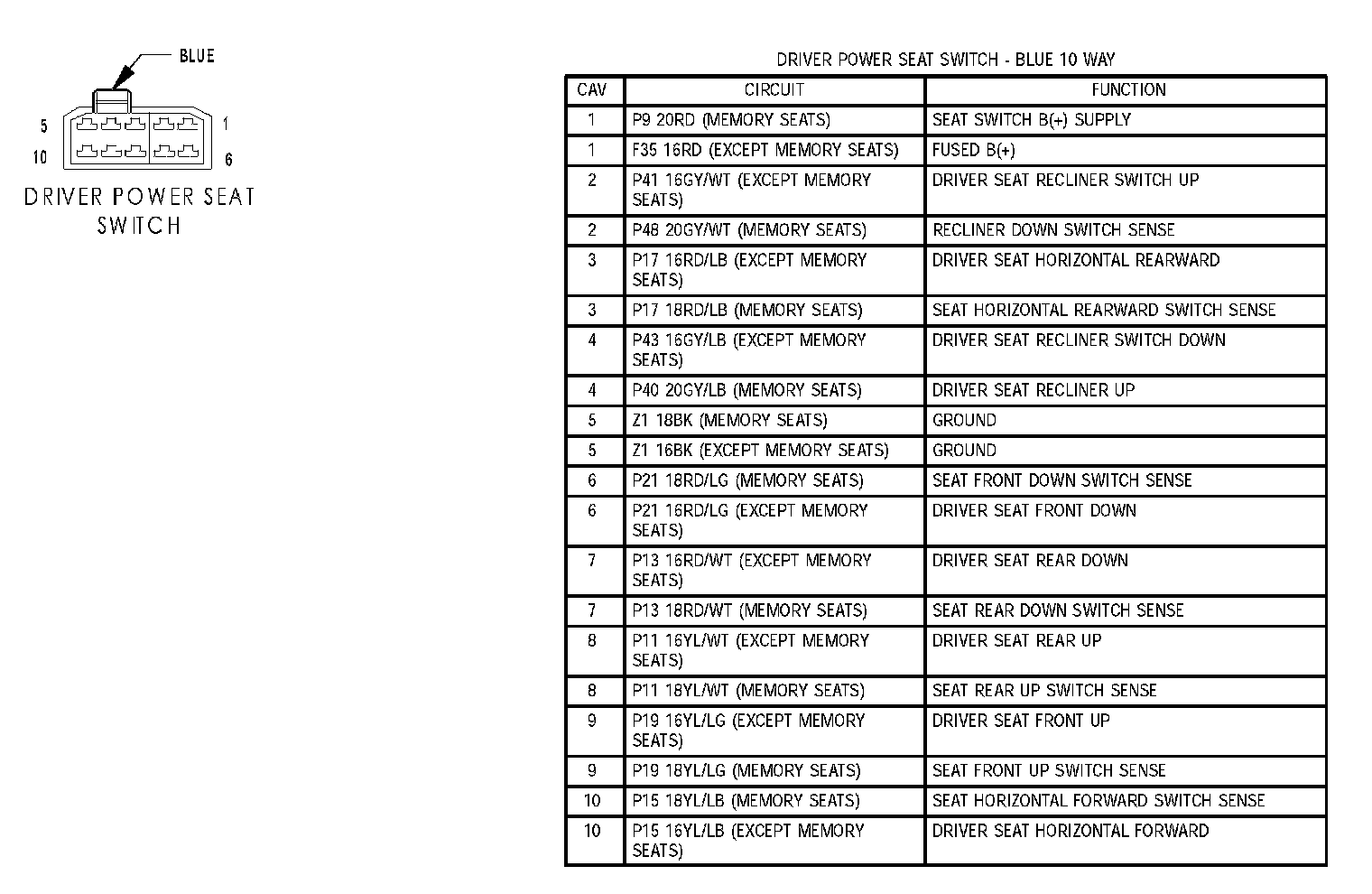

Driver Power Seat Switch:




Memory Set Switch:

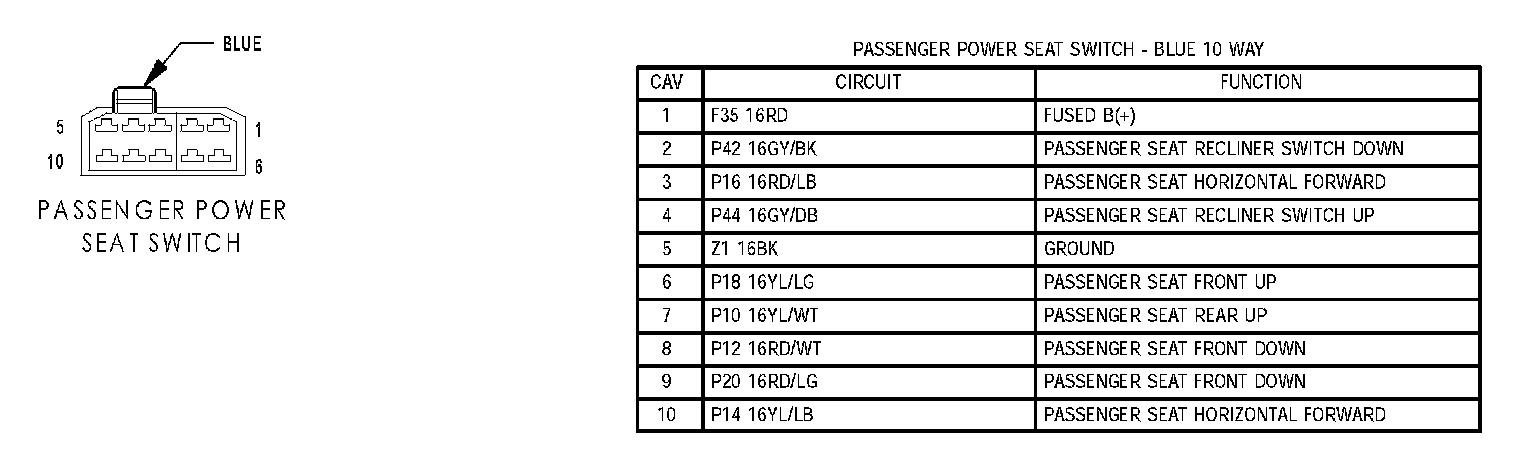

Passenger Power Seat Switch:
