Chrysler
>>
2002
>>
Intrepid (CANADA) V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Automatic Transmission/Transaxle
>>
Shift Interlock Solenoid
Shift Interlock Solenoid

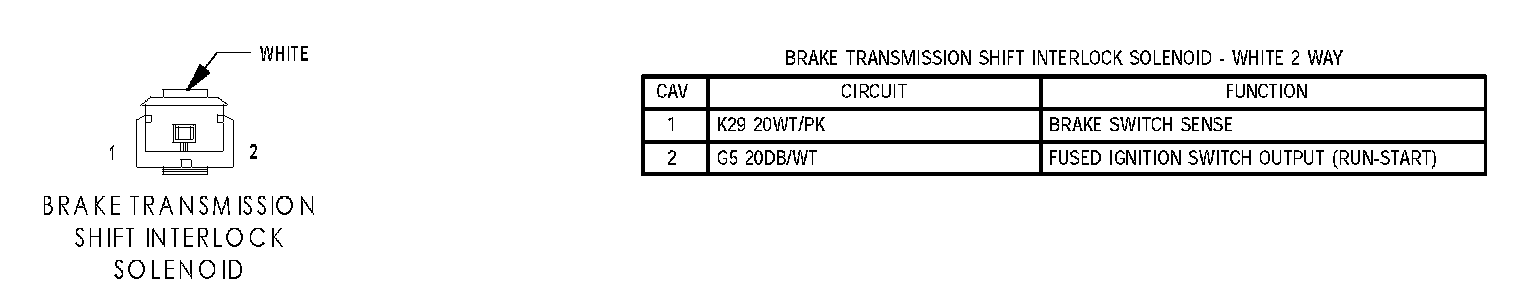

Brake Transmission Shift Interlock Solenoid:
