Home >> Chrysler >> 2002 >> Intrepid (CANADA) V6-2.7L >> Repair and Diagnosis >> Locations >> Splice Locations >> Figure 3

Figure 3

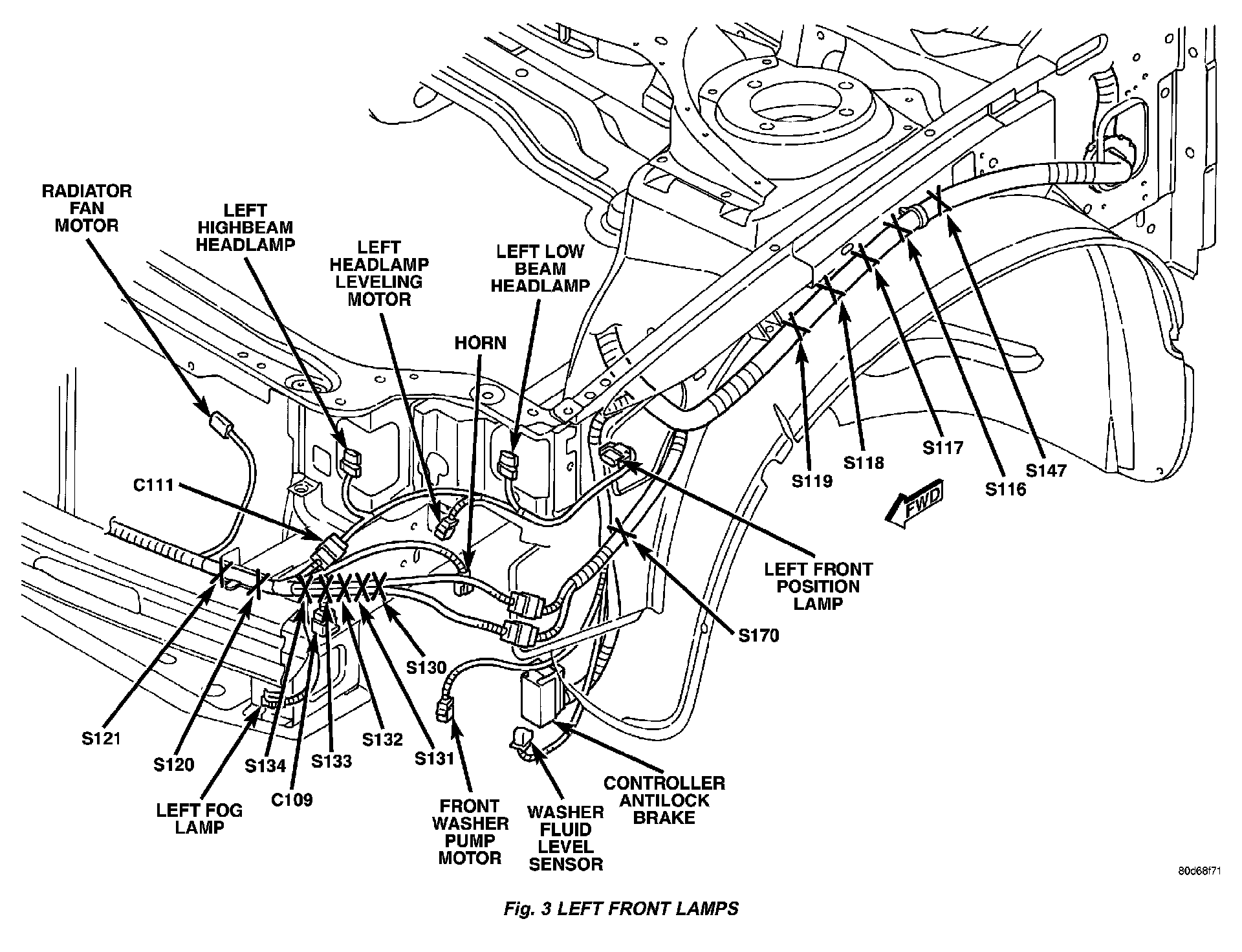

Fig. 3 Left Front Lamps:
