Home >> Chrysler >> 2002 >> Intrepid (CANADA) V6-2.7L >> Repair and Diagnosis >> Locations >> Splice Locations >> Figure 13

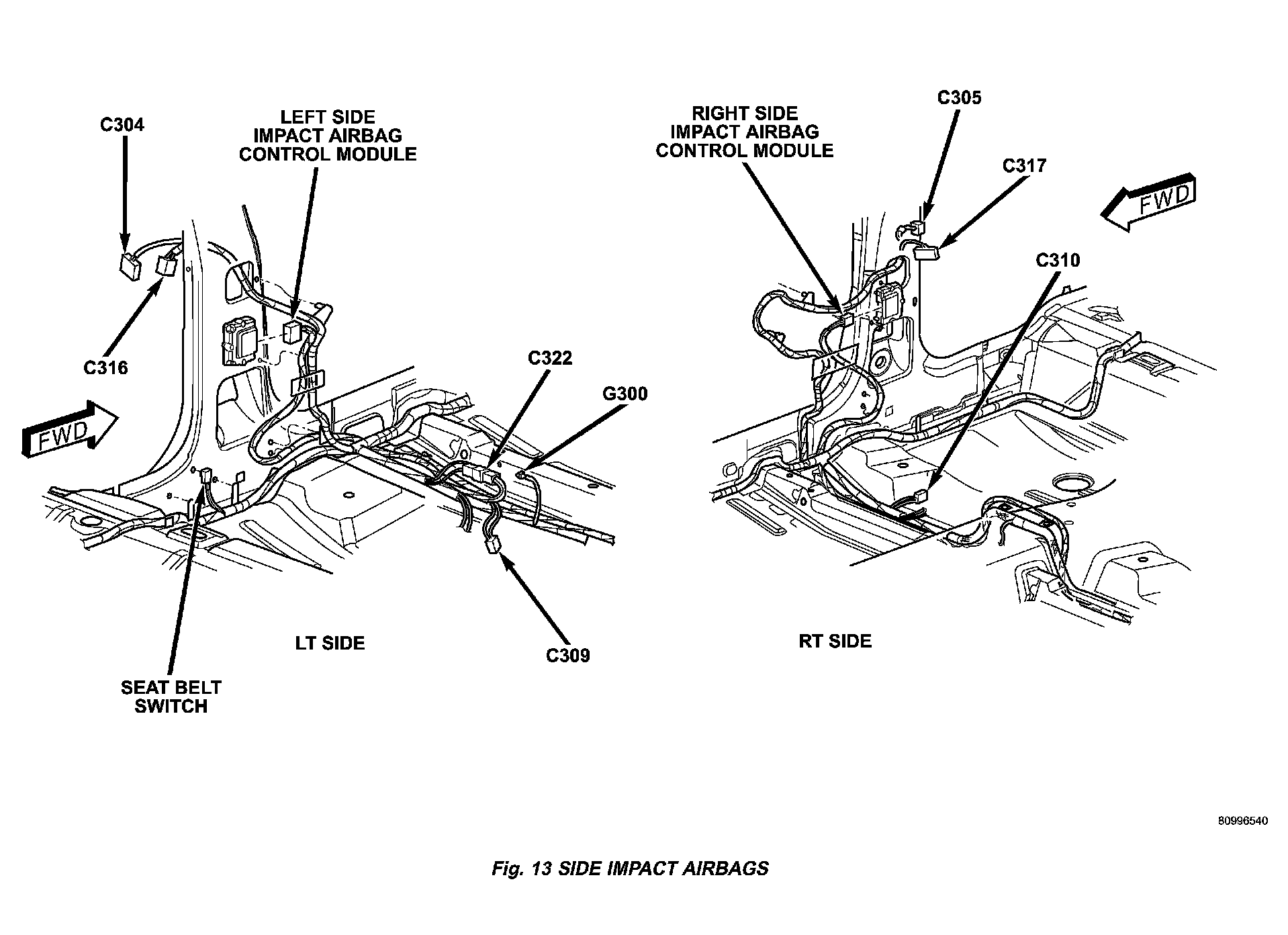

Figure 13

Fig. 13 Side Impact Airbags:
