Oxygen Sensor
>>
Locations
>>

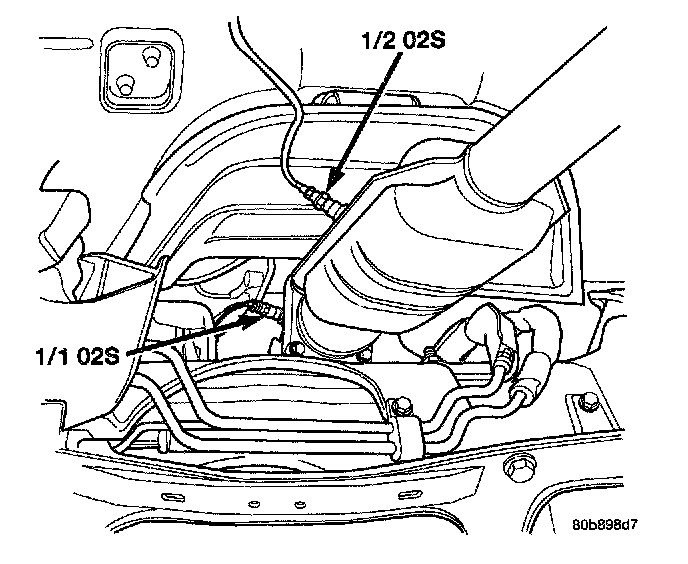

Engine Compartment/Exhaust System
Engine Compartment/Exhaust System

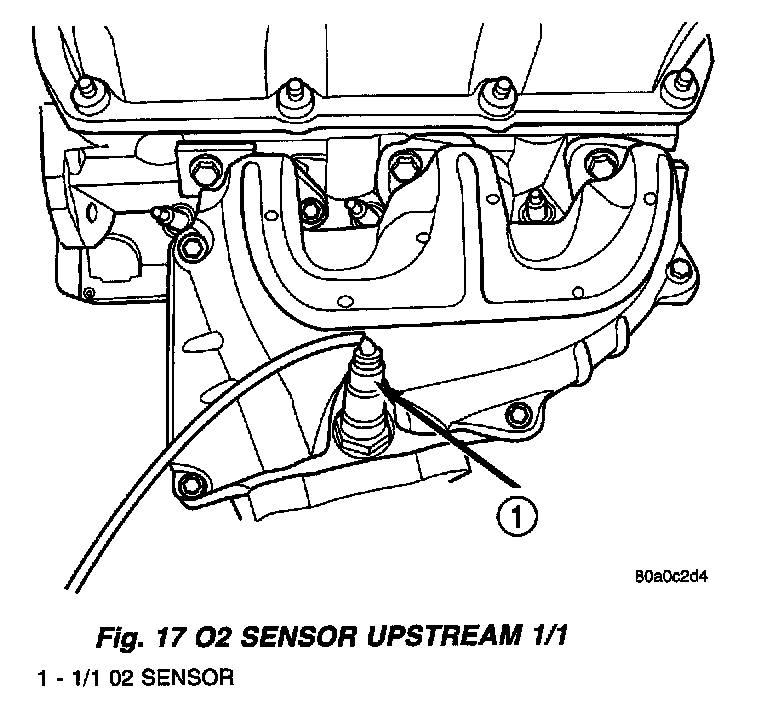

Fig. 17 O2 Sensor Upstream 1/1:
The upstream oxygen sensor threads into the outlet flange of the exhaust manifold.
