Powertrain Management: Locations

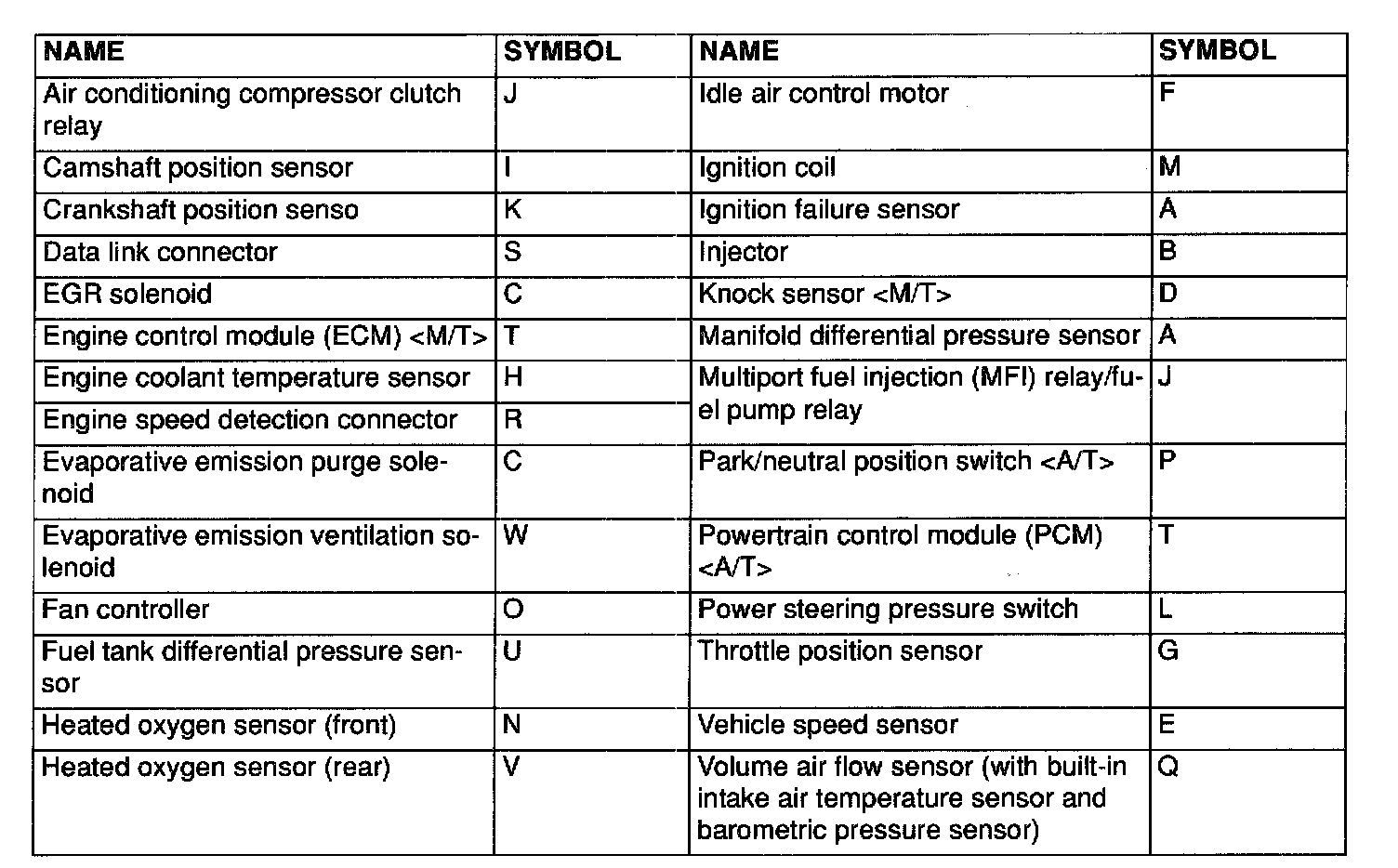

Component Location:

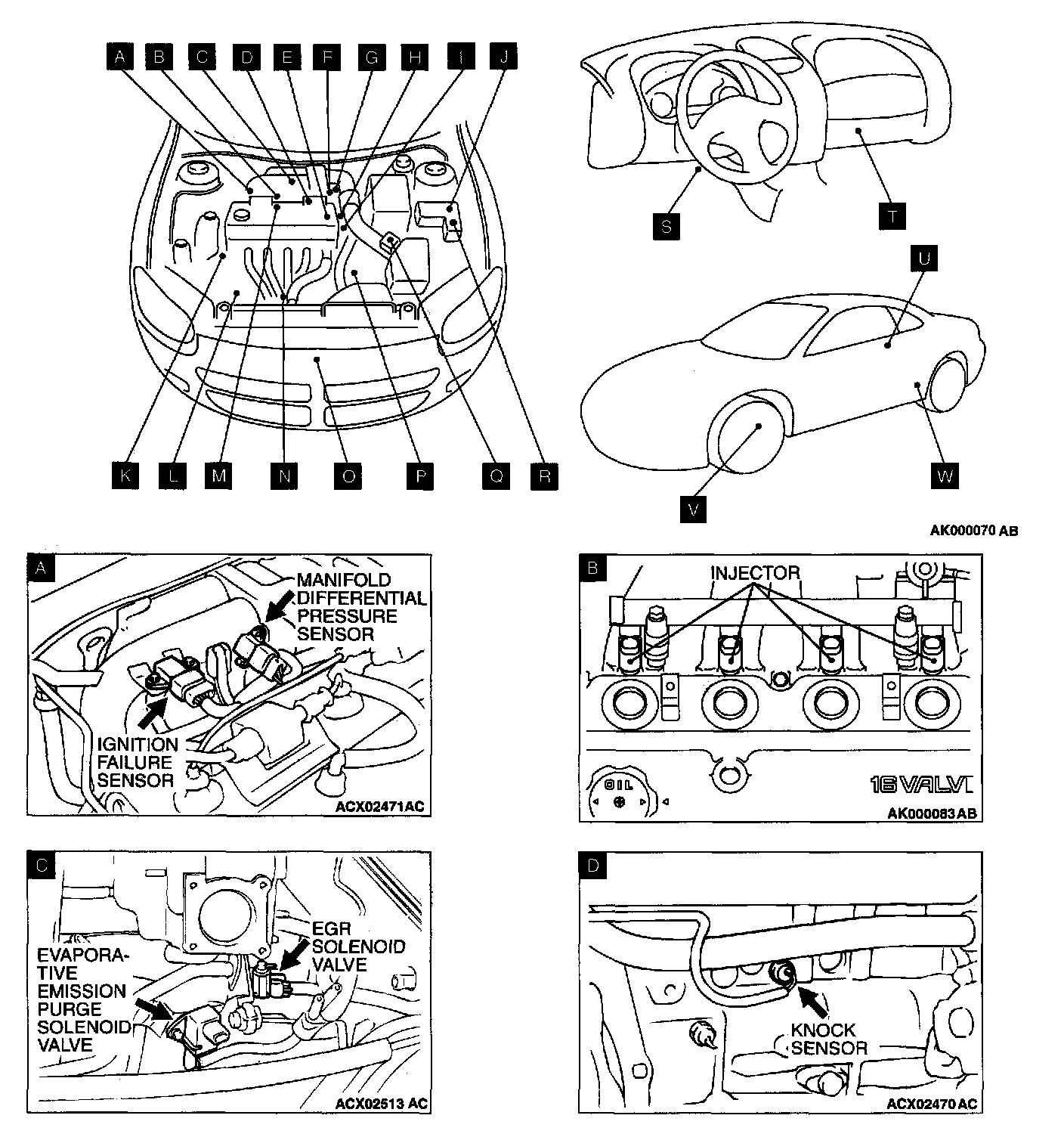

Overall View And Views A - D:

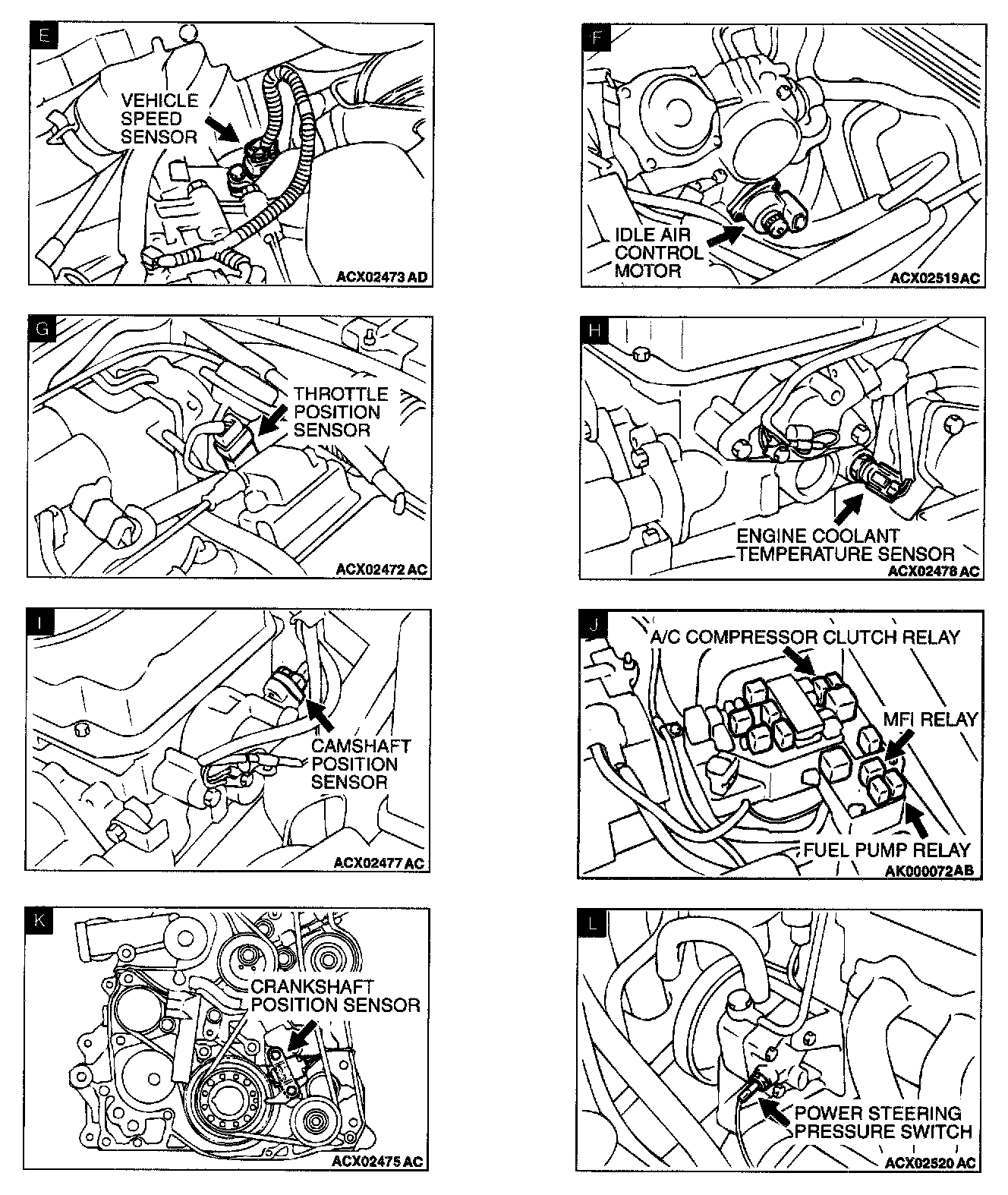

Views E - L:

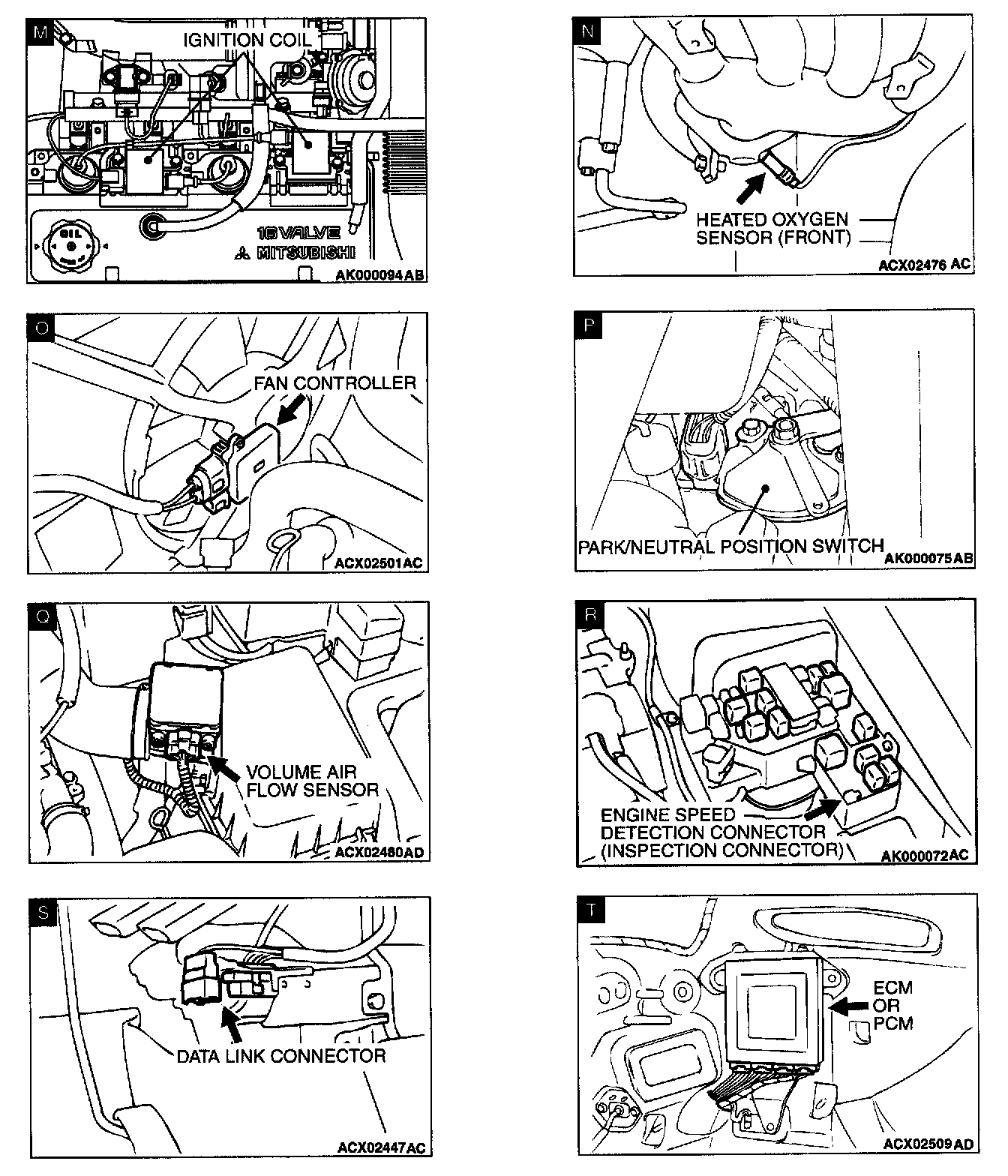

Views M - T:

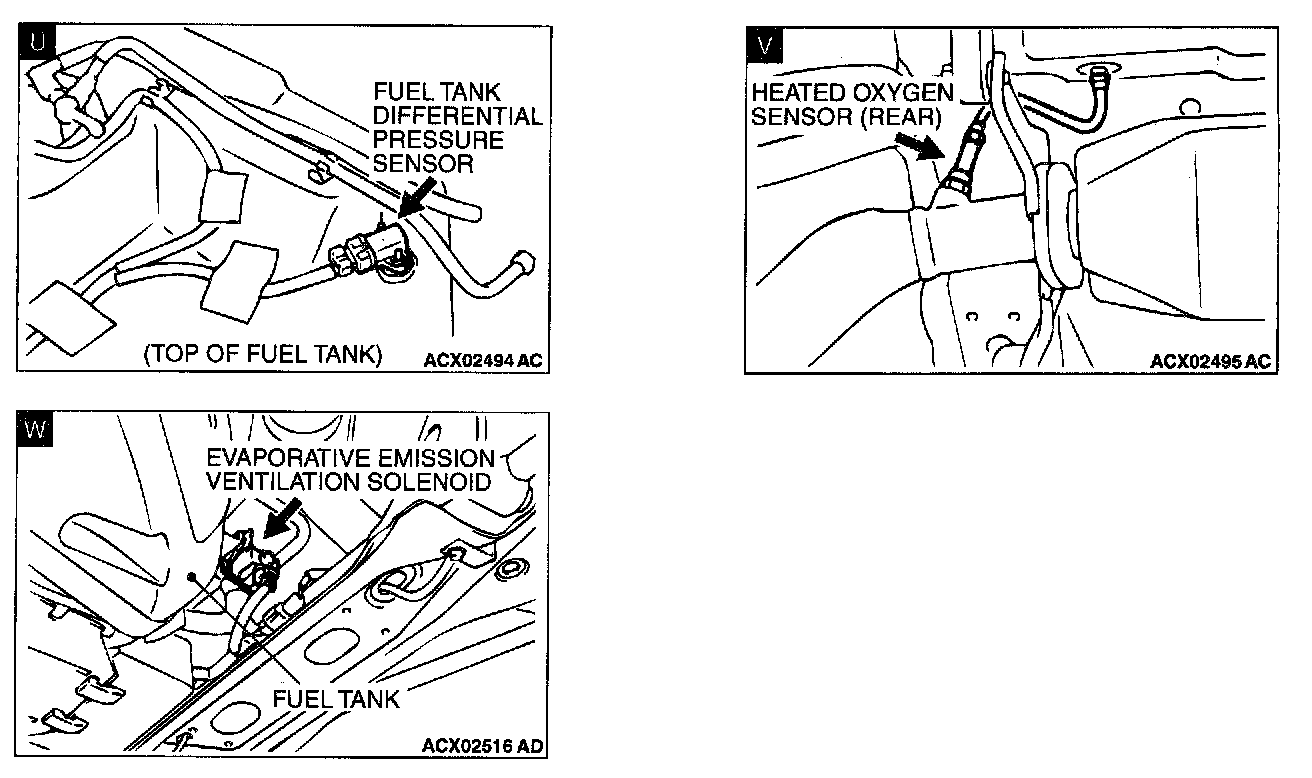

Views U - W:
