Home
>>
Chrysler
>>
2001
>>
Sebring Convertible V6-2.7L VIN U
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Main Relay (Computer/Fuel System)
Main Relay (Computer/Fuel System)

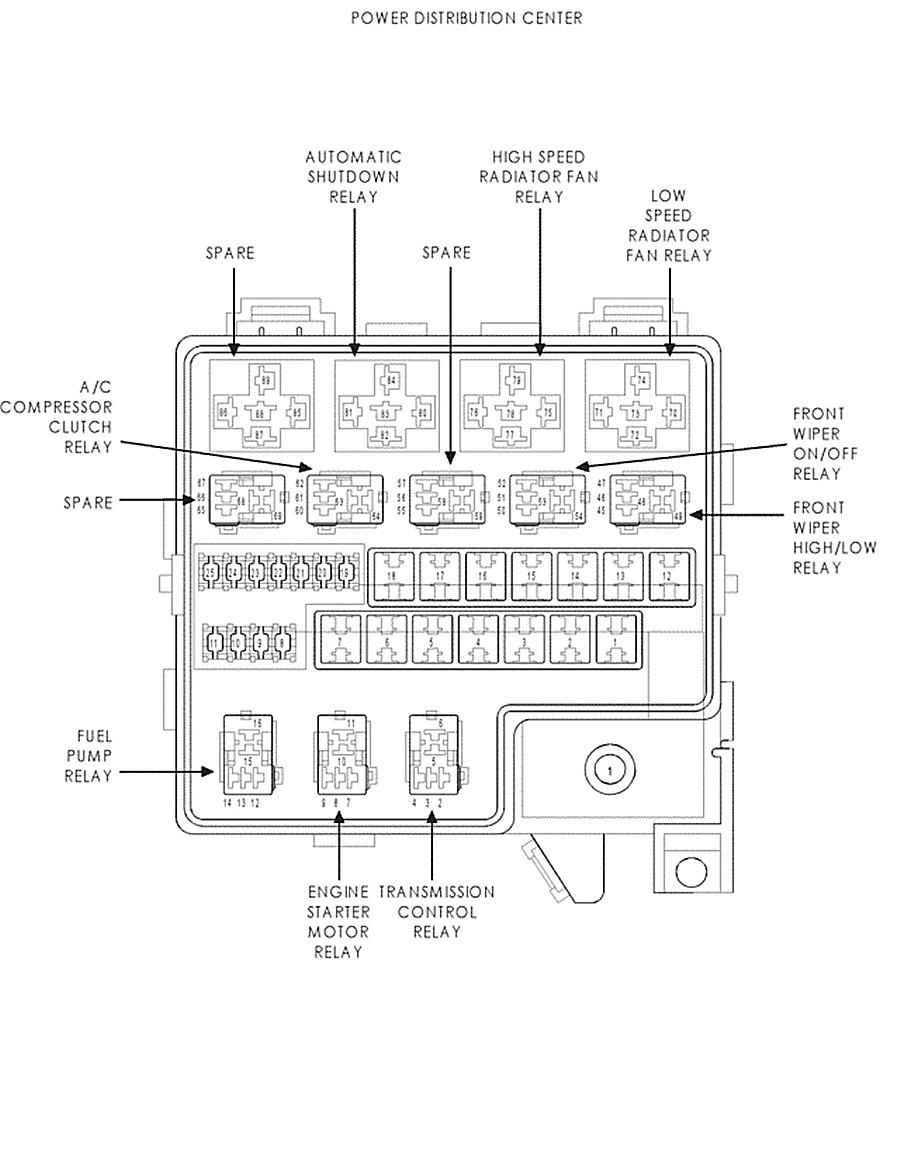

Power Distribution Center (PDC):
8w-10-4:
