Air Bag Control Module
Air Bag Control Module
Left Side Impact Airbag Control Module (Full Options):

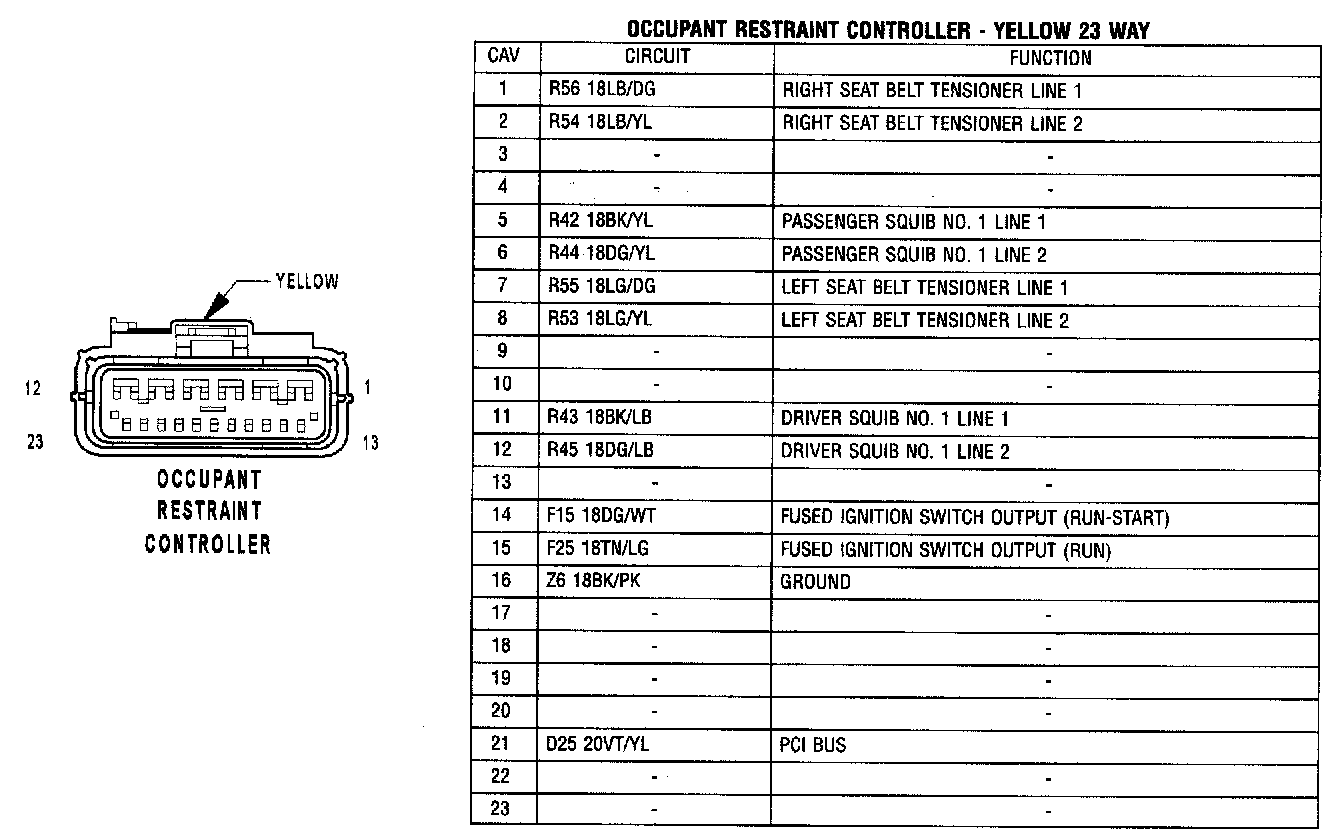

Occupant Restraint Controller:
Right Side Impact Airbag Control Module (Full Options):
