Manifold Pressure/Vacuum Sensor: Locations

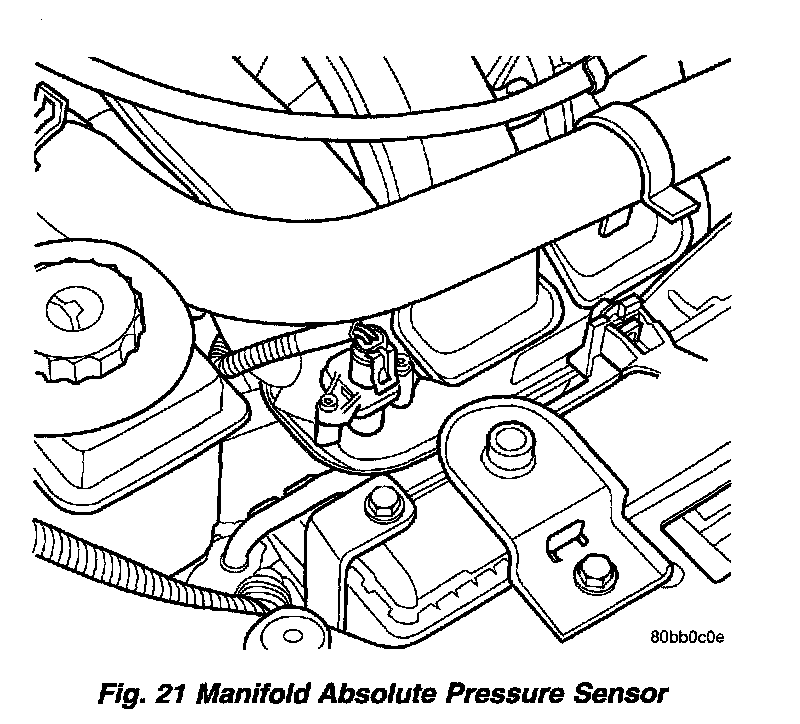

Fig. 21 Manifold Absolute Pressure Sensor:

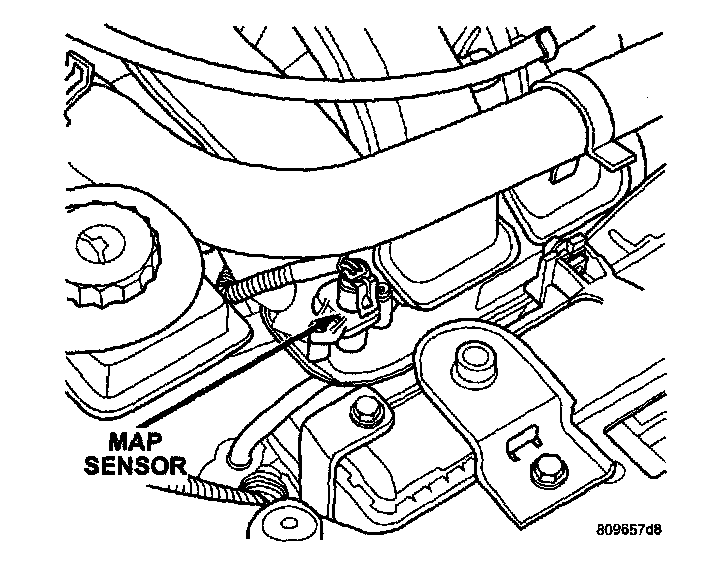

The MAP sensor mounts to the intake manifold.
