Home >> Chrysler >> 2001 >> Neon (CANADA) L4-2.0L >> Repair and Diagnosis >> Locations >> Connector Locations >> Figure 13

Figure 13

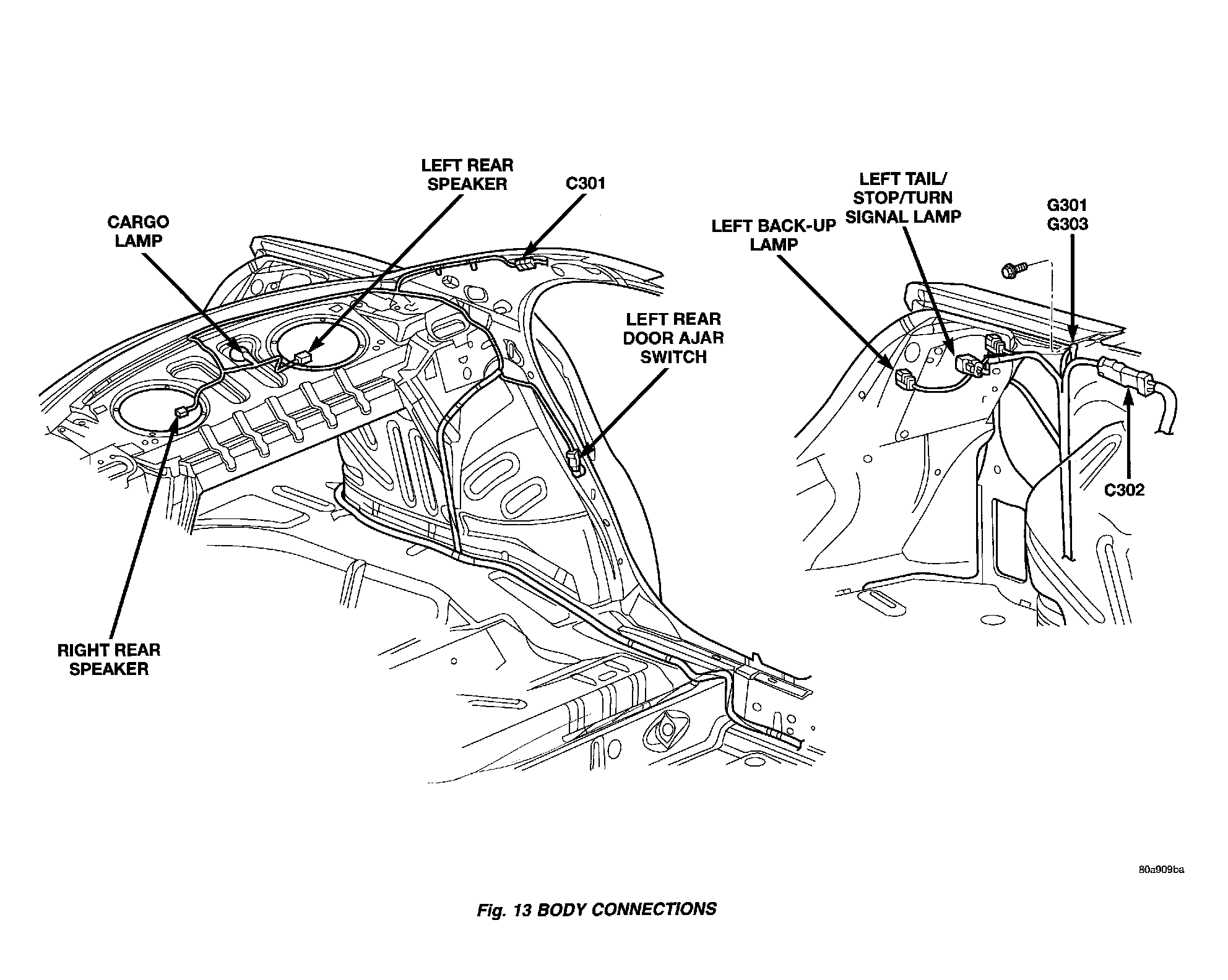

Fig.13 Body Connections:
