Fuse

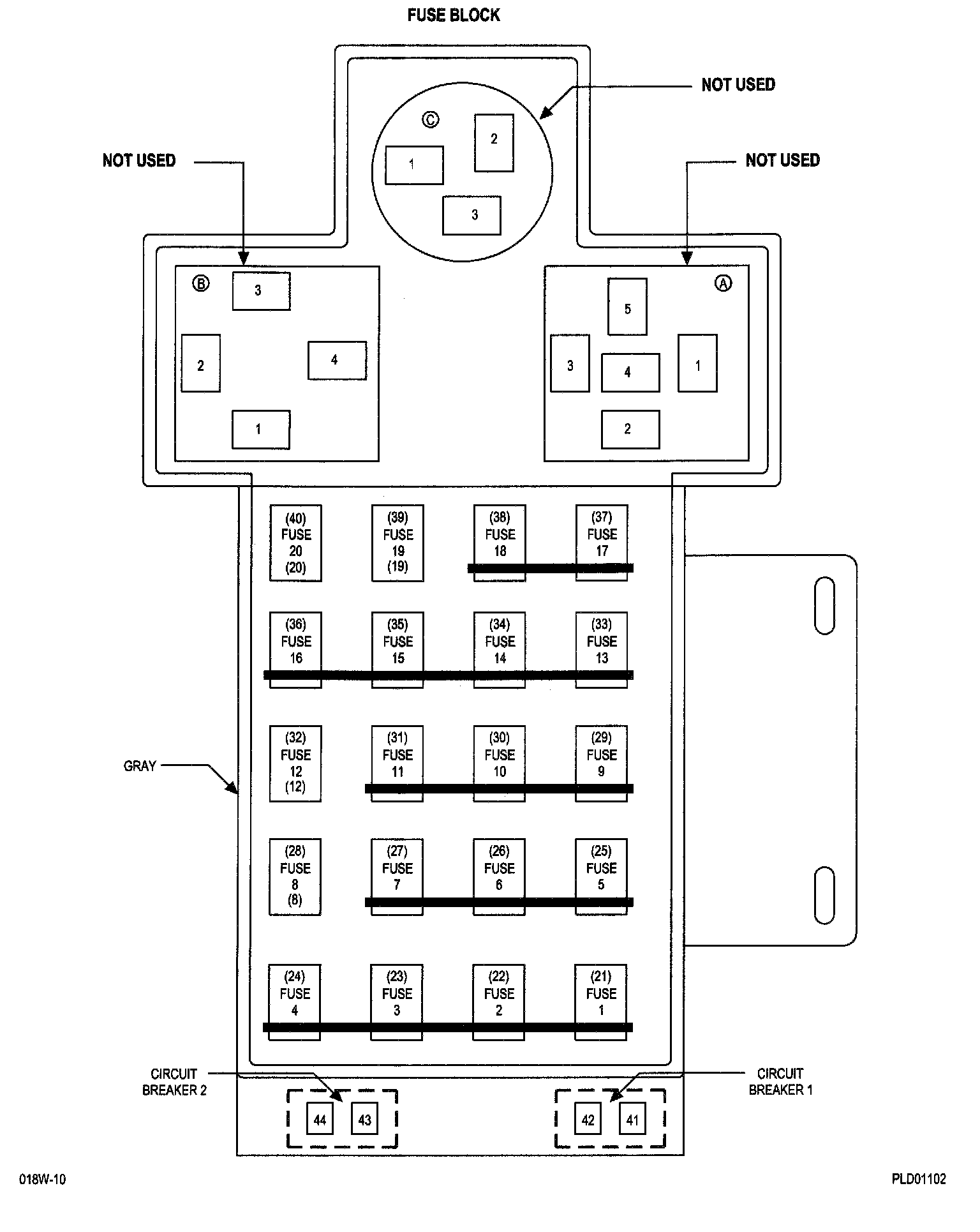

Fuse Block (LHD):

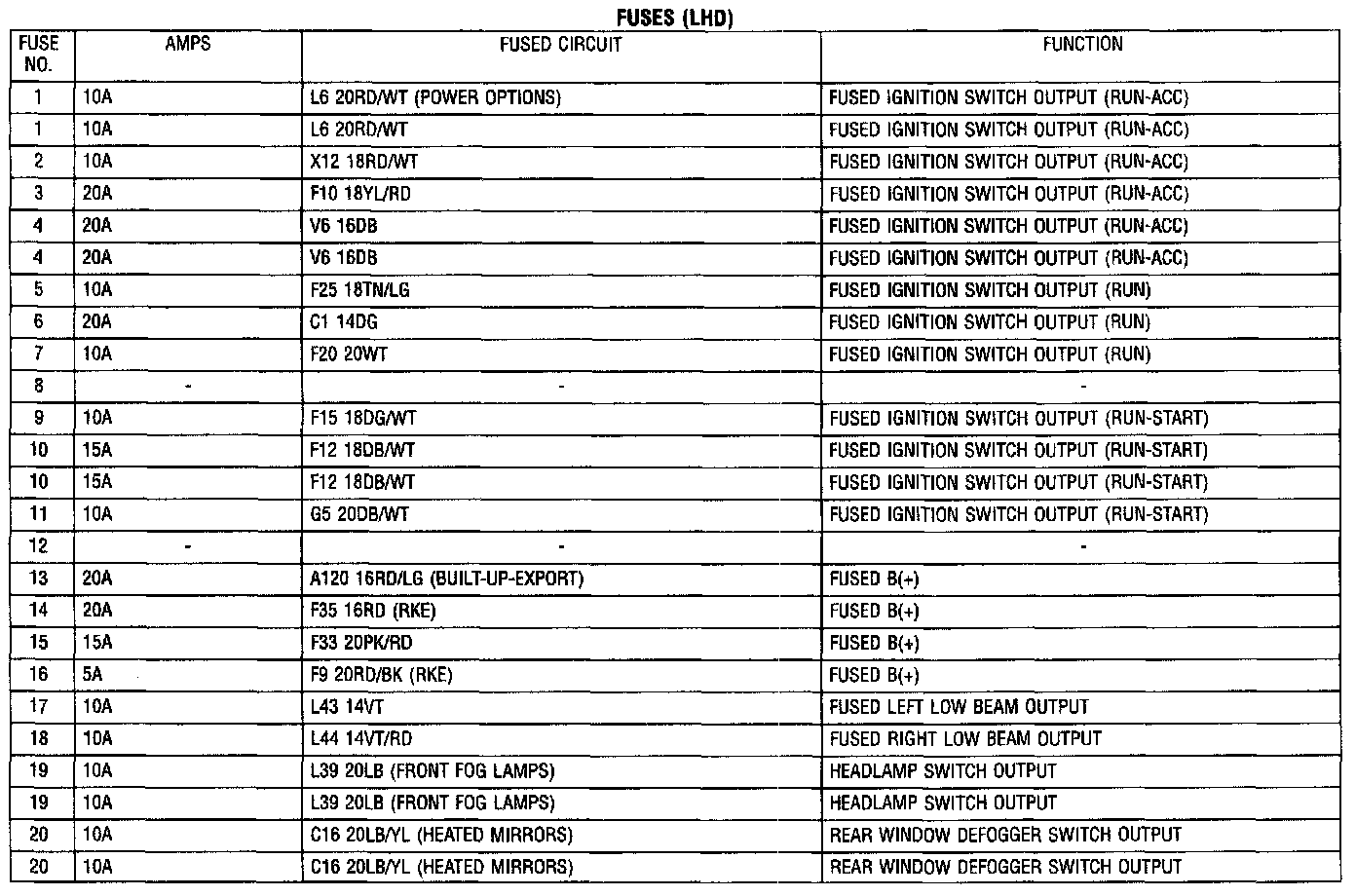

Fuses (LHD):

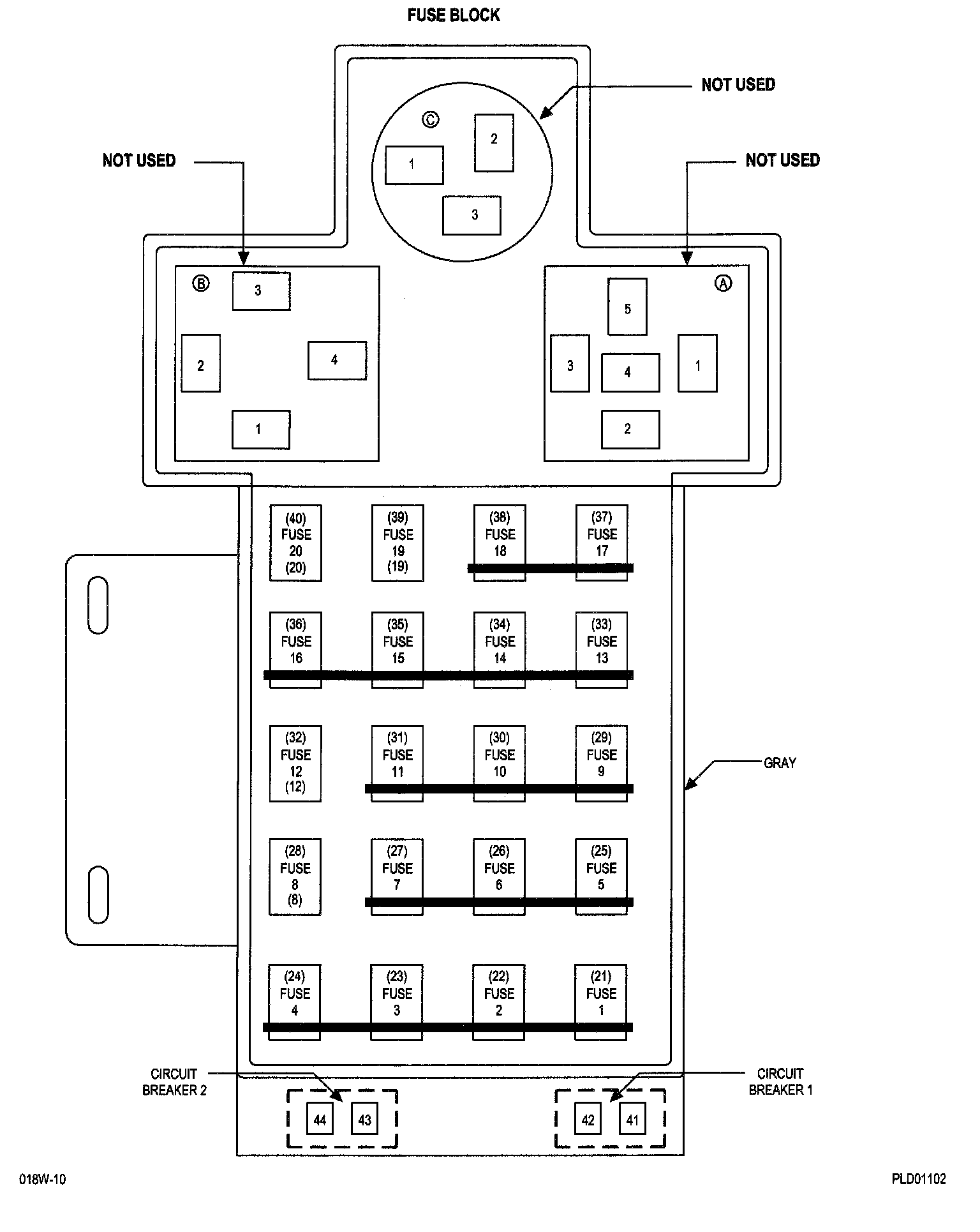

Fuse Block (RHD):

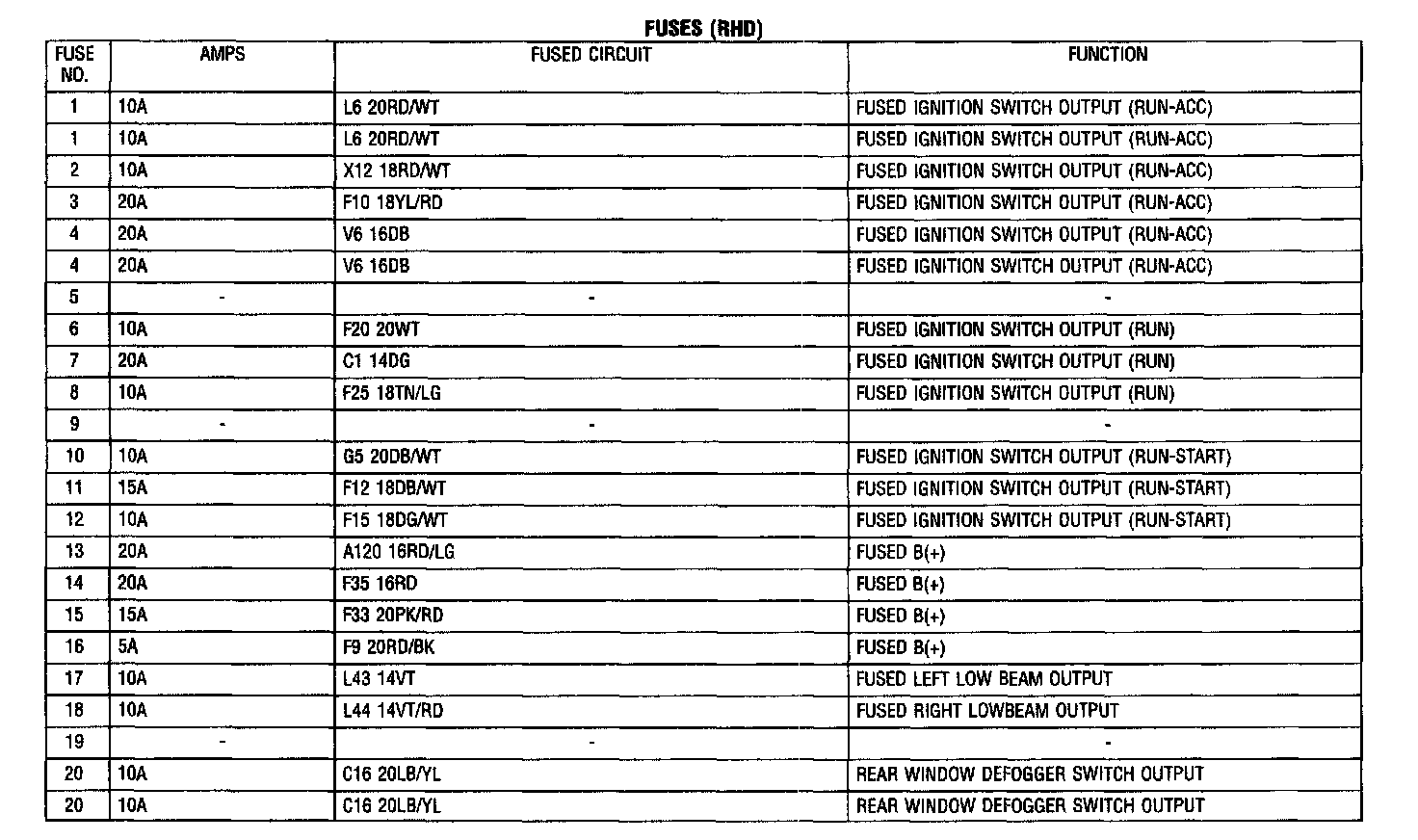

Fuses (RHD):




Power Distribution Center:

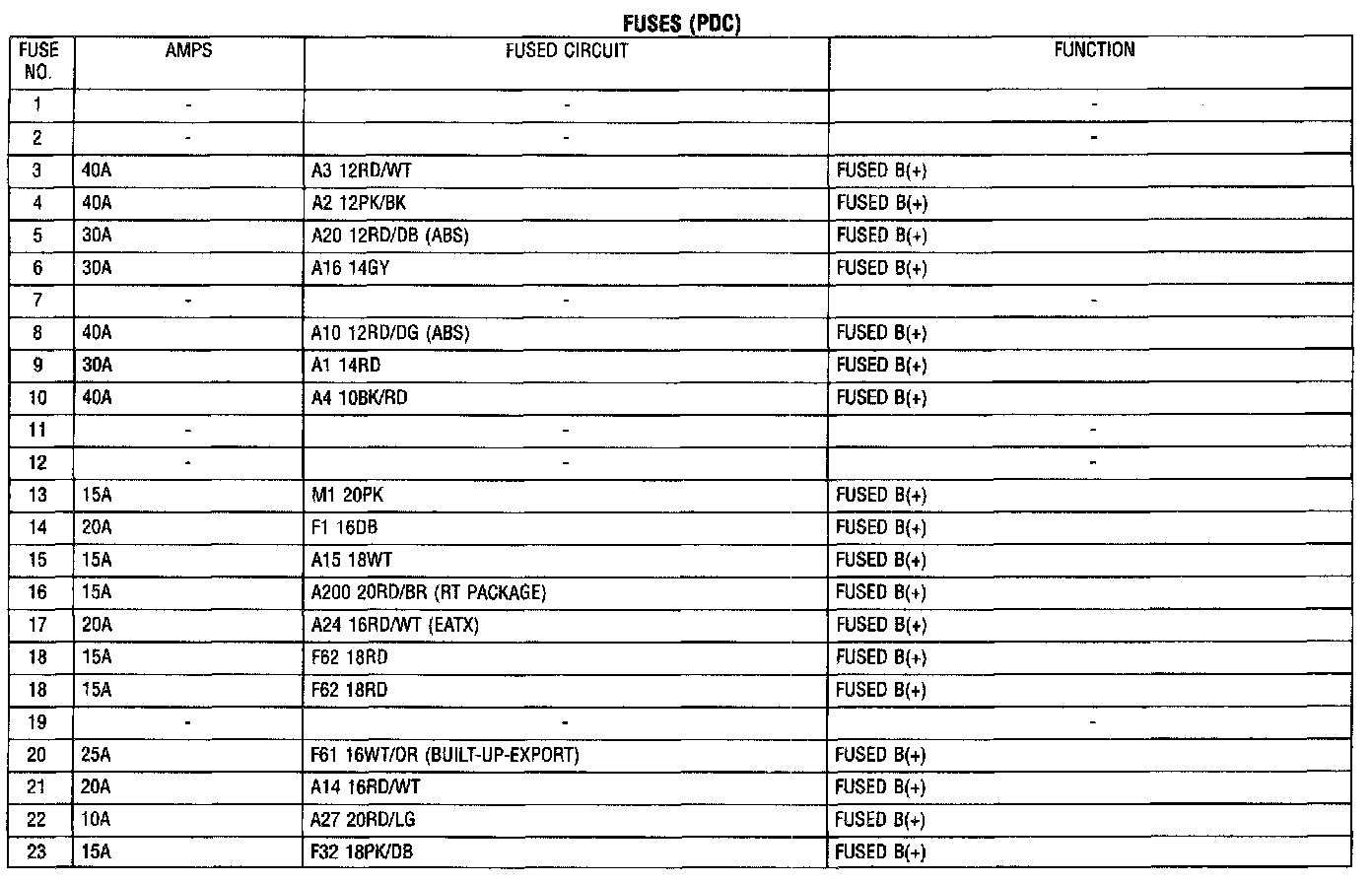

Fuses (PDC):
