Transmission Control System Relay: Service and Repair

REMOVAL
(1) Open hood and locate power distribution center in the engine compartment.
(2) Remove power distribution center plastic cover.

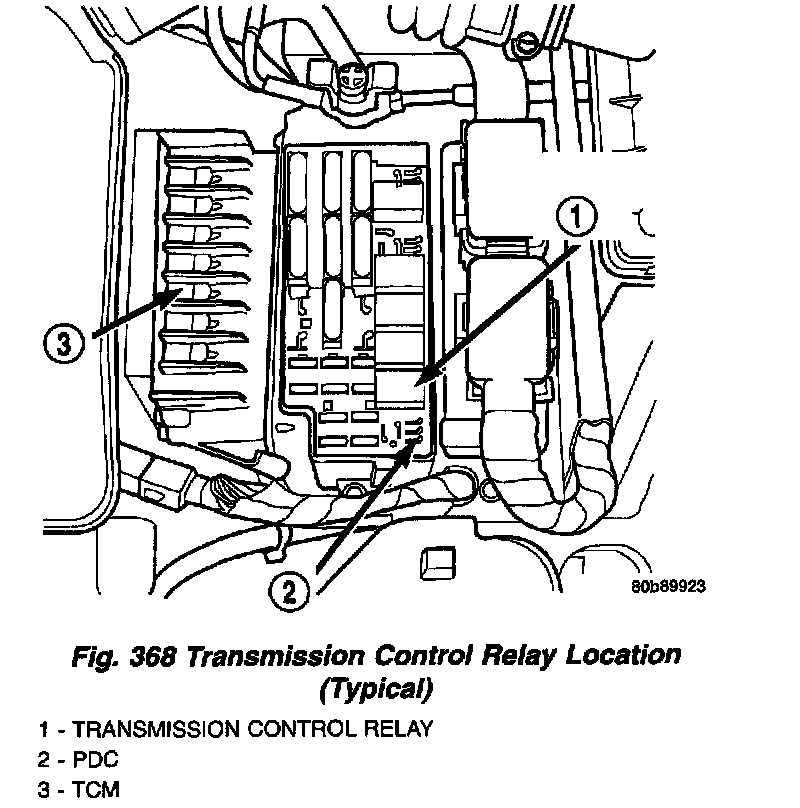

(3) Pull relay out of power distribution center (Fig. 368).

INSTALLATION
(1) To install, reverse removal procedure.
