Home >> Chrysler >> 2001 >> Intrepid (CANADA) V6-3.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Daytime Running Lamp >> Daytime Running Lamp Control Unit

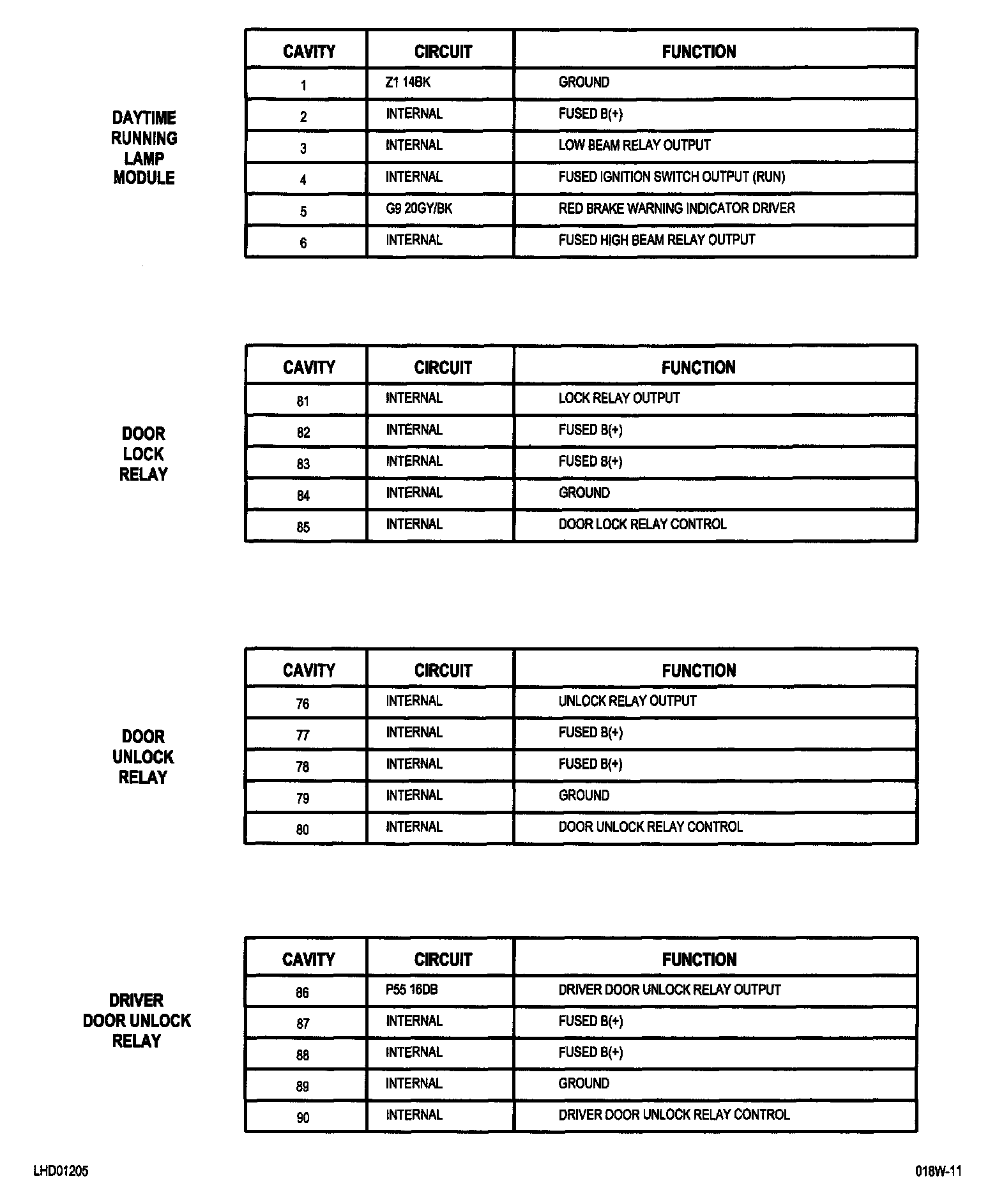

Daytime Running Lamp Control Unit

8w-12-2:



8w-12-5:
