Engine Compartment/Exhaust System

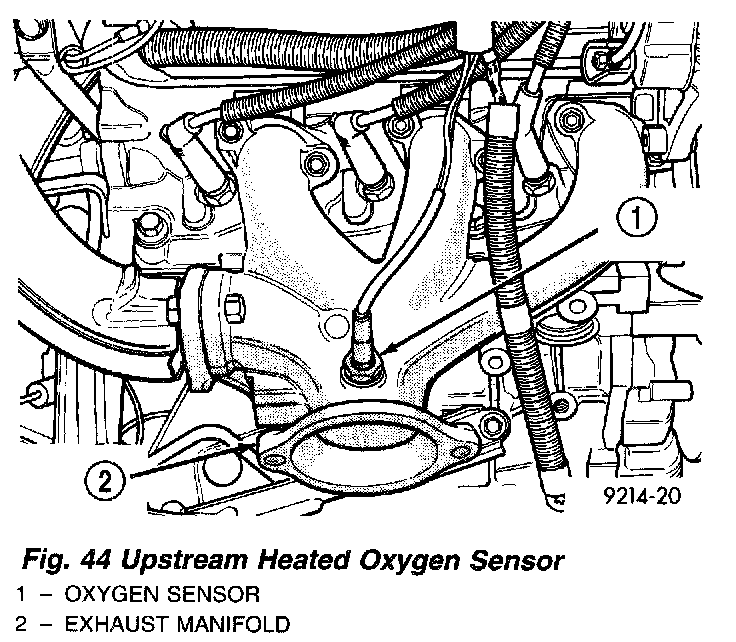

Fig. 44 Upstream Heated Oxygen Sensor:

The upstream heated oxygen sensor is installed in the exhaust manifold.

Fig. 8 Downstream Heated Oxygen Sensor:

The downstream heated oxygen sensor threads into the outlet pipe at the rear of the catalytic convertor.
