Home >> Chrysler >> 2000 >> Voyager V6-3.8L VIN L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Camshaft Position Sensor >> Diagrams

Camshaft Position Sensor: Diagrams

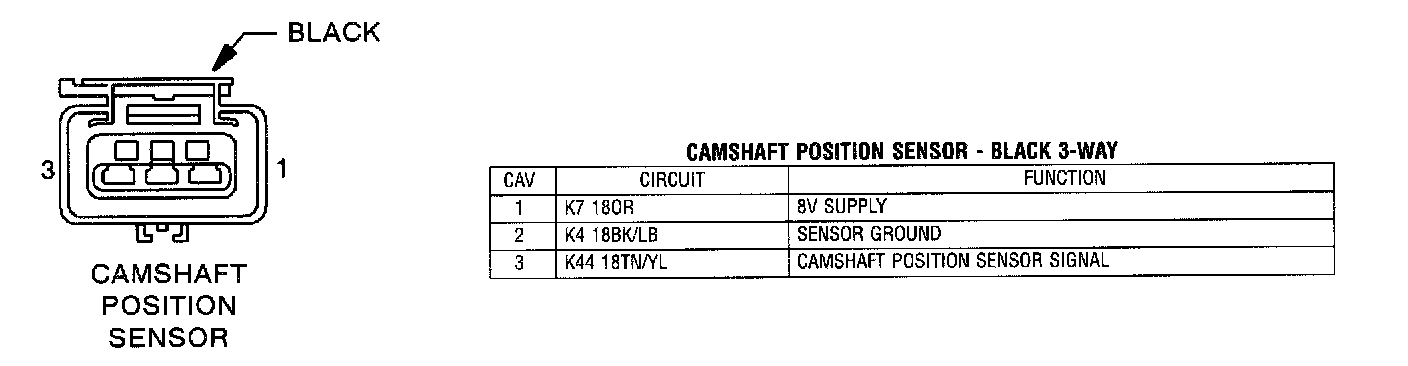

Camshaft Position Sensor (2.4/3.3/3.8L):
