Home >> Chrysler >> 2000 >> Voyager L4-2.4L VIN B >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module, A/T

Control Module, A/T

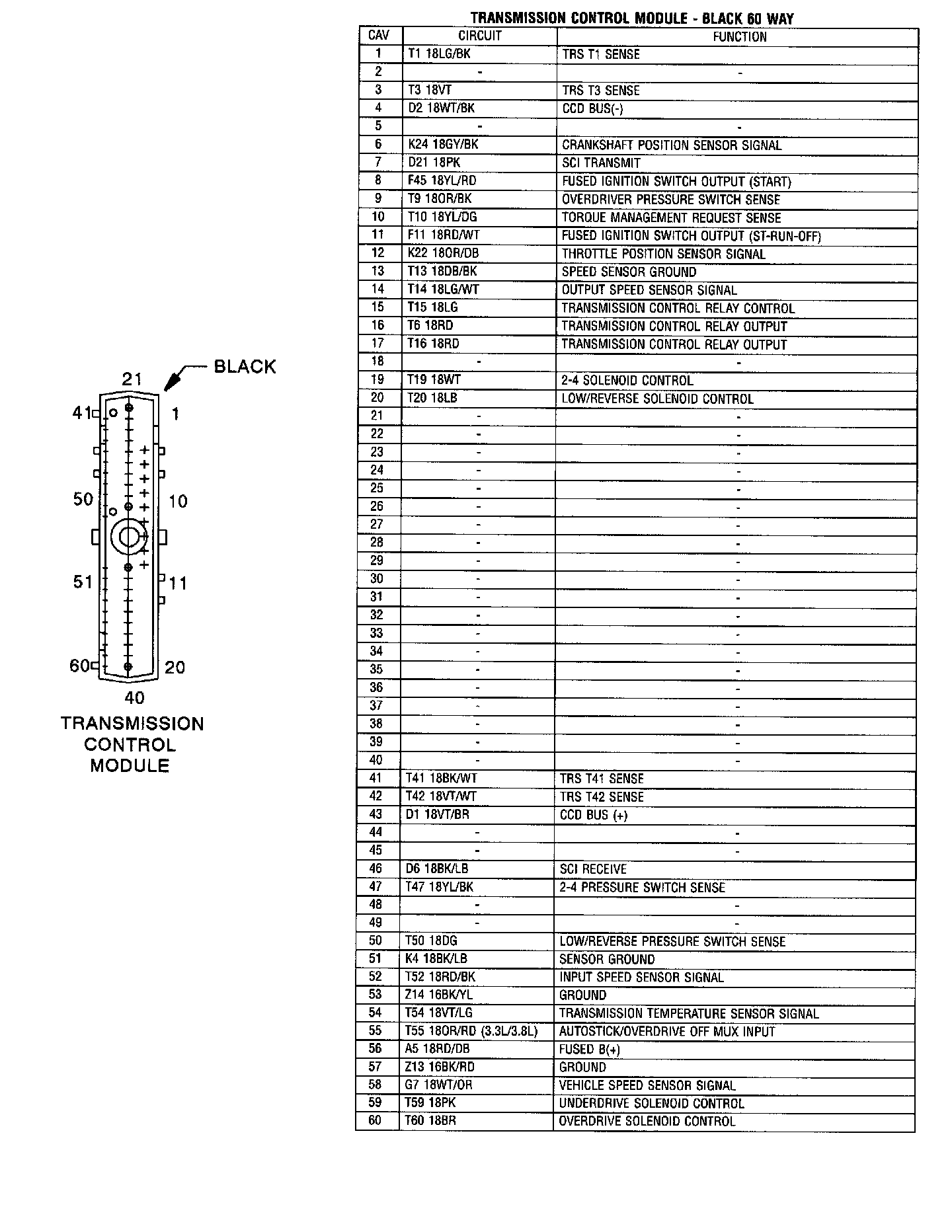

Transmission Control Module:
