Alternator: Service and Repair





REMOVAL

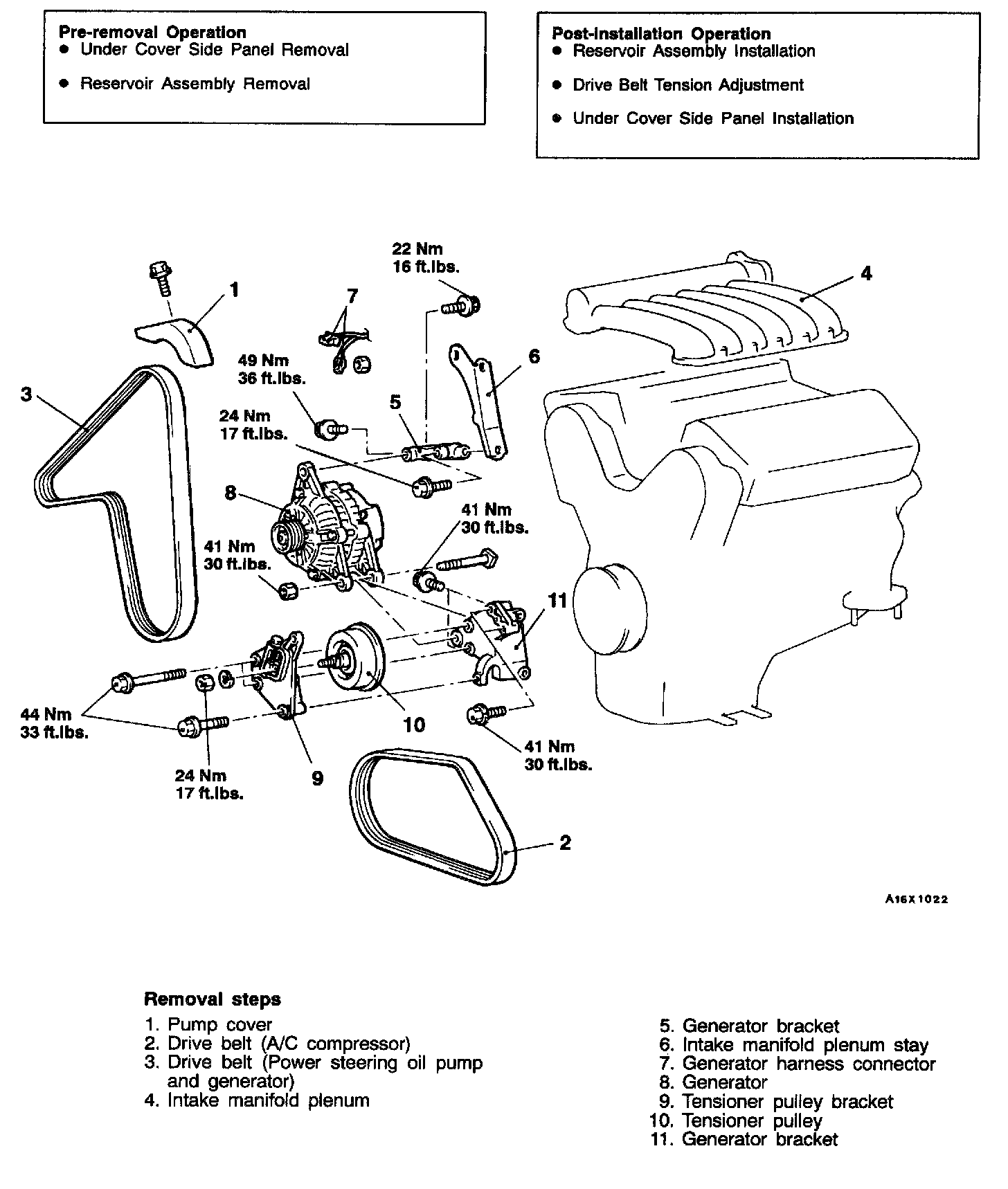

To remove follow the steps listed in the image.

INSTALLATION
To install reverse the steps listed in the image.
