Control Unit Locations - Individual Views
Control Unit Locations - Individual Views

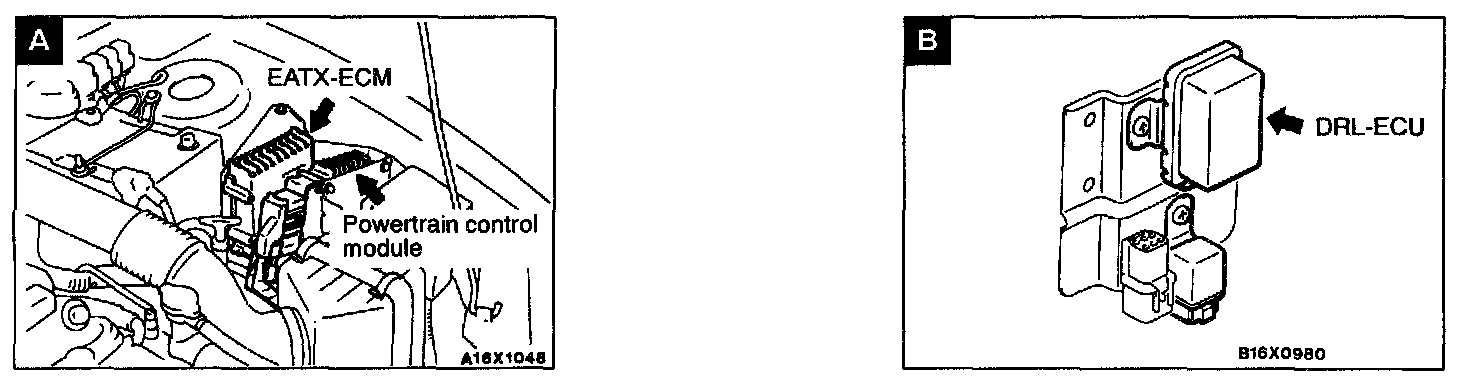

Control Unit Location Views A - B:

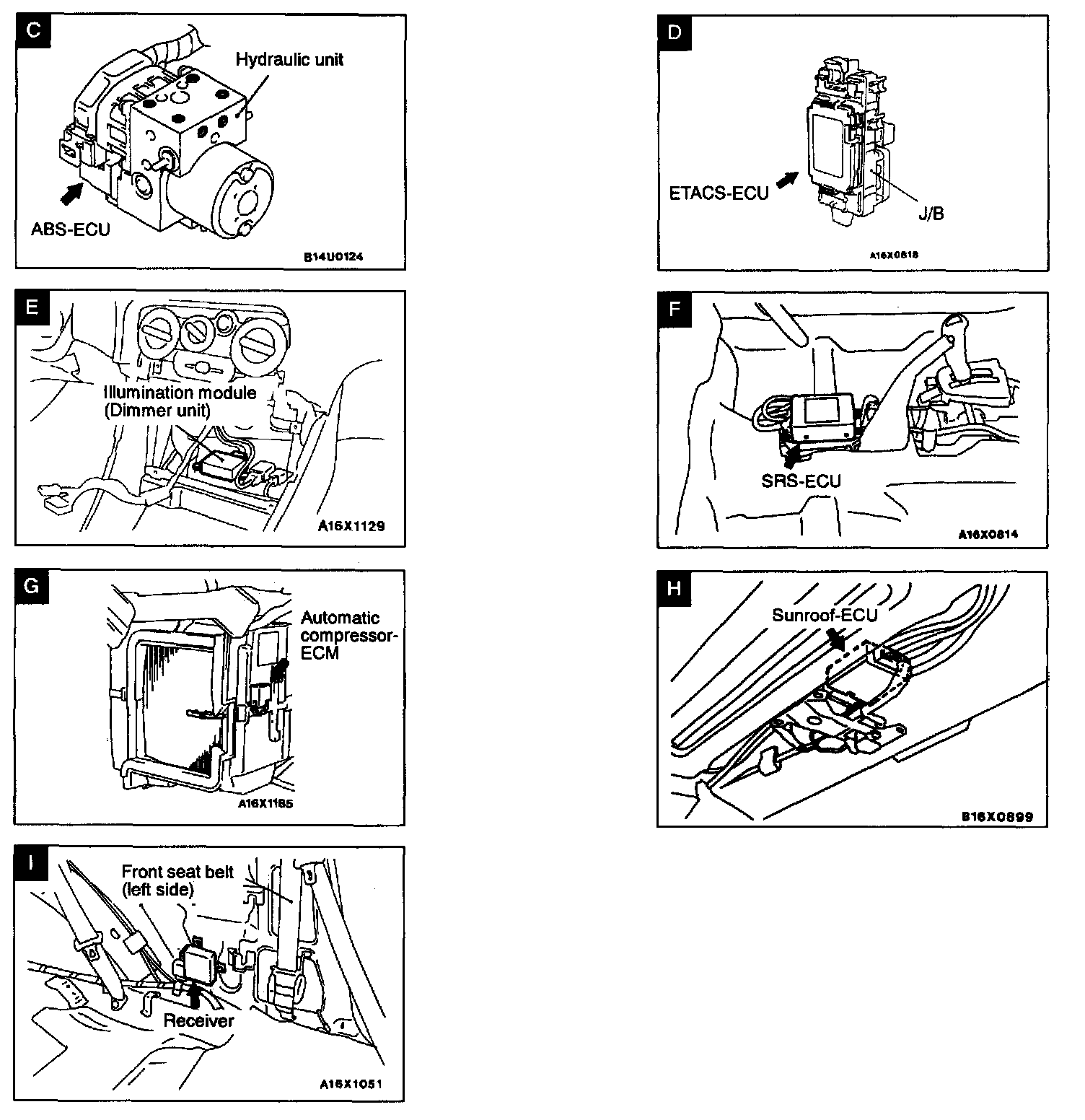

Control Unit Location Views C - I:
