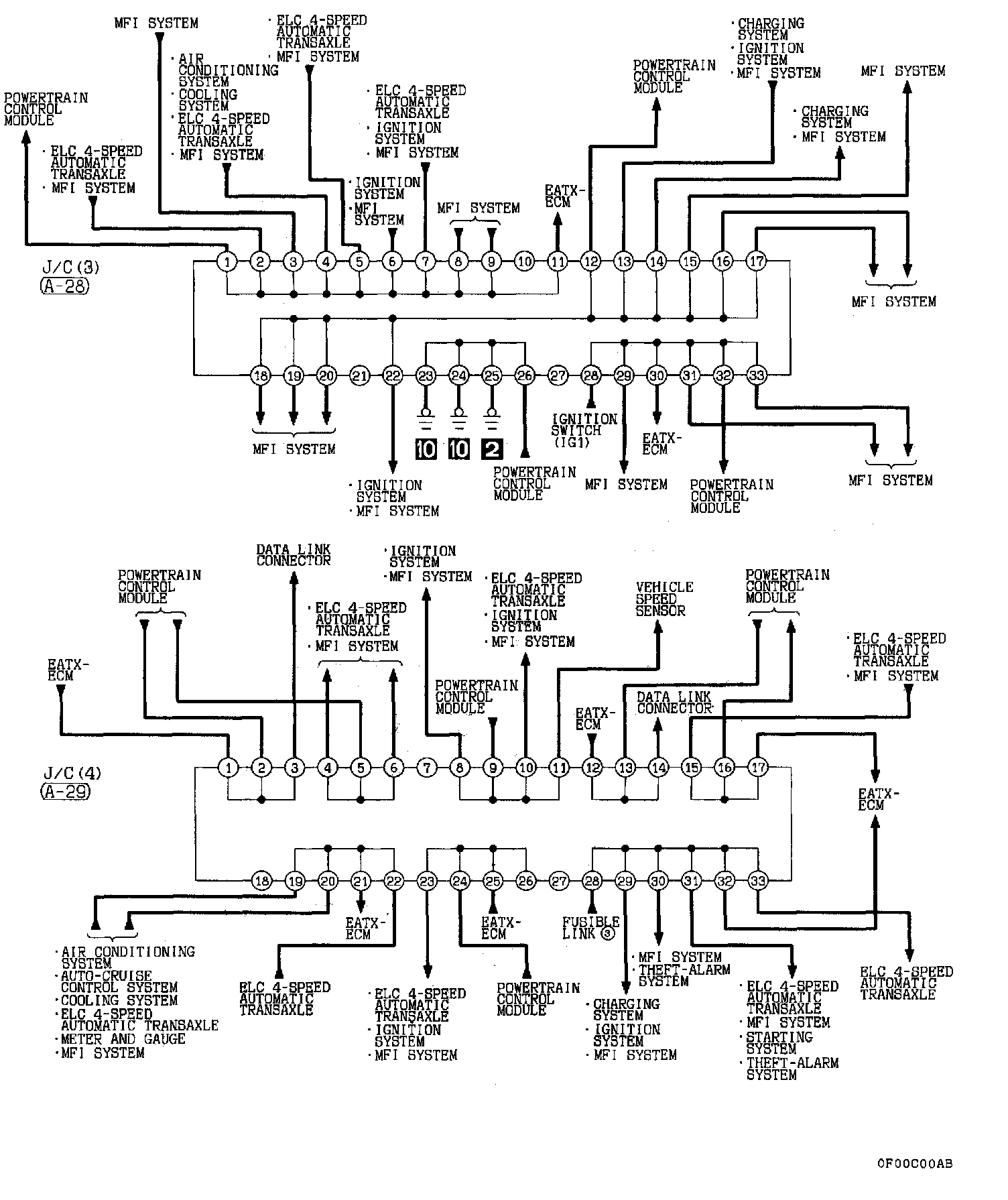

Multiple Junction Connector
Multiple Junction Connector

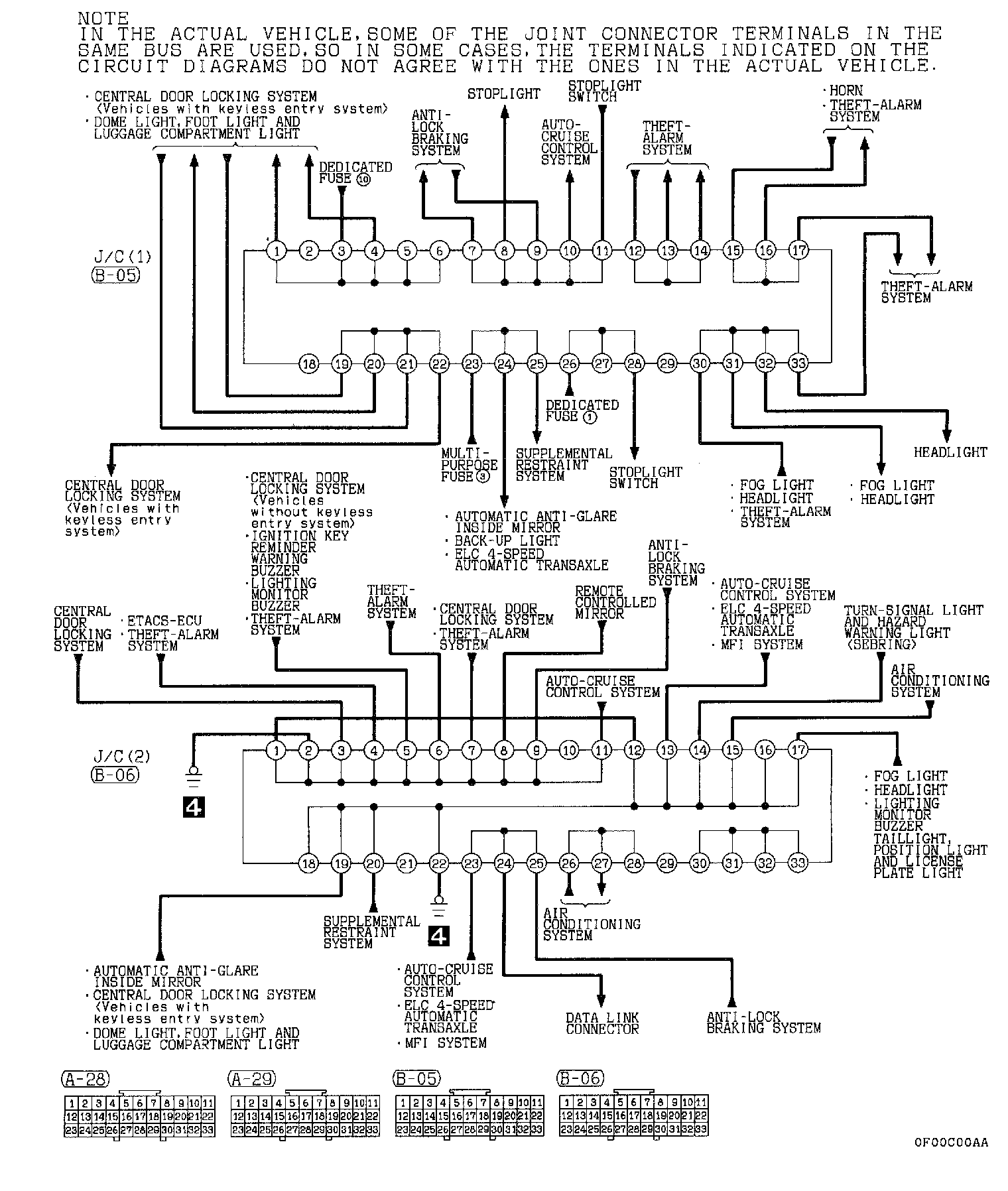

Joint Connector (J/C):
Joint Connector (J/C):
