Home >> Chrysler >> 2000 >> Sebring Convertible V6-2.5L VIN H >> Repair and Diagnosis >> Locations >> Connector Locations >> Figure 15

Figure 15

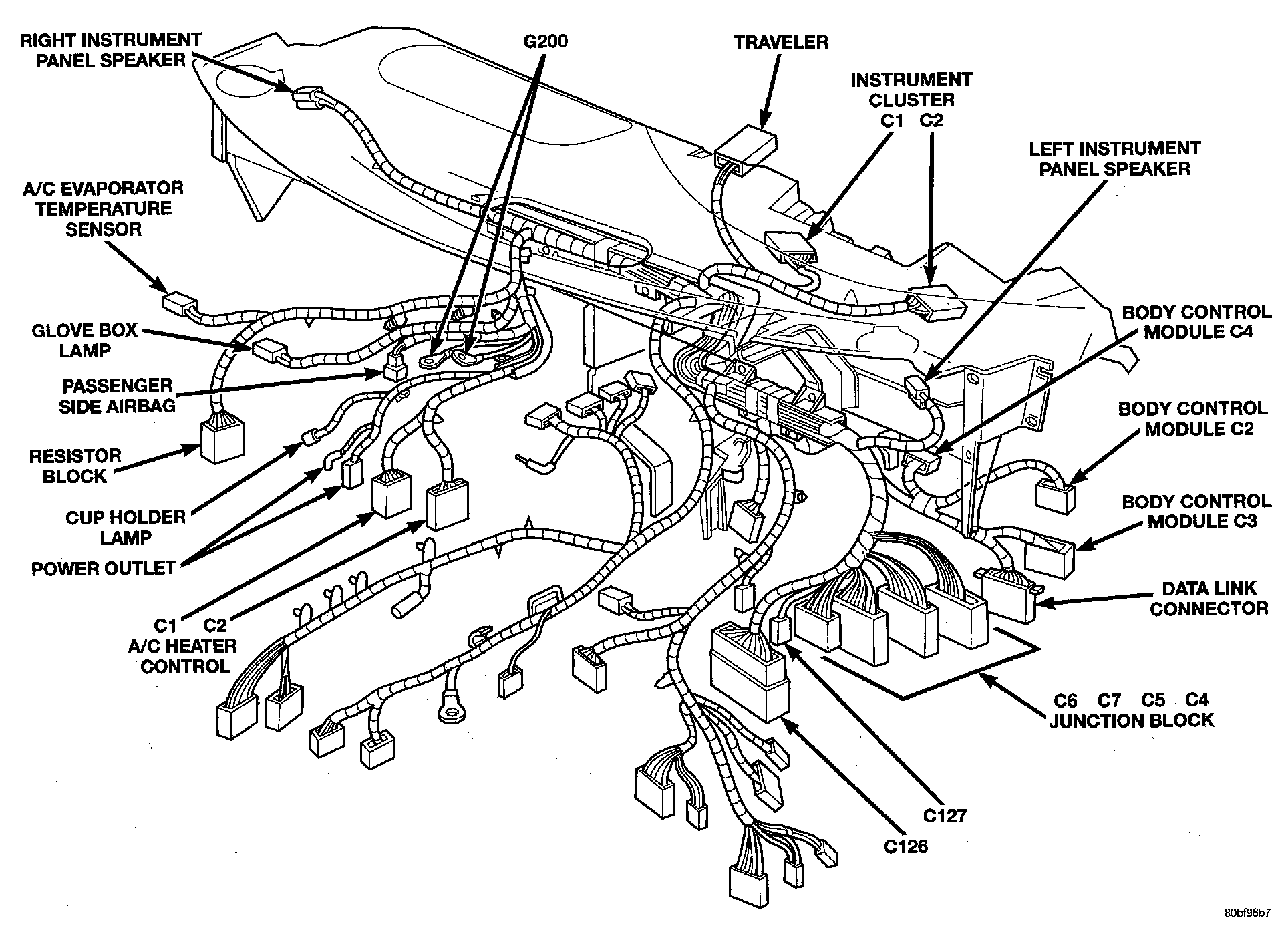

Instrument Panel Connectors:
