Fuse Block




Junction Block - C1:





Junction Block - C2:





Junction Block - C3:





Junction Block - C4:

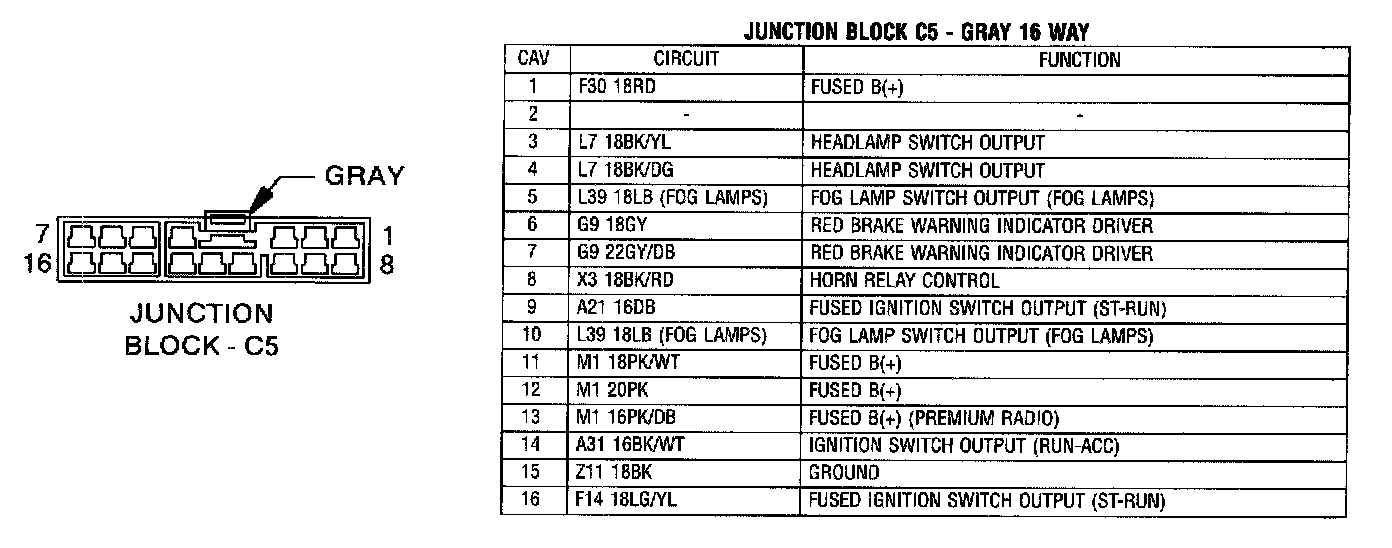

Junction Block - C5:





Junction Block - C6:





Junction Block - C7:





Junction Block - C8:





Junction Block - C9:





Junction Block - C10:
