Home >> Chrysler >> 2000 >> Neon (CANADA) L4-2.0L >> Repair and Diagnosis >> Locations >> Connector Locations >> Figure 11

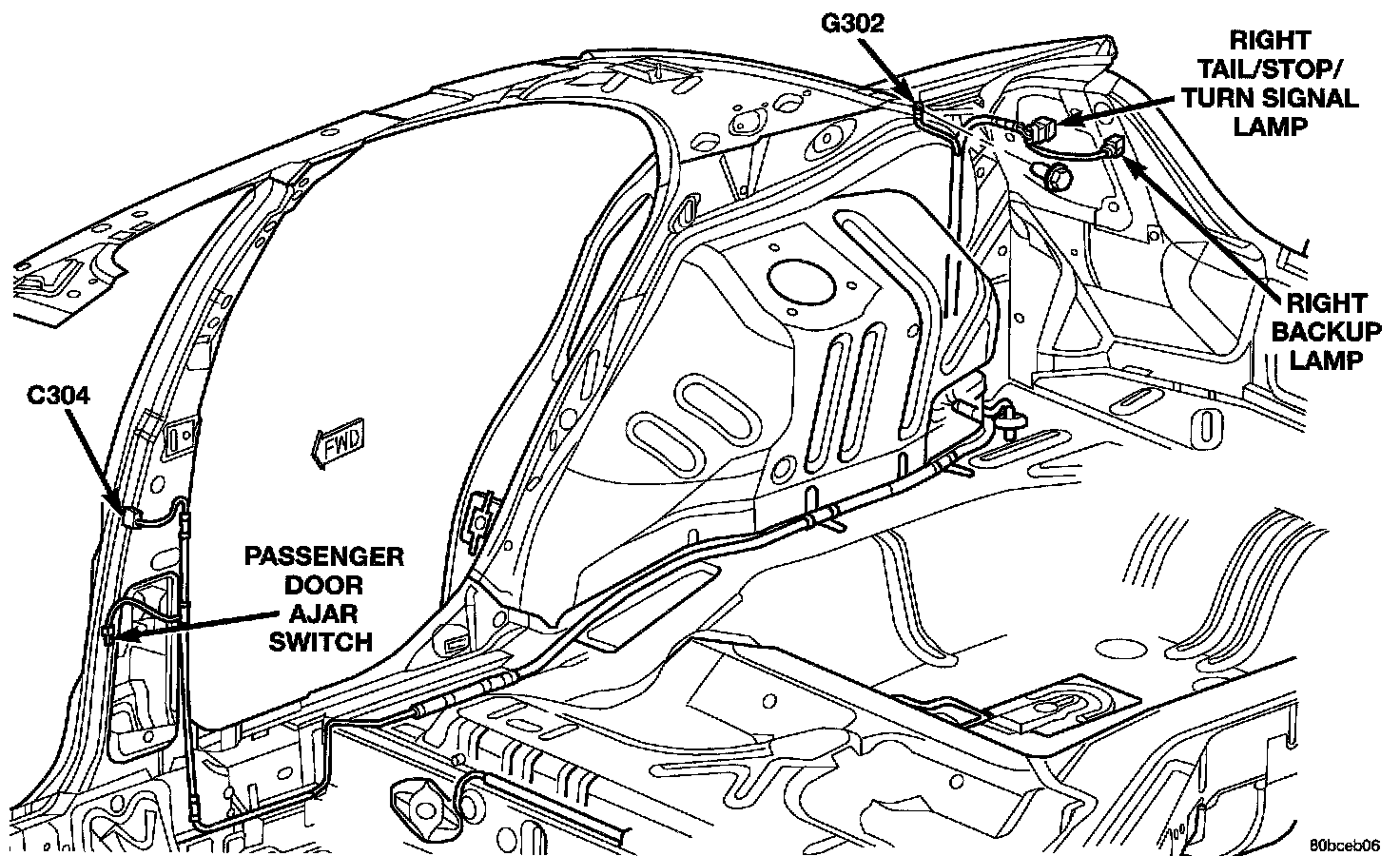

Figure 11

Right Side Body:
