LEMON Manuals
: Even more car manuals for everyone
Home
>>
Chrysler
>>
2000
>>
Intrepid (CANADA) V6-3.2L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>

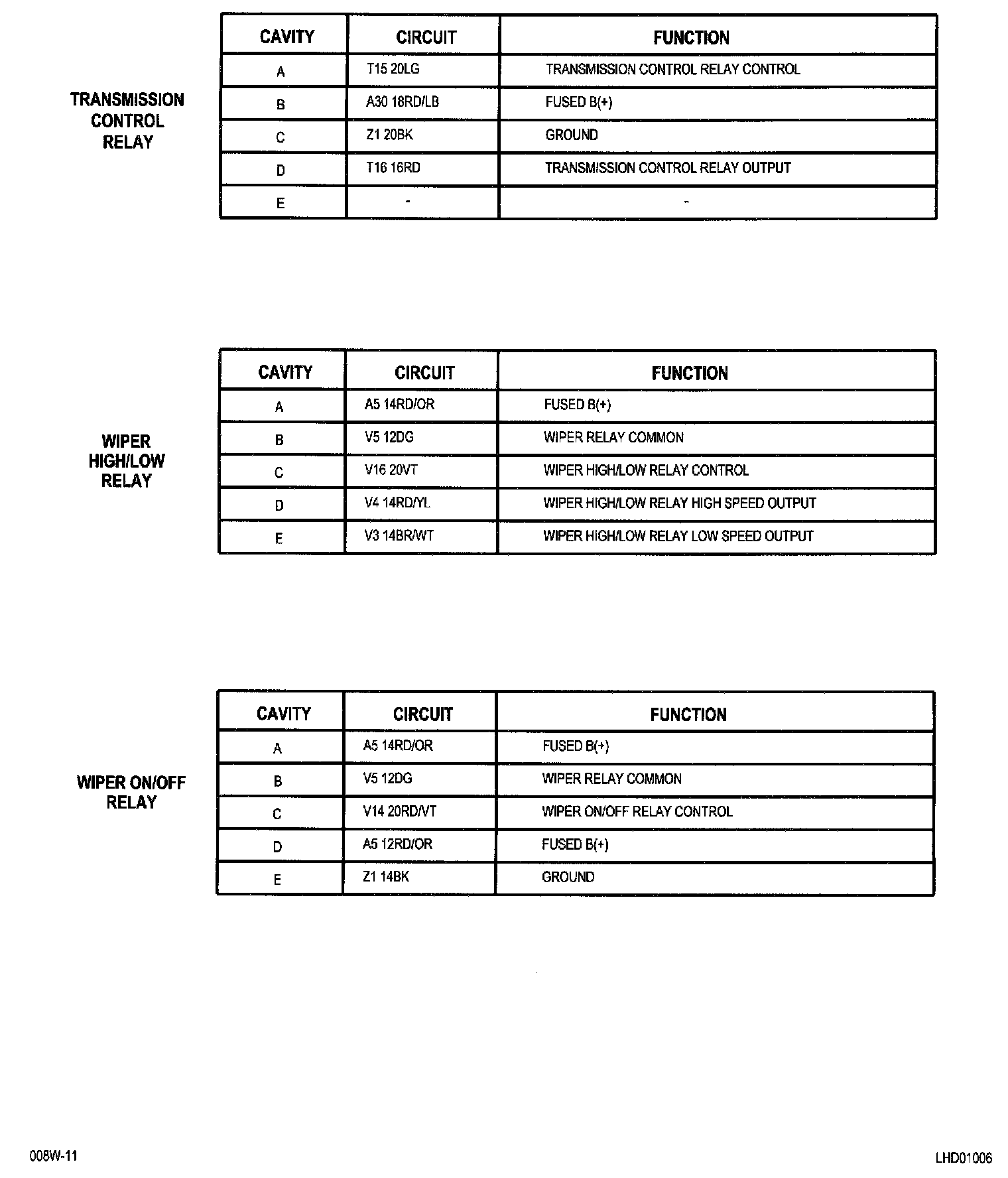

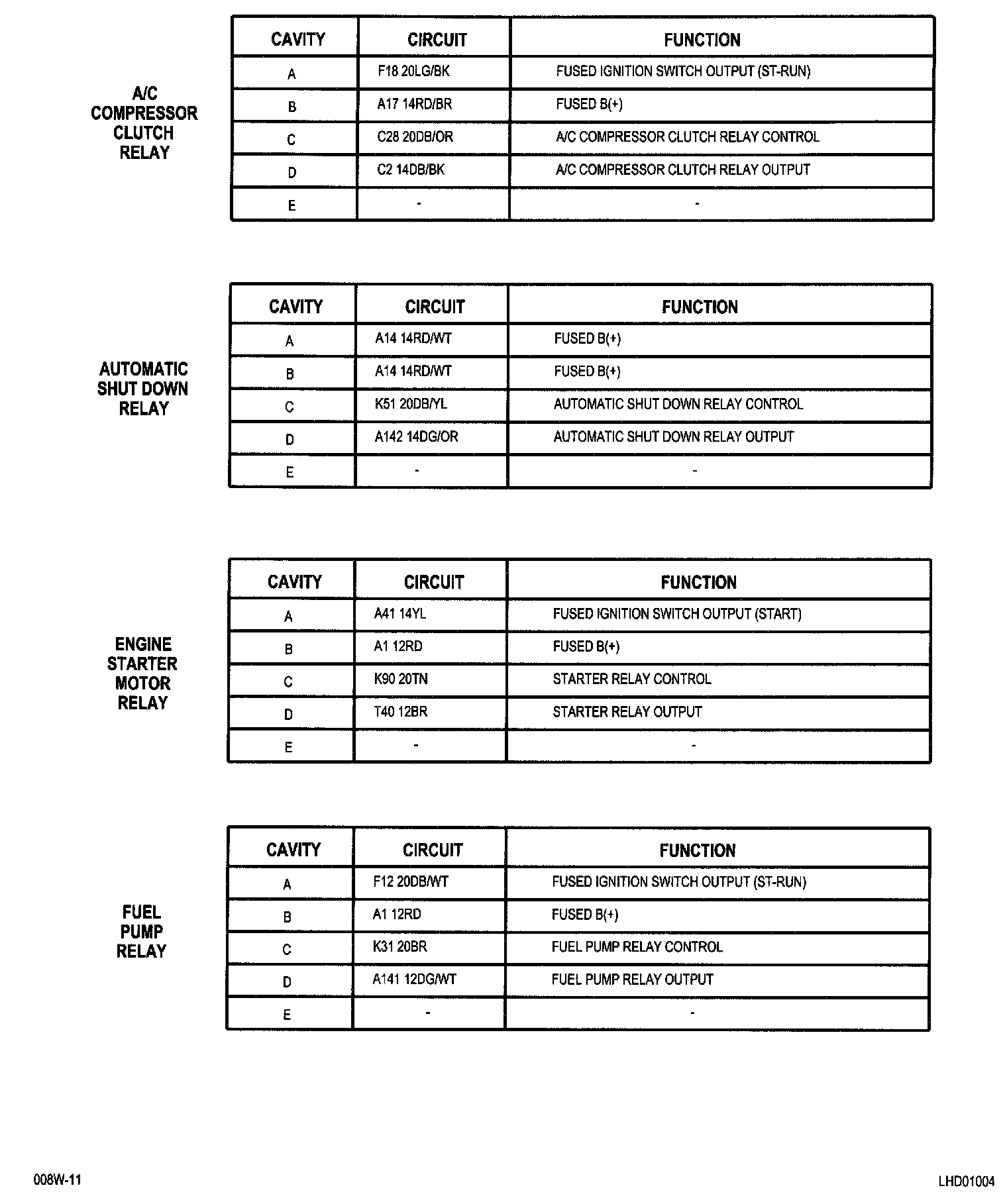

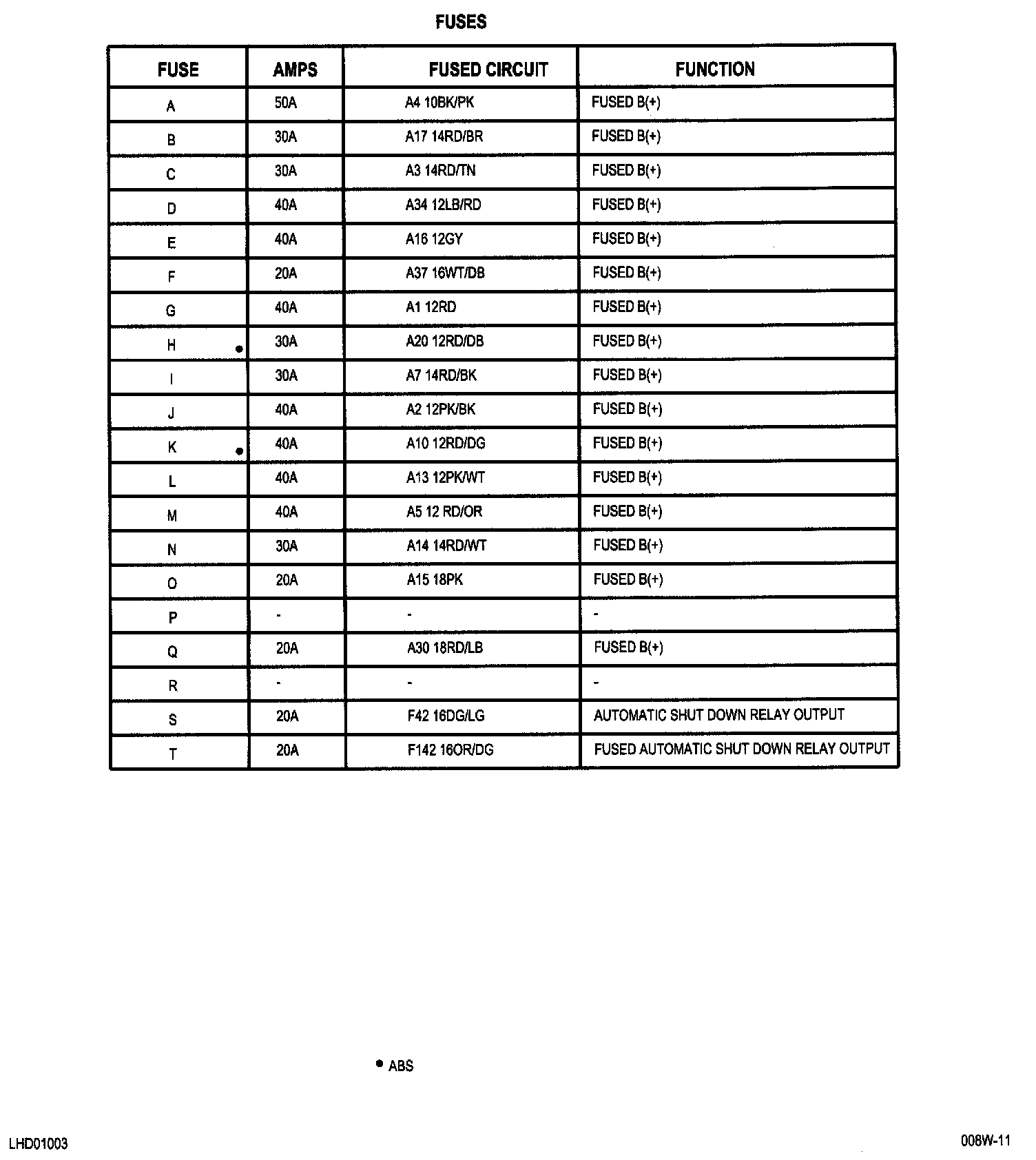

Connector Views
Connector Views
8w-10-2:
8w-10-3:
8w-10-4:
8w-10-5:
8w-10-6:
