Windows
Windows

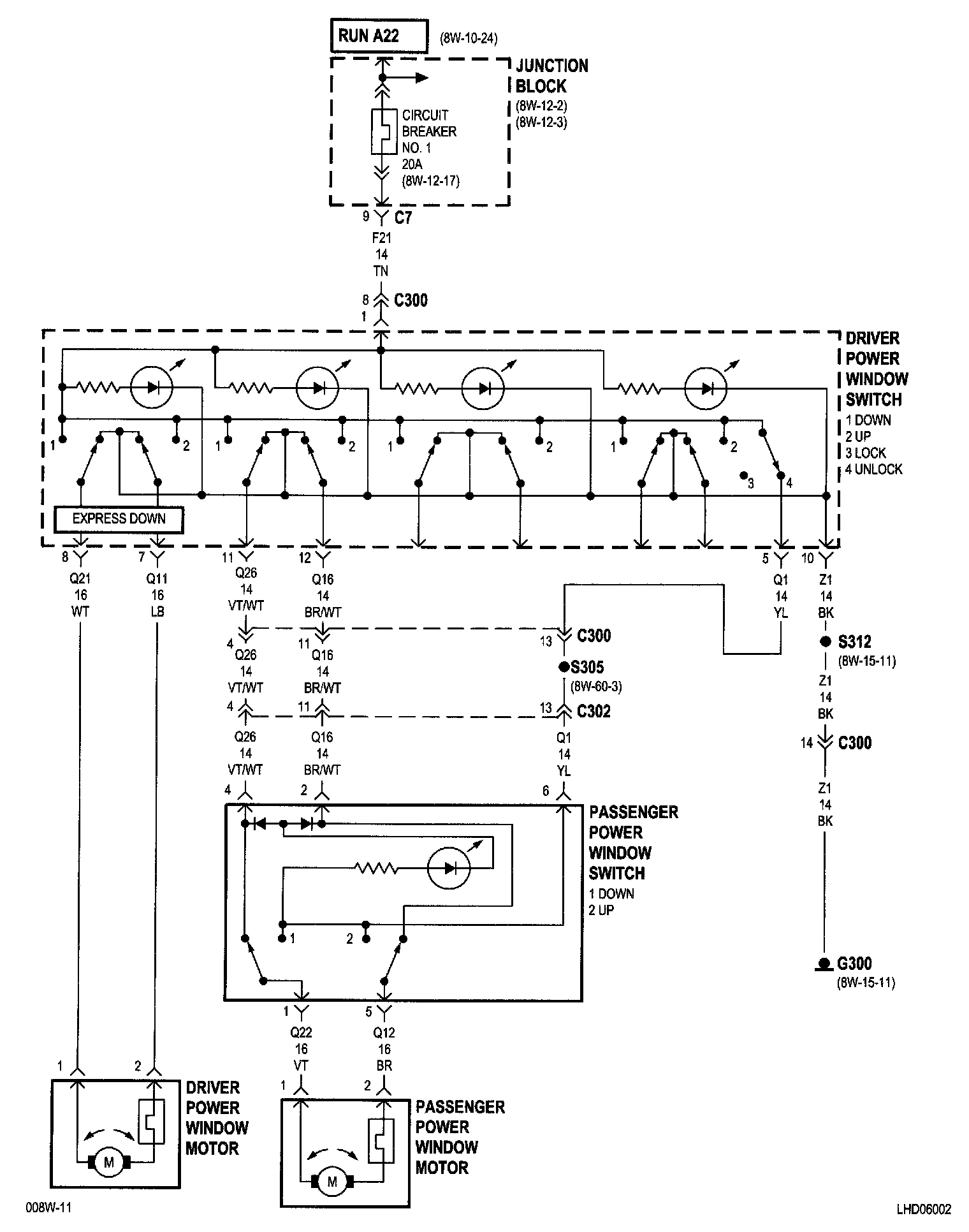

8W-60-2:

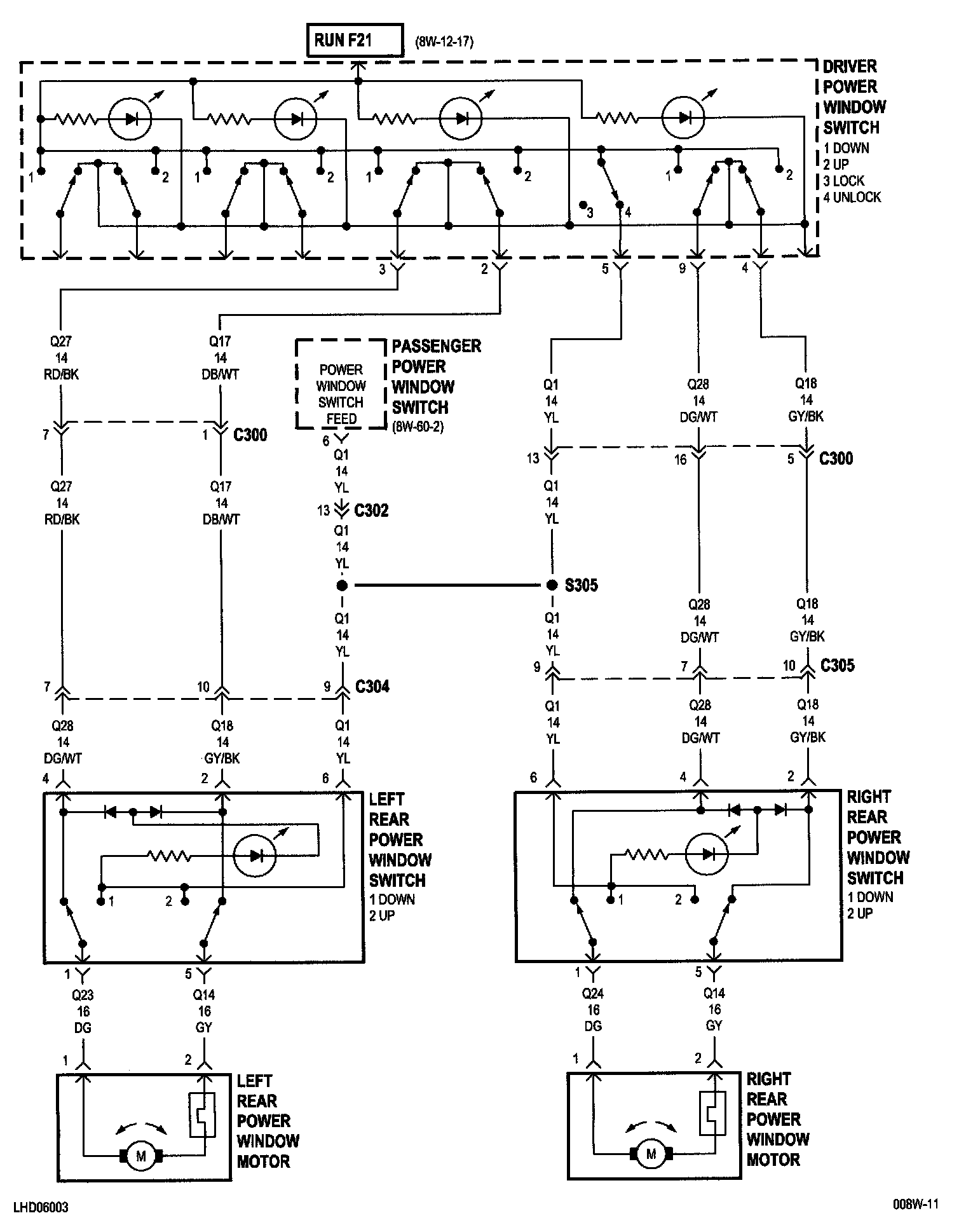

8W-60-3:
NOTE:
To view sheets referred to in these diagrams, see
Complete Body and Chassis Diagrams
.
Electrical Diagrams
