Home
>>
Chrysler
>>
2000
>>
Intrepid (CANADA) V6-3.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>

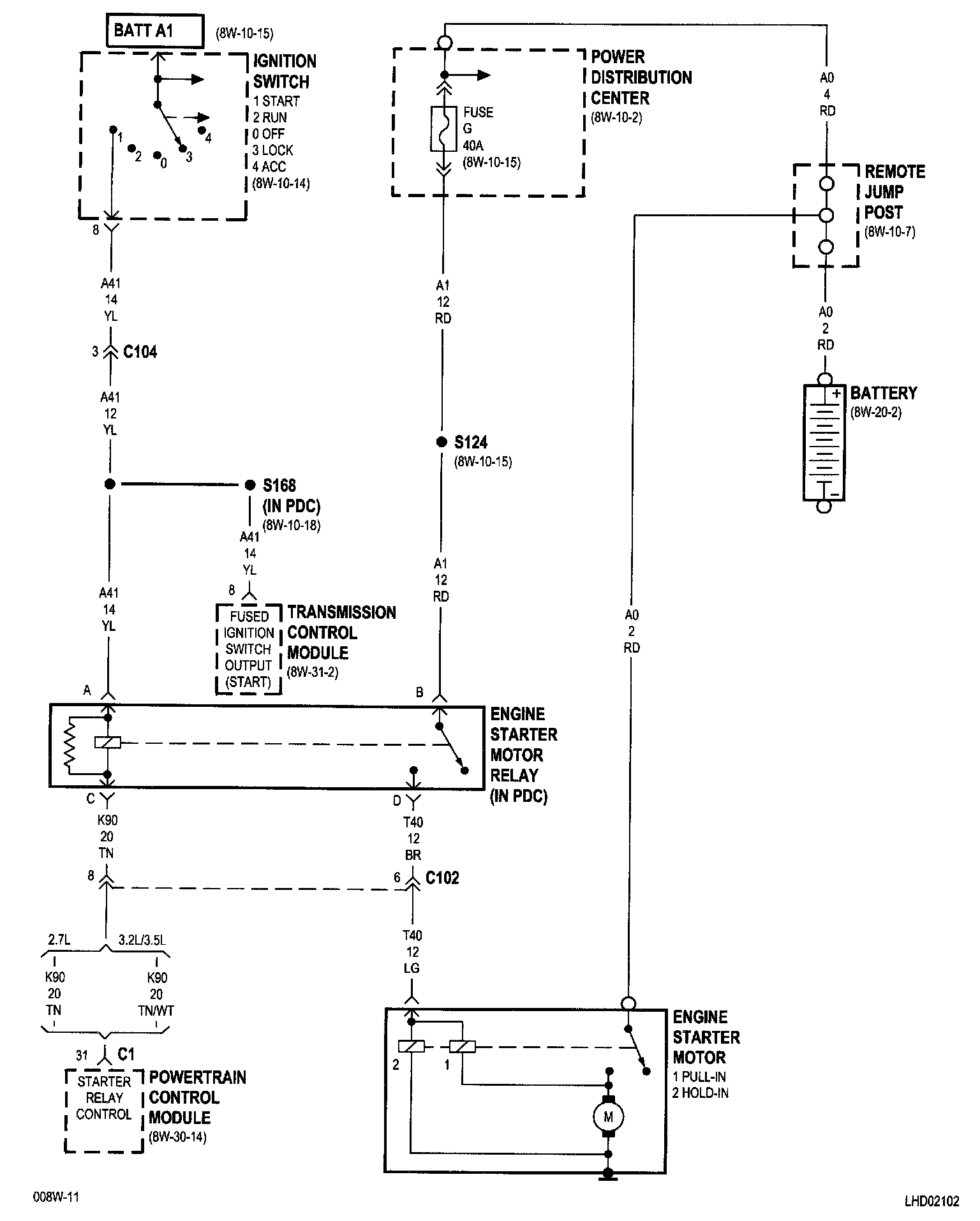

Starting System
Starting System
8W-21-2:
NOTE:
To view sheets referred to in these diagrams, see
Complete Body and Chassis Diagrams
.
Electrical Diagrams
