Home >> Chrysler >> 2000 >> Intrepid (CANADA) V6-3.2L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Keyless Entry

Keyless Entry

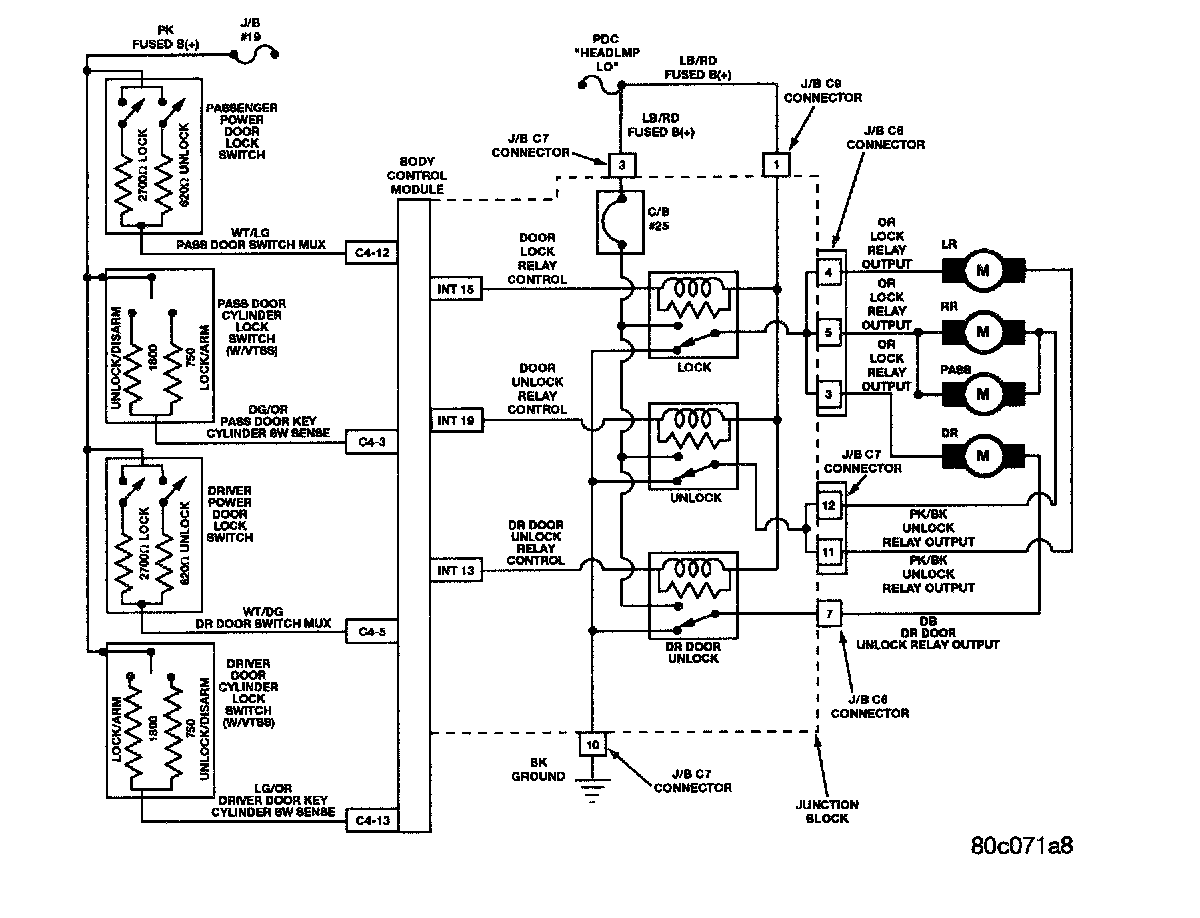

Power Door Locks/RKE:



Power Door Locks/RKE:
