Home >> Chrysler >> 2000 >> Intrepid (CANADA) V6-2.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Door Lock Relay

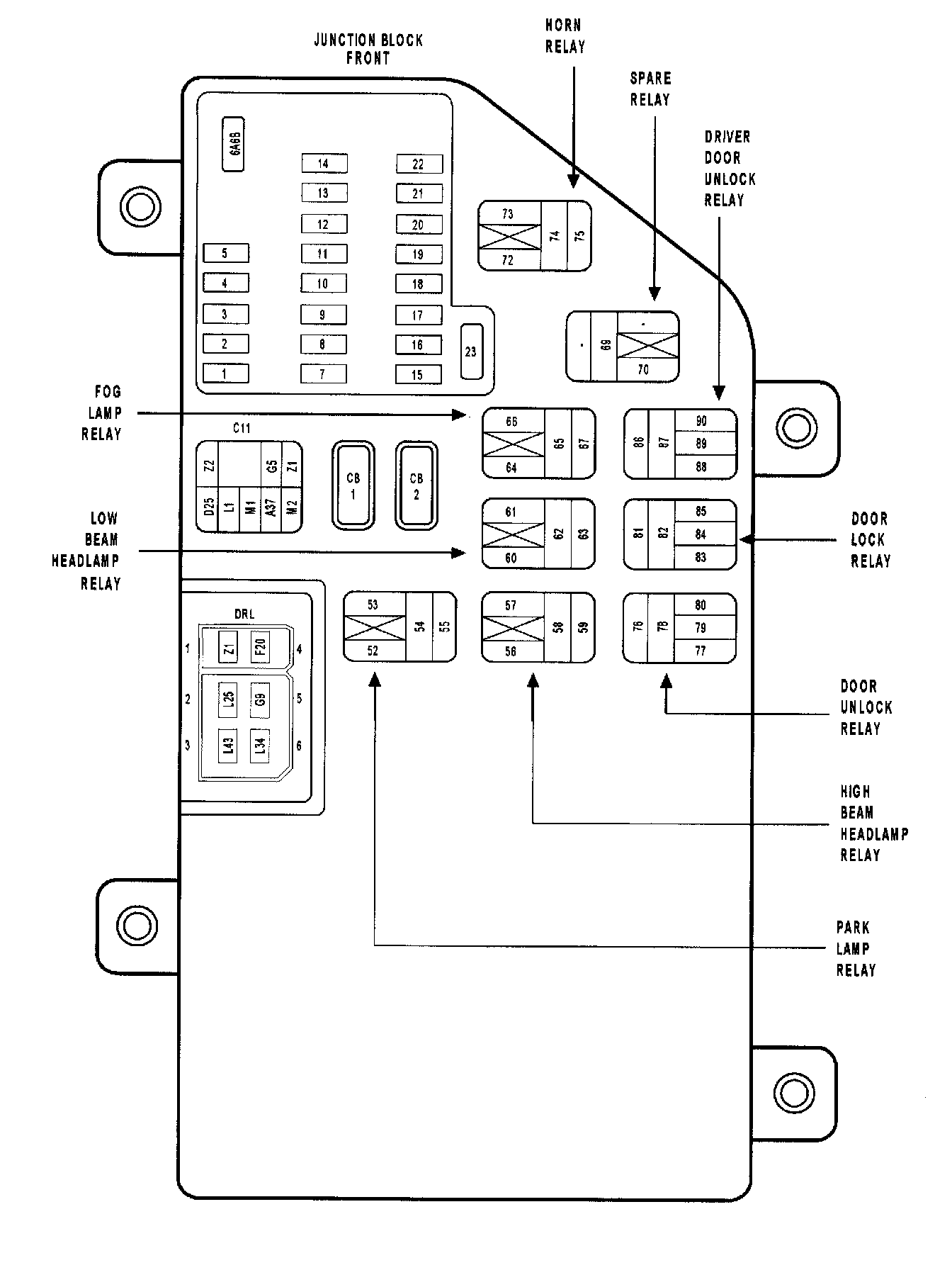

Door Lock Relay

Junction Block Front:




Door Lock Relay:




Door Unlock Relay:




Driver Door Unlock Relay:
