Home
>>
Chrysler
>>
2000
>>
Intrepid (CANADA) V6-2.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Amplifier, Sound System
Amplifier, Sound System

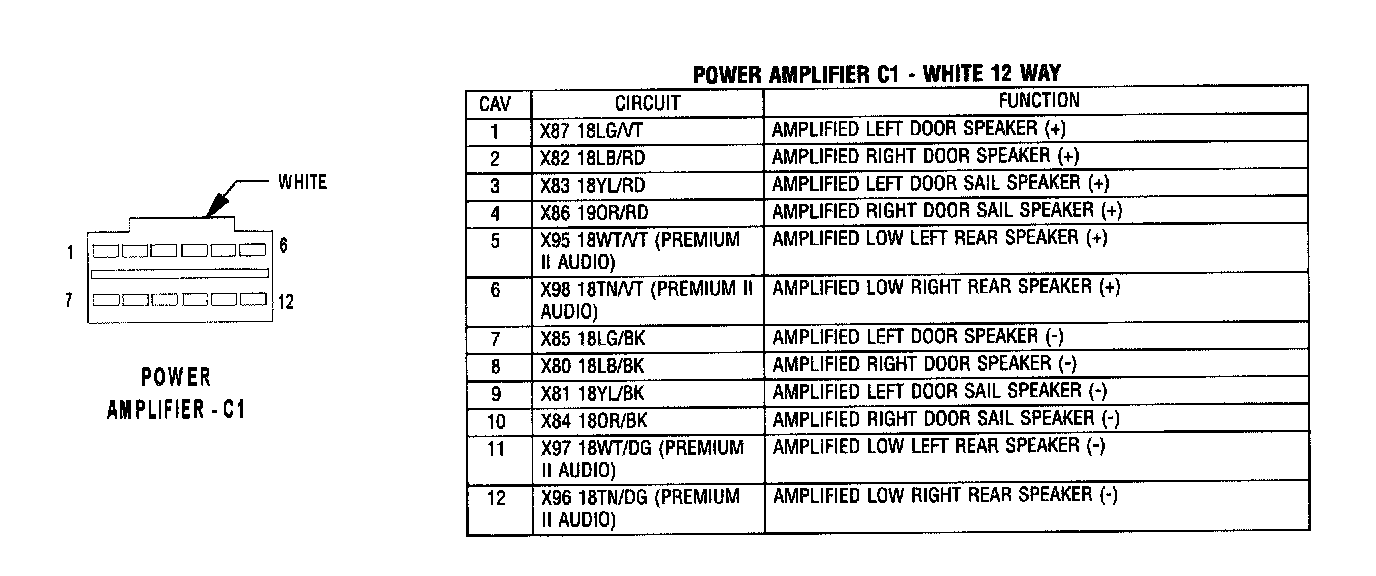

Power Amplifier - C1:

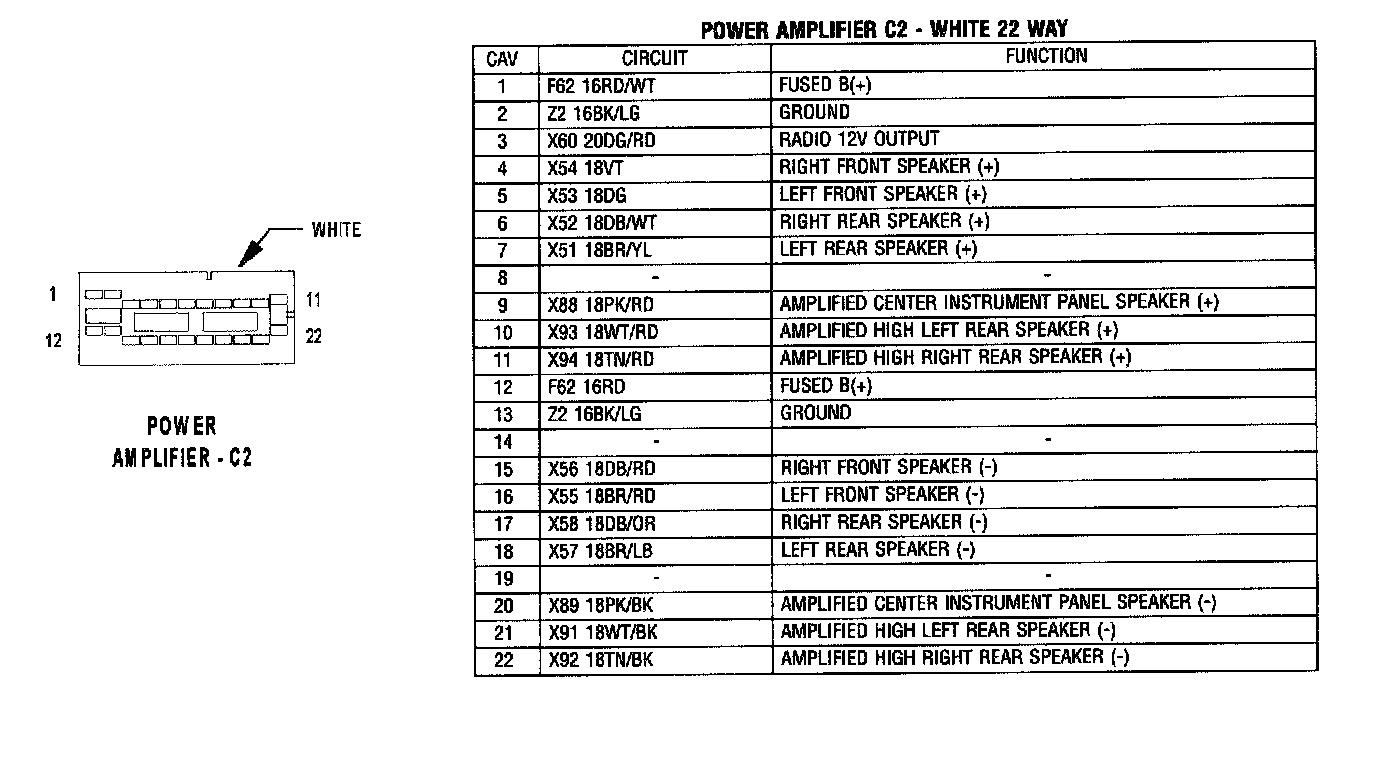

Power Amplifier - C2:
